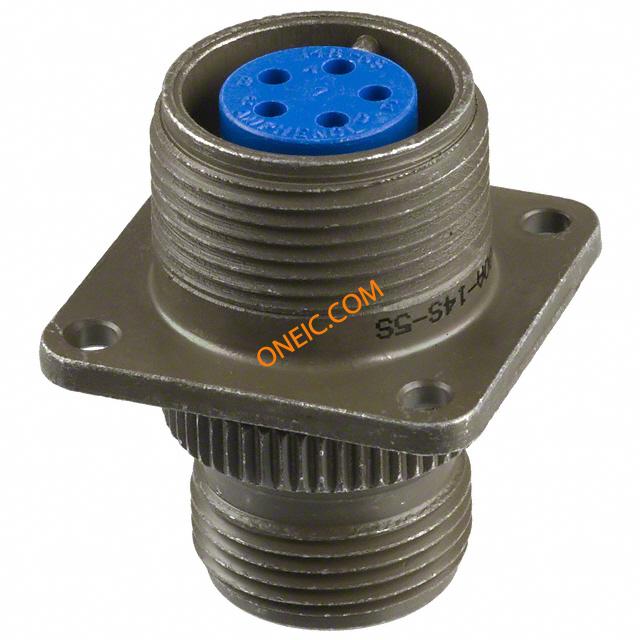

97-3100A-14S-5S
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular SKT 5 POS Solder ST Wall Mount 5 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT WALL MNT 5POS W/SOCK connector;metal circ;wall recept;size 14s;5 #16 solder socket cont;olive drab Circular MIL Spec Connector 3P Sz 14S Wall Mount Socket Recept Solder connector, metal circ, wall recept, size 14s, 5 #16 solder socket cont, olive drab |
| 分类 |
商业参数
| 产品类别 | Circular MIL Spec Connector | 标准包装数量 | Bulk |
合规参数
| RoHS | Contains lead / RoHS non-compliant | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL/CSA | ||
电气参数
| 额定电压 | 200VAC, 250VDC | 最大额定电流 | 13A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 14S | 导线线规 | 16-22 |
| 方向 | N (Normal) | 外壳样式 | wall receptacle |
| 端接方式 | Solder | 触头类型 | socket contacts |
| 安装类型 | Wall Mount | 外壳镀层 | Olive Drab Chromate over Cadmium |
| 行程角度 | Straight | 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Panel |
| 封装形式 | Metal | 外壳材料（壳体） | solid backshell |
| 连接器用途 | Threaded | 插入角度 | 14S-5 |
| 壳体材料 | Aluminum Alloy | 主要材料 | 5015 Commercial |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 触点数 | 5 | 介电材料 | Diallyl-Phthalate |
| 位数 | 5 | 外壳尺寸-插件 | 14S-5 |
| 安装孔直径 | 0.12 " | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
| 典型触点布局 | 5#16 | ||
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | RCP | 系列 | 97 |
| 制造商全称 | 97 Series | 产品子类型 | Receptacles |
| 应用细节 | Commercial | ||
