点击放大查看

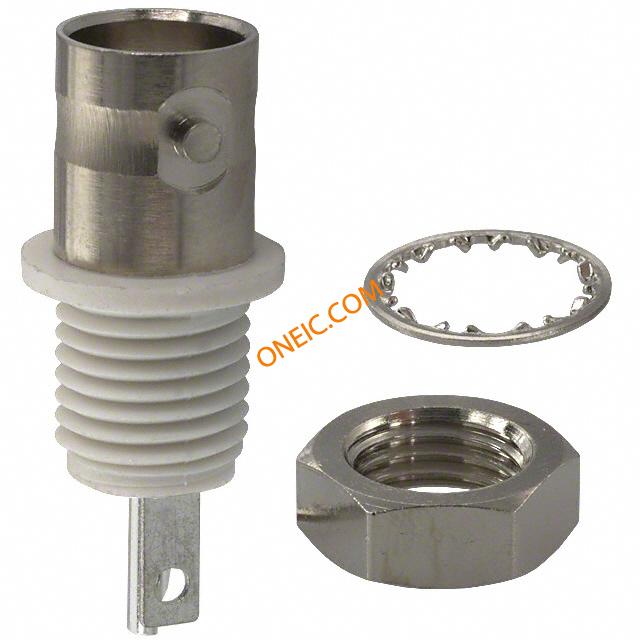

31-10-RFX
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Silver CONN BNC JACK STR 50 OHM SOLDER connector;rf coaxial;bnc commercial blkhd recept;front mount;grnd tab;solder cup Conn BNC RCP 0Hz to 4GHz 50Ohm Solder ST Panel Mount Silver CONNECTOR, BNC, BHD JACK, STR, 50 OHM, SOLDER |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 4GHz |
机械参数
| 重量 | 0.009 | 包装方式 | Bulk |
| 电缆类型 | :RG58, RG59, RG179, RG316 | 本体表面处理 | Nickel |
| 端接方式 | Solder Cup | 重量（g） | 10.40000 |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Panel Mount | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Silver | 紧固类型 | Bayonet Lock |
| 连接器样式 | BNC, RFX | 触头材料 | Beryllium Copper|Phosphor Bronze |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder Cup |
| 介电材料 | Polyamide (PA), Nylon | 中心触点镀层工艺 | Silver |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | :Straight Bulkhead Jack |
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 产品特性 | Isolated | 连接类型 | Wire |
| 射频系列/标准 | 031-10-RFX | ||
环境参数
| 工作温度 | -55°C ~ 85°C | ||
文档与媒体
相关型号
31-10152-RFX
Amphenol RF
RF Connectors GROUNDING LUG BNC GROUNDING LUG hardware;rf coaxial;grounding lug;bnc inside panel on bulkhead receptacle RF Connector Accessories GROUNDING LUG Connector Accessories BNC Grounding Lug GROUNDING LUG, 75 OHM BNC COAXIAL CONN

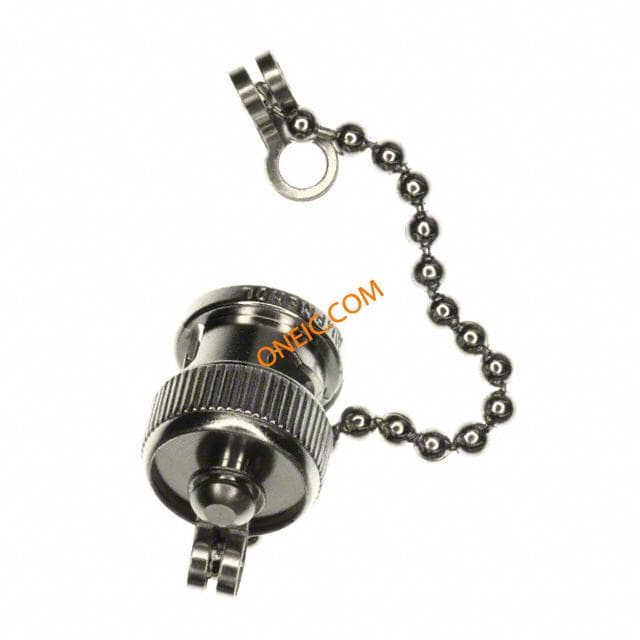

031-6-RFX
amphenol
Connector Accessories Cap and Chain Nickel Finish CONN BNC CAP & CHAIN
031-10-RFXG1
amphenol
Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount MINIATURE QUICK CONNECT/ DISCONNECT RF CONNECTOR. CONN BNC JACK STR 50 OHM SOLDER Connector; RF; BNC; Straight; Panel-Solder Jack; Bulkhead Mnt; 50 Ohm

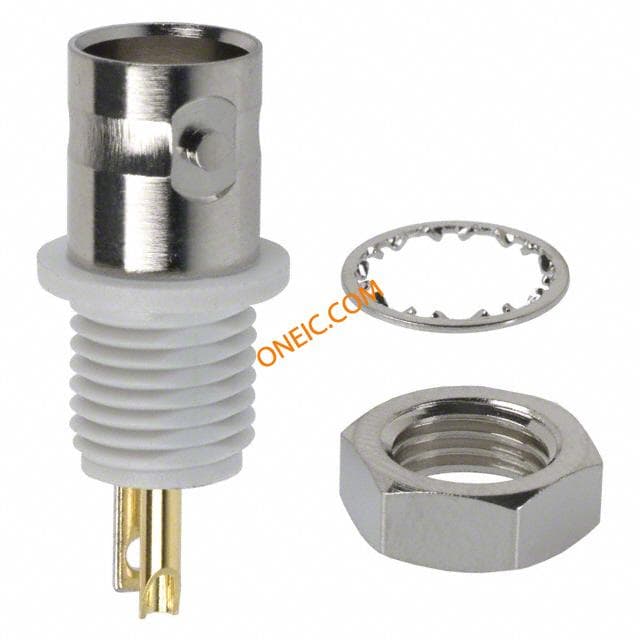

112431
