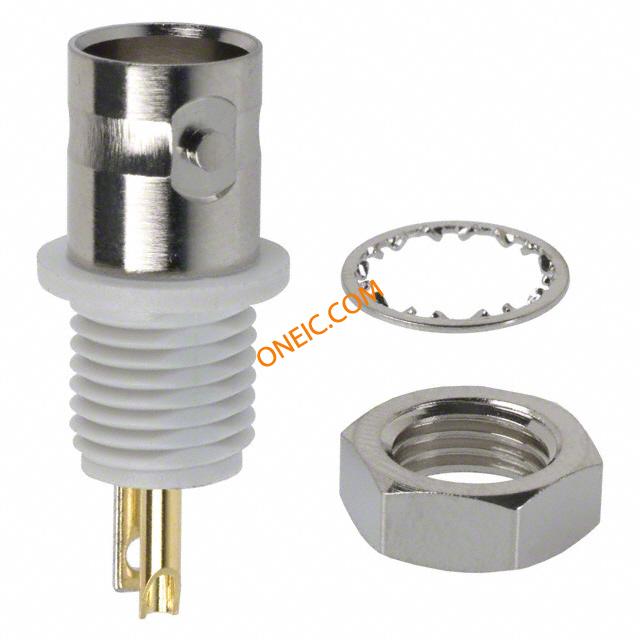

112431
| 制造商 | |
| 描述 | RF コネクタ BNC BULKHEAD RECPT ISO 50 OHM-PNL/THK Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Pot ST Panel Mount Gold CONN BNC JACK STR 50 OHM SOLDER connector;rf coaxial;bnc bulkhead receptacle isolated jack;solder pot terminal RF Connectors / Coaxial Connectors BNC BULKHEAD RECPT ISO 50 OHM-PNL/THK RF/COAXIAL BNC BHD JACK STR 50OHM SOLDER RF COAXIAL, BNC, JACK, BULKHEAD, 50OHM connector, rf coaxial, bnc bulkhead receptacle isolated jack, solder pot terminal |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1048 |
| 零件号别名 | 319-0042 99H4389 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 抗辐射加固 | No |
电气参数
| 频率 | 0 to 4 | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Bayonet |
| 最大频率 | 4GHz | ||
机械参数
| 深度 | 12.7 mm | 高度 | 12.7 mm |
| 重量 | 0.257500 oz | 直径 | 12.7 mm |
| 包装方式 | Bulk | 电缆类型 | :- |
| 本体表面处理 | Nickel | 方向 | Straight |
| 端接方式 | Solder Pot | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Panel Mount |
| 行程角度 | Straight | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 安装样式 | Panel |
| 壳体镀层 | Nickel | 连接器样式 | BNC |
| 连接器用途 | Bayonet | 触头材料 | Phosphor Bronze |
| 壳体材料 | Brass | 总长度 | 30 mm |
| 主要材料 | BNC | 端接样式 | Solder Cup |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder Cup |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | Straight | 第一连接器安装类型 | :Panel |
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 系列 | :BNC | 产品特性 | Isolated |
| 极性 | Standard | 连接类型 | Coaxial Cable |
| 射频系列/标准 | BNC | 应用细节 | Commercial |
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
