点击放大查看

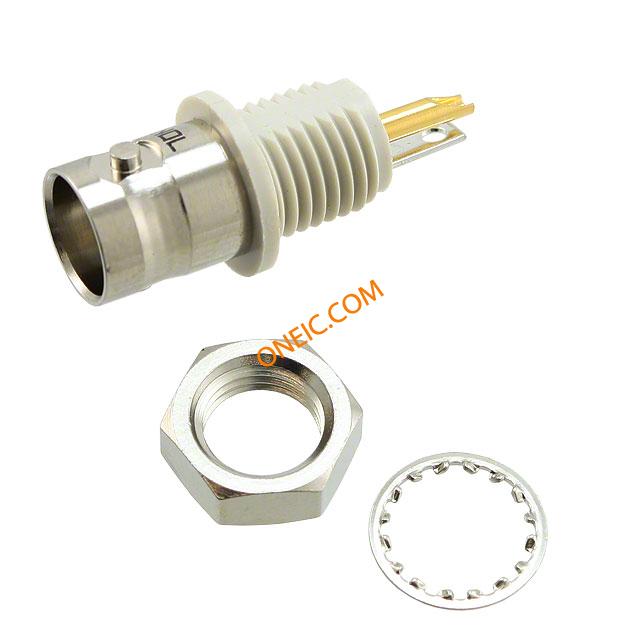

031-10-RFXG1
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount MINIATURE QUICK CONNECT/ DISCONNECT RF CONNECTOR. CONN BNC JACK STR 50 OHM SOLDER Connector; RF; BNC; Straight; Panel-Solder Jack; Bulkhead Mnt; 50 Ohm |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 4GHz |
| 阻抗（最大）（Zzt） | 50 Ohm | 连接器类型 - 电压输入 | Solder Cup |
机械参数
| 包装方式 | Bulk | 本体表面处理 | Nickel |
| 端接方式 | Solder Cup | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Panel Mount |
| 连接器类型 | Jack, Female Socket | 紧固类型 | Bayonet Lock |
| 连接器样式 | BNC, RFX | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder Cup | 介电材料 | Polyamide (PA), Nylon |
| 中心触点镀层工艺 | Gold | 外部壳体颜色 | Silver |
| 中心触点材料 | Phosphor Bronze | ||
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 产品特性 | Isolated | 主要用途 | Isolated |
| 连接类型 | Wire | 输出配置 | Panel Mount, Bulkhead - Rear Side Nut |
环境参数
| 防护等级 | Solder | 工作温度 | -55°C ~ 85°C |
