31-70008
| 制造商 | |
| 描述 | RF Connectors STRT PLG RG-59/62 8241 8263 8279 connector;rf coaxial;bnc str plug;crimp-crimp;rg59;62(see notes);75 ohm-t1 RF Connectors / Coaxial Connectors STRT PLG RG-59/62 8241 8263 8279 Conn BNC PL 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 031-70008 713-8608 89F2858 |
| 产品类别 | RF Connectors | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 85366910 |
电气参数
| 阻抗 | 75 Ohms | 耦合系数 | Bayonet |
| 最大频率 | 4 GHz | ||
机械参数
| 重量 | 0.009 | 包装方式 | Bulk |
| 电缆类型 | RG-59, RG-62, RG-140, RG-210, Belden 8241, Belden 8263, Belden 8279, Belden 9209 | 本体表面处理 | Nickel |
| 方向 | Straight | 重量（g） | 10.00000 |
| 基体材料 | Brass | 连接器类型 | Cable |
| 接触镀层 | Gold | 触头材料 | Brass |
| 端接样式 | Crimp | 接触件端接 | Crimp |
| 供应商器件封装 | Straight | ||
产品信息
| 连接器性别 | Plug (Male) | 极性 | Standard |
| 射频系列/标准 | BNC | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
文档与媒体
相关型号

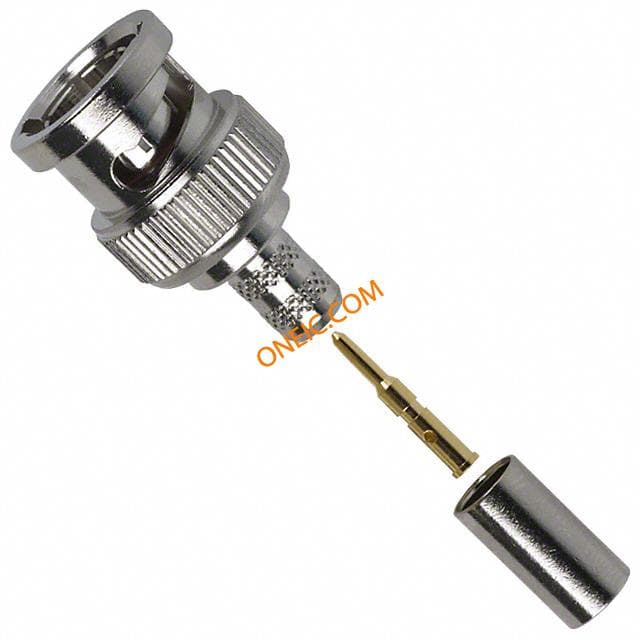

112119
