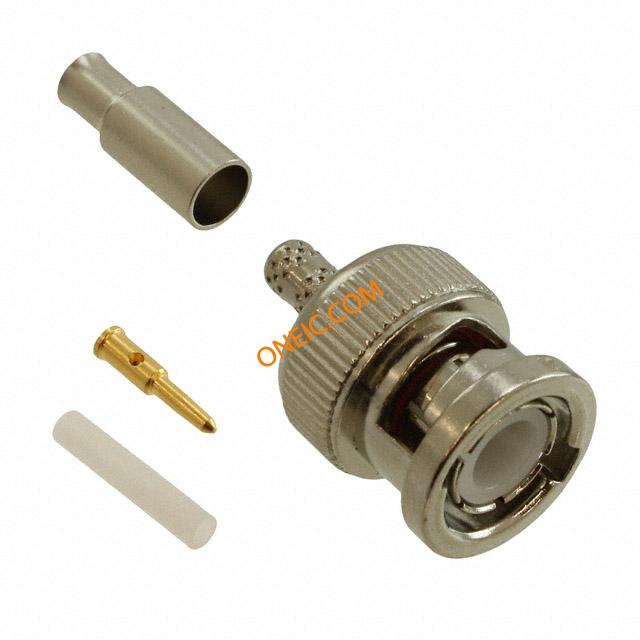

31-315-RFX
| 制造商 | |
| 描述 | RF Connectors SRT CRMP PLG 174 316 CONN BNC PLUG STR 50 OHM CRIMP connector;rf coaxial;bnc commercial str plug;crimp-crimp;rg174;188;316;50 ohm RF Connectors / Coaxial Connectors SRT CRMP PLG 174 316 Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold RF/COAXIAL, BNC PLUG, STR, 50 OHM, CRIMP |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 031-315-RFX 16R0577 713-9015 93F1416 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85366910 |
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 耦合系数 | Bayonet | 最大频率 | 4GHz |
机械参数
| 重量 | 0.337572 oz | 包装方式 | Bulk |
| 电缆类型 | RG-174/U, RG-188/U, RG-316/U | 本体表面处理 | Nickel |
| 电缆组 | RG-174, 188A, 316 | 方向 | Straight |
| 重量（g） | 10.00000 | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 连接器样式 | BNC, RFX |
| 触头材料 | Brass | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polyoxymethylene (POM) Acetal | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | Straight |
产品信息
| 连接器性别 | Plug | 极性 | Standard |
| 射频系列/标准 | BNC | ||
环境参数
| 插拔次数 | 500 | 工作温度 | -55°C ~ 85°C |
文档与媒体
相关型号
CTL-2
amphenol
Quick Crimp Tool For Bnc And Tnc Crimp Plugs 2 And3 PC Types Crimpers CRIMP TOOL HEX SZ .178 .324 .068 CRIMP TOOL RG-174, BELDEN 8281 CRIMP TOOL tool, ratcheted hand crimp tool w/die set, cavities: .178, .324, .068 (see notes) Hex crimp tool with dies
31-317
amphenol
Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold connector;rf coaxial;bnc straight jack;crimp-crimp;for rg174;188;316 cable;50ohm RF Connectors / Coaxial Connectors SRT JCK RG316/174

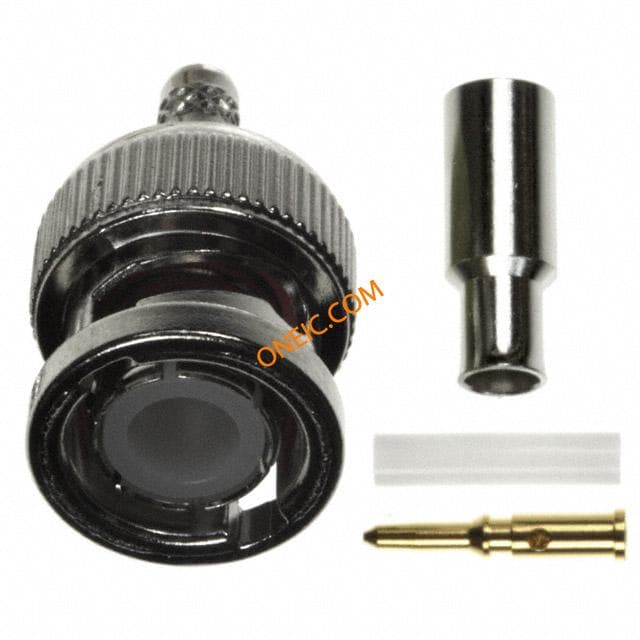

112134
