| 制造商 | |
| 描述 | RF Connectors BNC ST PLUG 316/174 Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 50 OHM CRIMP connector;rf coaxial;bnc str crimp plug;captive cont;rg174;316;LMR100;50 ohm RF Connectors / Coaxial Connectors BNC ST PLUG 316/174 RF/COAXIAL, BNC PLUG, STR, 50 OHM, CRIMP connector, rf coaxial, bnc str crimp plug, captive cont, rg174, 316, LMR100, 50 ohm |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1006 |
| 零件号别名 | 319-0006 87H5613 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 4G | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Bayonet |
| 最大频率 | 4GHz | ||
机械参数
| 重量 | 0.336514 oz | 直径 | 14.5 |
| 包装方式 | Bulk | 电缆类型 | RG-174, RG-188A, RG-316, Belden 7805A |
| 本体表面处理 | Nickel | 电缆组 | RG-174, 316, LMR-100 |
| 方向 | Straight | 端接方式 | Crimp |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 外壳涂层 | Nickel |
| 壳体镀层 | Nickel | 连接器样式 | BNC |
| 连接器用途 | Bayonet | 触头材料 | Brass |
| 壳体材料 | Brass | 总长度 | 25 |
| 主要材料 | BNC | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polyoxymethylene (POM) Acetal | 绝缘材料 - 类型 | Delrin |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | BNC | 连接器性别 | PL |
| 产品特性 | Captivated Contact | 极性 | Standard |
| 连接类型 | Flexible Cable | 射频系列/标准 | BNC |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 40 C to + 155 C |
文档与媒体
相关型号
112713
amphenol connex
Connector Accessories BNC Female Cap With Chain Brass Nickel Finish CONN BNC FEMALE CAP W/CHAIN connector accessory;rf coaxial;bnc female cap and 100mm chain;for plugs RF Connector Accessories BNC JACK CAP AND CHAIN CAP, BNC COAXIAL CONNECTOR
47-10150
Amphenol Connex
Crimpers CRIMP TOOL W/DIE .178/.128/.068 TOOL CRIMP W/DIES .178/.128/.068 tool;ratcheted hand crimp tool w/die set;cavities: .178;.128;.068 (see notes) Crimp Tool With Die CRIMP TOOL W/DIE SET, RATCHET,COAXIAL CABLE tool, ratcheted hand crimp tool w/die set, cavities: .178, .128, .068 (see notes)
47-20004
amphenol connex
Crimp Die Set Punches & Dies CRIMP DIE .178/ .128/.068 TOOL DIE SET .178/.128/.068 DIE FOR RG174, MINI 59 BNC/TNC
112445
Amphenol Connex

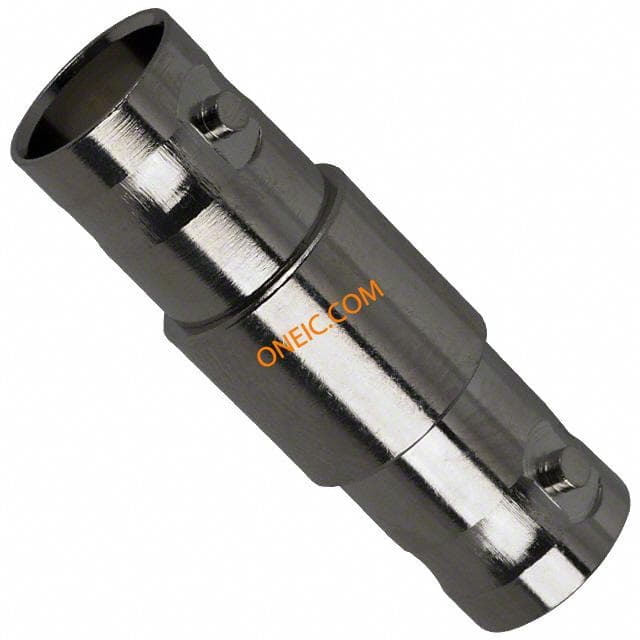

RF Adapters - In Series BNC JACK TO JACK ADAPTER Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Gold CONN BNC ADAPT JACK-JACK 50 OHM connector;rf coaxial;bnc in-series adapter;straight jack to jack;50 ohm RF/COAXIAL ADAPTER, BNC JACK-BNC JACK connector, rf coaxial, bnc in-series adapter, straight jack to jack, 50 ohm
31-315-RFX
Amphenol RF

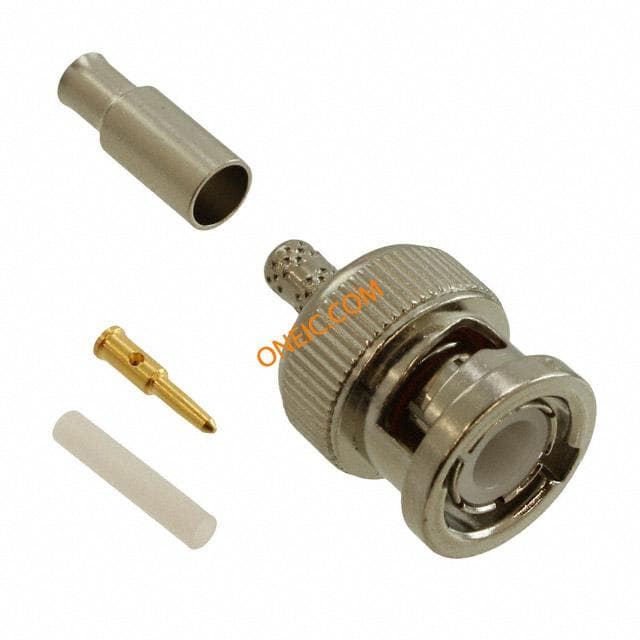

RF Connectors SRT CRMP PLG 174 316 CONN BNC PLUG STR 50 OHM CRIMP connector;rf coaxial;bnc commercial str plug;crimp-crimp;rg174;188;316;50 ohm RF Connectors / Coaxial Connectors SRT CRMP PLG 174 316 Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold RF/COAXIAL, BNC PLUG, STR, 50 OHM, CRIMP
112144
amphenol connex

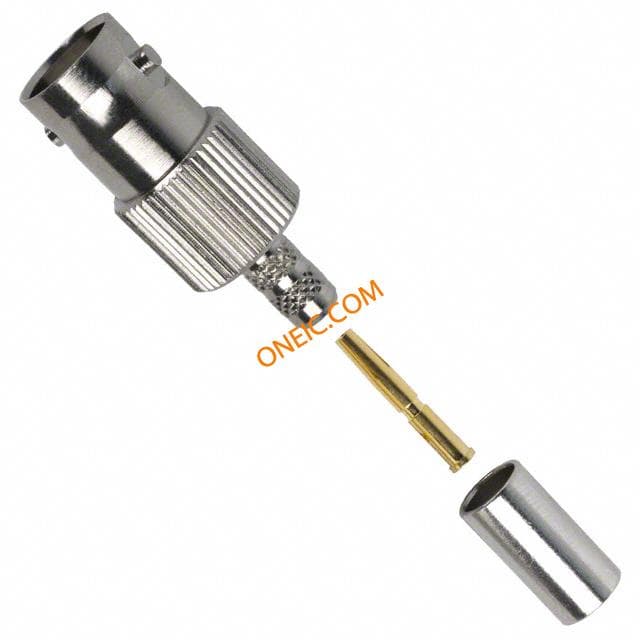

Conn BNC F 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold CONN BNC JACK STR 50 OHM CRIMP connector;rf coaxial;bnc crimp straight jack;for rg58;141;LMR195 cable;50 ohm RF Connectors / Coaxial Connectors BNC ST CRIMP JACK RG58 LMR195 RF/COAXIAL, BNC JACK, STR, 50 OHM, CRIMP connector, rf coaxial, bnc crimp straightjack, for rg58, 141, LMR195 cable, 50 ohm 112144 BNC Female Crimp Connector, Cable Group C, Amphenol
