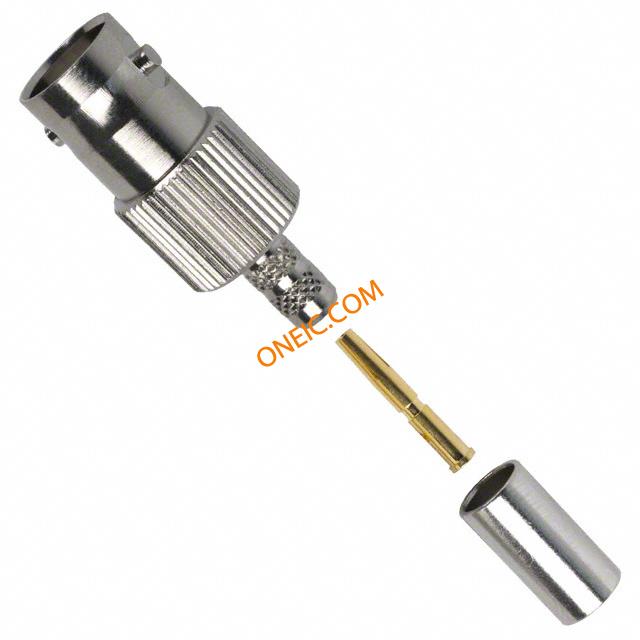

112144
| 制造商 | |
| 描述 | Conn BNC F 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold CONN BNC JACK STR 50 OHM CRIMP connector;rf coaxial;bnc crimp straight jack;for rg58;141;LMR195 cable;50 ohm RF Connectors / Coaxial Connectors BNC ST CRIMP JACK RG58 LMR195 RF/COAXIAL, BNC JACK, STR, 50 OHM, CRIMP connector, rf coaxial, bnc crimp straightjack, for rg58, 141, LMR195 cable, 50 ohm 112144 BNC Female Crimp Connector, Cable Group C, Amphenol |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1039 |
| 零件号别名 | 319-0035 99H4286 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Bayonet |
| 最大频率 | 4GHz | ||
机械参数
| 重量 | 0.363322 oz | 直径 | 11.5 |
| 包装方式 | Bulk | 电缆类型 | RG-58, RG-58A, RG-58C, RG-141, RG-303, LMR195, Belden 7806A |
| 本体表面处理 | Nickel | 电缆组 | RG-58, LMR-195 |
| 方向 | Straight | 端接方式 | Crimp |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 外壳涂层 | Nickel |
| 壳体镀层 | Nickel | 连接器样式 | BNC |
| 连接器用途 | Bayonet | 触头材料 | Phosphor Bronze |
| 壳体材料 | Brass | 总长度 | 28.8 |
| 主要材料 | BNC | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | BNC | 连接器性别 | F |
| 系列 | :- | 产品特性 | Captivated Contact |
| 极性 | Standard | 连接类型 | Flexible Cable |
| 射频系列/标准 | 112144 | 应用细节 | Commercial |
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
文档与媒体
