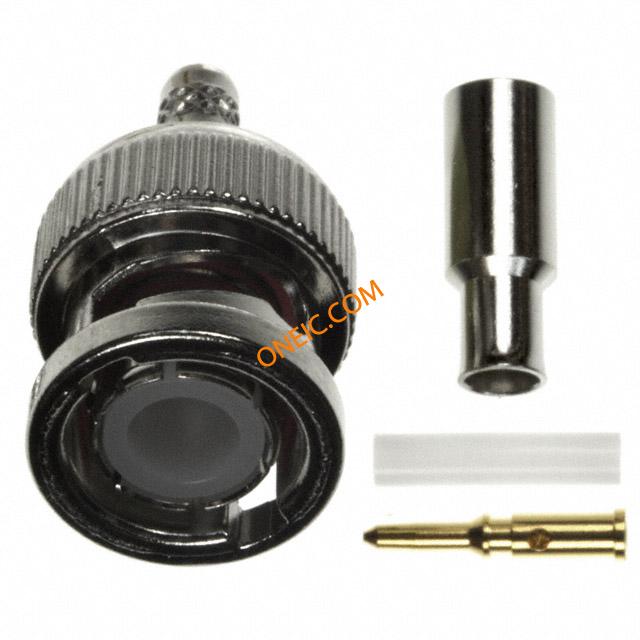

112134
| 制造商 | |
| 描述 | Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 50 OHM CRIMP RF Connectors / Coaxial Connectors BNC STRAIGHT PLUG 316/174 RF/COAXIAL, BNC PLUG, STR, 50 OHM, CRIMP BNC, BNC STR.CRP.PLG.RG174-50~-DC |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1659 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bag |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Bayonet |
| 最大频率 | 4GHz | ||
机械参数
| 重量 | 0.298418 oz | 直径 | 14.5 |
| 包装方式 | Bulk | 电缆类型 | RG-174, RG-188A, RG-316, Belden 7805A |
| 本体表面处理 | Nickel | 电缆组 | RG-174, 316, LMR-100 |
| 方向 | Straight | 端接方式 | Crimp |
| 基体材料 | Die Cast | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 壳体镀层 | Nickel |
| 连接器样式 | BNC | 触头材料 | Brass |
| 总长度 | 25 | 主要材料 | BNC |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polyoxymethylene (POM) Acetal |
| 绝缘材料 - 类型 | Delrin | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | Straight |
产品信息
| 类型 | BNC | 连接器性别 | PL |
| 极性 | Standard | 连接类型 | Flexible Cable |
| 射频系列/标准 | 112134 | 应用细节 | Commercial |
环境参数
| 插拔次数 | 500 | 工作温度 | - 40 C to + 155 C |
