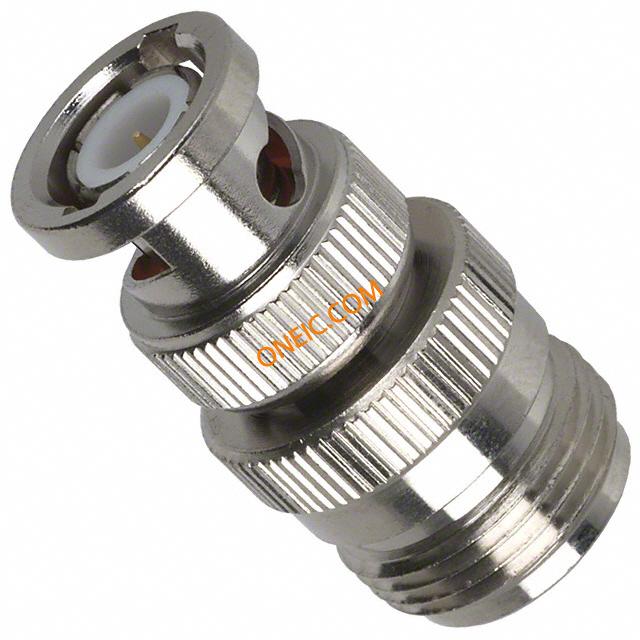

242101
| 制造商 | |
| 描述 | Conn Type N-BNC Adapter F/PL 0Hz to 4GHz 50Ohm ST Gold CONN ADT N JACK-BNC PLUG connector;rf coaxial;between series adapter;n jack to bnc plug RF Adapters - Between Series BNC PLUG TO N JACK ADAPTER RF/COAXIAL ADAPTER, N JACK-BNC PLUG connector, rf coaxial, between series adapter, n jack to bnc plug CONN ADAPT BNC PLUG TO N JACK |
| 分类 |
商业参数
| 其他名称 | ACX1357 | 零件号别名 | 319-0260 92C7246 |
| 产品类别 | RF Adapters - Between Series | 标准包装数量 | Bag |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 转换速率 | Between Series | 最大频率 | 4GHz |
| 频率范围 | DC to 4 GHz | ||
机械参数
| 重量 | 1 oz | 直径 | 17 |
| 包装方式 | Bulk | 本体表面处理 | Nickel |
| 重量（g） | 2.80000 | 基体材料 | Brass |
| 安装类型 | Straight | 外壳镀层 | Nickel |
| 行程角度 | Straight | 连接器类型 | BNC N |
| 接触镀层 | Gold | 外壳涂层 | Nickel |
| 壳体镀层 | Nickel | 触头材料 | Phosphor Bronze |
| 壳体材料 | Brass | 总长度 | 31.8 |
| 主要材料 | Adapter | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 第一连接器极性 | Plug (Male) |
| 第二连接器性别 | Jack (Female) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | :Straight Adapter |
| 第一连接器安装类型 | Normal | 第一连接器安装特征 | :Jack |
| 第二连接器安装特性 | Normal | ||
产品信息
| 类型 | Type N-BNC Adapter | 样式 | Straight |
| 连接器性别 | F/PL | 射频类型 | N |
| 适配器类型 | Plug to Jack | 中心极性 | Female to Male |
| 适配器系列 | BNC to N | 射频系列/标准 | 242101 |
| 应用细节 | Commercial | 转换端（适配器端） | N Jack, Female Socket |
| 转换自（适配器端） | BNC Plug, Male Pin | ||
文档与媒体
相关型号
172142
Amphenol Connex
RF Connectors N STRAIGHT CRIMP PLG RG 223/142/400 CONN N PLUG STR 50 OHM CRIMP connector;rf coaxial;n str crimp plug;captive cont;for rg142;223;400 cable;50ohm RF Connectors / Coaxial Connectors N STRAIGHT CRIMP PLG RG 223/142/400 Conn Type N PL 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold RF/COAXIAL, N PLUG, STR, 50 OHM, CRIMP connector, rf coaxial, n str crimp plug, captive cont, for rg142, 223, 400 cable, 50ohm

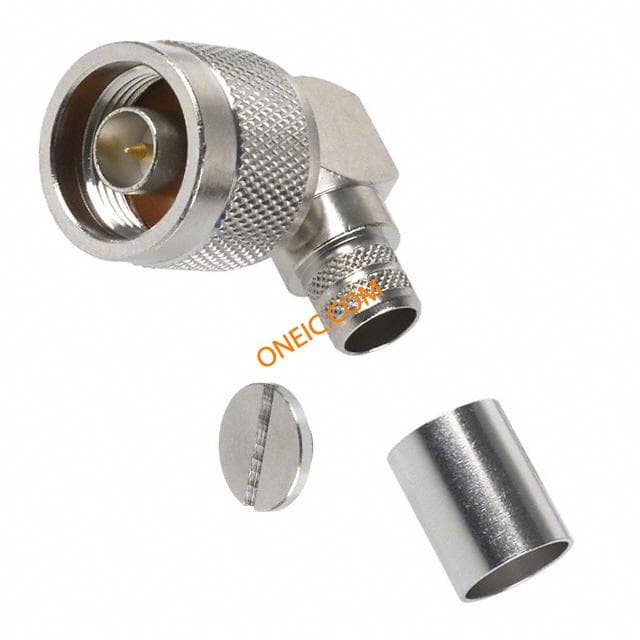

172176
amphenol connex
Conn Type N PL 0Hz to 11GHz 50Ohm Crimp RA Cable Mount Gold CONN N PLUG R/A 50 OHM SOLDER connector;rf coaxial;n right angle crimp plug;for rg8;b9913;LMR400 cable;50 ohm RF Connectors / Coaxial Connectors N RIGHT ANGLE PLUG STD CABLE CRIMP connector, rf coaxial, n right angle crimp plug, for rg8, b9913, LMR400 cable, 50 ohm 172176 Type-N Male Crimp Connector, Right Angle, Cable Group E & F, Amphenol
172206
amphenol connex
Conn Type N PL 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold CONN N PLUG STR 50 OHM SOLDER connector;rf coaxial;n str crimp plug;captive cont;for LMR600 cable;50 ohm RF Connectors / Coaxial Connectors N STRAIGHT PLUG STD CABLE CRIMP connector, rf coaxial, n str crimp plug, captive cont, for LMR600 cable, 50 ohm 172206 Type-N Male Crimp Connector, Cable Group L2, Straight, Amphenol

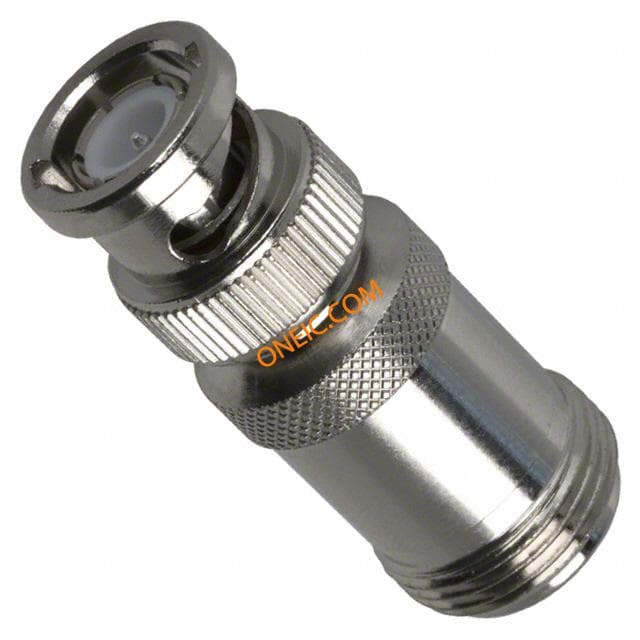

31-217
