点击放大查看

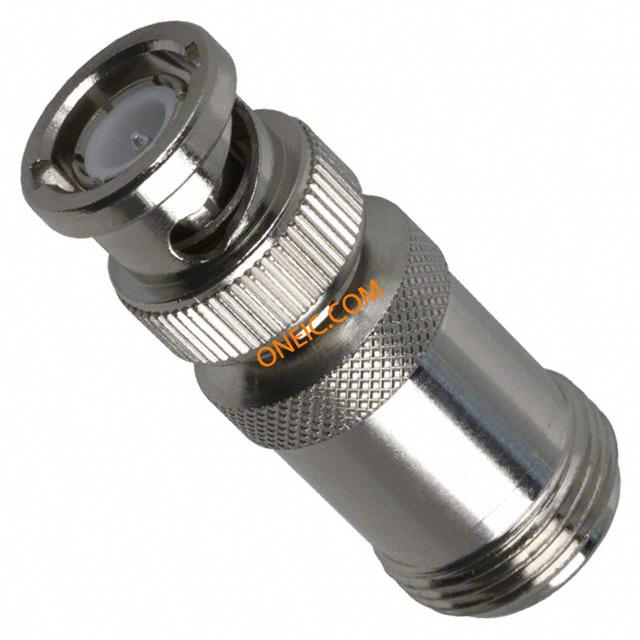

31-217
| 制造商 | |
| 描述 | RF Adapters - Between Series BNC PLUG TO N JACK UG-349A/U BNC PLUG-"N" JACK Conn BNC-Type N Adapter PL/RCP 0Hz to 4GHz ST BNC plug to N jack |
| 分类 |
商业参数
| 零件号别名 | 031-217 39F1030 713-1065 | 产品类别 | RF Adapters - Between Series |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | ||
电气参数
| 阻抗 | 50 Ohm | 转换速率 | Between Series |
| 最大频率 | 11GHz | 频率范围 | DC to 11 GHz |
机械参数
| 重量 | 1.439989 oz | 包装方式 | Bulk |
| 本体表面处理 | Nickel | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Nickel |
| 连接器类型 | BNC N | 接触镀层 | Silver |
| 触头材料 | Beryllium Copper | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 第一连接器极性 | Plug (Male) | 第二连接器性别 | Jack (Female) |
| 中心触点镀层工艺 | Silver | 中心触点材料 | Beryllium Copper |
| 第一连接器安装类型 | Normal | 第二连接器安装特性 | Normal |
产品信息
| 类型 | IN BETWEEN SERIES | 样式 | Straight |
| 射频类型 | N | 适配器类型 | Plug to Jack |
| 中心极性 | Female to Male | 适配器系列 | BNC to N |
| 转换端（适配器端） | N Jack, Female Socket | 转换自（适配器端） | BNC Plug, Male Pin |
环境参数
| 插拔次数 | 500 | ||
