点击放大查看
172142
| 制造商 | |
| 描述 | RF Connectors N STRAIGHT CRIMP PLG RG 223/142/400 CONN N PLUG STR 50 OHM CRIMP connector;rf coaxial;n str crimp plug;captive cont;for rg142;223;400 cable;50ohm RF Connectors / Coaxial Connectors N STRAIGHT CRIMP PLG RG 223/142/400 Conn Type N PL 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold RF/COAXIAL, N PLUG, STR, 50 OHM, CRIMP connector, rf coaxial, n str crimp plug, captive cont, for rg142, 223, 400 cable, 50ohm |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1120 |
| 零件号别名 | 319-0094 99H5748 | 产品类别 | RF Connectors |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 85366910 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 11 | 阻抗 | 50 Ohms |
| 额定电压 | 1.5 KV | 耦合系数 | Threaded |
| 最大频率 | 11 GHz | 绝缘电阻 | 5000 Megohms (Min.) |
机械参数
| 深度 | Not Required mm | 高度 | Not Required mm |
| 长度 | 1.174 in. | 重量 | 1.072328 oz |
| 直径 | 21 mm | 包装方式 | Bulk |
| 电缆类型 | RG-55, RG-142, RG-223, RG-400 | 本体表面处理 | White Bronze |
| 电缆组 | RG-55, 142, 223 | 方向 | Straight |
| 端接方式 | Crimp | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 连接器类型 | Crimp/Solder Attachments for Flexible and Semi-Rigid Cable |
| 接触镀层 | Silver or Gold | 紧固类型 | Threaded |
| 外壳涂层 | Nexcote | 内径（孔径） | 0.126 in. |
| 安装样式 | Cable | 外径（标称值） | 0.168 in. |
| 壳体镀层 | Nickel | 连接器样式 | N Type |
| 连接器用途 | Threaded | 触头材料 | Brass |
| 壳体材料 | Brass | 总长度 | 34.6 mm |
| 主要材料 | N | 端接样式 | Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Teflon |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | Type N | 连接器性别 | Plug (Male) |
| 产品特性 | Captivated Contact | 极性 | Normal |
| 连接类型 | Coaxial Cable | 射频系列/标准 | N |
| 应用细节 | Commercial | 适用产品/相关产品 | RG-223/142/400 |
环境参数
| 插拔次数 | 500 | 温度范围 | -65 to +165 °C |
| 工作温度 | -65°C ~ 165°C | ||
文档与媒体
相关型号
172306
amphenol connex
Connector Accessories N Female Cap With Chain Brass Nickel Finish CONN N FEMALE CAP W/CHAIN connector accessory;rf coaxial;n series female cap and 100mm chain;for plugs RF Connector Accessories N JACK CAP AND CHAIN CHAIN CAP, TNC COAXIAL CONNECTOR Coaxial/RF; Cap-w/Chain; N; Protective; Female; Brass; forMaleConnector; Straight
47-20025
amphenol connex
Crimp Die, Standard Coax Dies Punches & Dies DIE 5 CAVITY MINI/UHF BNC/TNC DIE SET .255/.213/.100/.068/.052 DIE 5 CAVITY MINI/UHF BNC/TNC

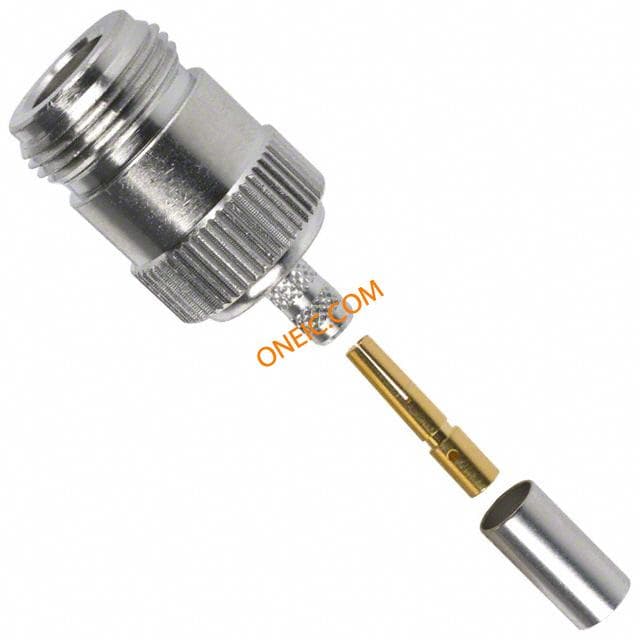

172103
amphenol connex
Conn Type N F 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold CONN N JACK STR 50 OHM CRIMP connector;rf coaxial;n str crimp jack;captive cont;for rg58;141;LMR195;50 ohm RF Connectors / Coaxial Connectors N STRAIGHT JACK STANDARD CABLE connector, rf coaxial, n str crimp jack, captive cont, for rg58, 141, LMR195, 50 ohm 172103 Type N Female Crimp Connector, Cable Group C, Amphenol

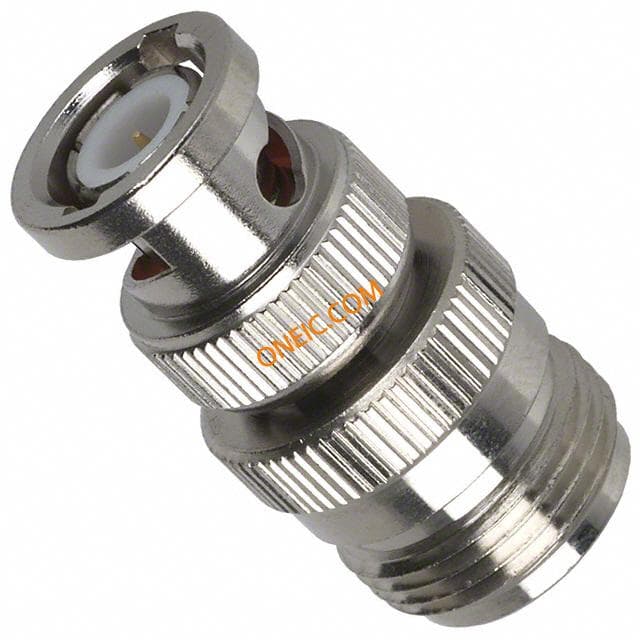

242101
