172103
| 制造商 | |
| 描述 | Conn Type N F 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold CONN N JACK STR 50 OHM CRIMP connector;rf coaxial;n str crimp jack;captive cont;for rg58;141;LMR195;50 ohm RF Connectors / Coaxial Connectors N STRAIGHT JACK STANDARD CABLE connector, rf coaxial, n str crimp jack, captive cont, for rg58, 141, LMR195, 50 ohm 172103 Type N Female Crimp Connector, Cable Group C, Amphenol |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1155 |
| 零件号别名 | 319-0126 92C6720 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 1500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | 阻抗（最大）（Zzt） | 50 Ohm |
| 绝缘电阻 | 5000 Megohms (Min.) | 连接器类型 - 电压输入 | Crimp |
机械参数
| 深度 | Not Required mm | 高度 | Not Required mm |
| 长度 | 1.257 in. | 重量 | 1.061746 oz |
| 直径 | 17 mm | 包装方式 | Bulk |
| 电缆类型 | RG-58, RG-58A, RG-58C, RG-141, RG-303, LMR195, Belden 7806A | 本体表面处理 | White Bronze |
| 电缆组 | RG-58, LMR-195 | 方向 | Straight |
| 端接方式 | Crimp | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 外壳涂层 | Nexcote | 内径（孔径） | 0.122 in. |
| 安装样式 | Cable | 外径（标称值） | 0.181 in. |
| 壳体镀层 | Nickel | 连接器样式 | N Type |
| 连接器用途 | Threaded | 触头材料 | Phosphor Bronze|Beryllium Copper |
| 壳体材料 | Brass | 总长度 | 36.7 mm |
| 主要材料 | N | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 外部壳体颜色 | Silver |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | Straight |
产品信息
| 类型 | Type N | 连接器性别 | F |
| 产品特性 | Captivated Contact | 极性 | Standard |
| 连接类型 | Coaxial Cable | 射频系列/标准 | 172103 |
| 输出配置 | Free Hanging (In-Line) | 应用细节 | Commercial |
环境参数
| 插拔次数 | 500 | 温度范围 | -65 to +165 °C |
| 防护等级 | Crimp | 工作温度 | -65°C ~ 165°C |
文档与媒体
相关型号
202102-10
amphenol connex
Connector Accessories N Male Cap Without Chain Brass Nickel Finish RF Connectors UHF TERMINATOR N MALE CAP NO CHAIN CONN N MALE CAP WITHOUT CHAIN RF Connector Accessories UHF TERMINATOR N MALE CAP NO CHAIN RF/COAXIAL, DUST CAP, NO CHAIN, N/UHF Coaxial/RF; Cap-NoChain; N; Protective; Male; Brass; forFemaleConn; Straight; 50Ohms CONN CAP COVER FOR N TYPE JACKS 202102-10 UHF or Type N Cap without Chain
47-20025
amphenol connex
Crimp Die, Standard Coax Dies Punches & Dies DIE 5 CAVITY MINI/UHF BNC/TNC DIE SET .255/.213/.100/.068/.052 DIE 5 CAVITY MINI/UHF BNC/TNC

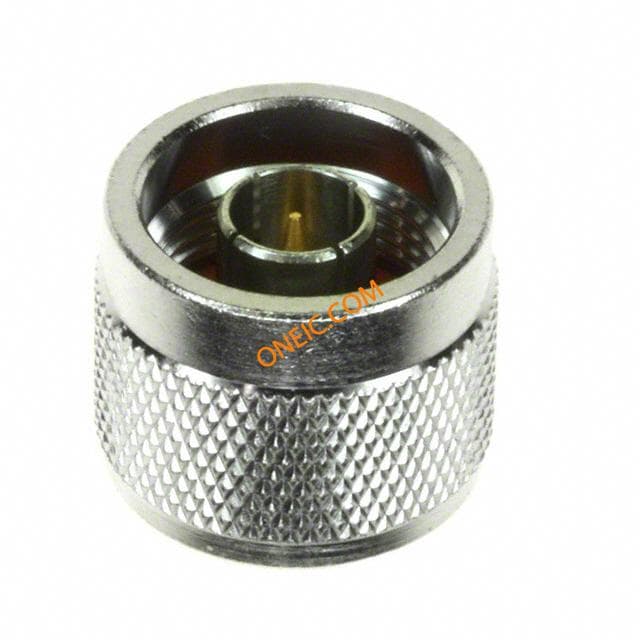

172317
amphenol connex
Conn Type N PL ST Cable Mount Gold CONN CAP N MALE SHORTING RF Connectors / Coaxial Connectors N MALE SHORTING CAP Coaxial/RF; Cap-NoChain; N; Shorting; Male; Brass; forFemaleConnector; Straight CONN CAP CVR SHORTING FOR N JACK
47-10180
amphenol connex
Crimp Tool With Die Crimpers CRIMP TOOL W/DIE .255/.213/.100/.068 Hand Tools CRIMP TOOL W/DIE .255/.213/.100/.068 TOOL CRIMP .255/.213/.100/.068 tool;ratcheted hand crimp tool w/die set;cavities:.255;.213;.100;.068;.052(see) tool, ratcheted hand crimp tool w/die set, cavities:.255, .213, .100, .068, .052(see)

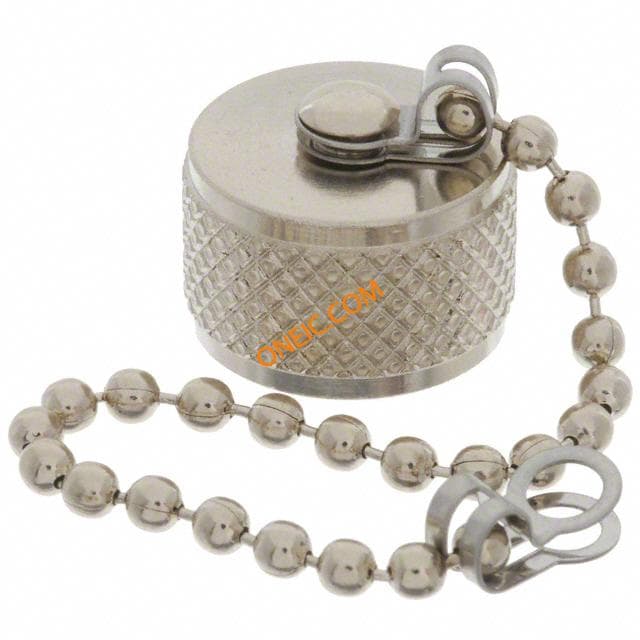

202102
