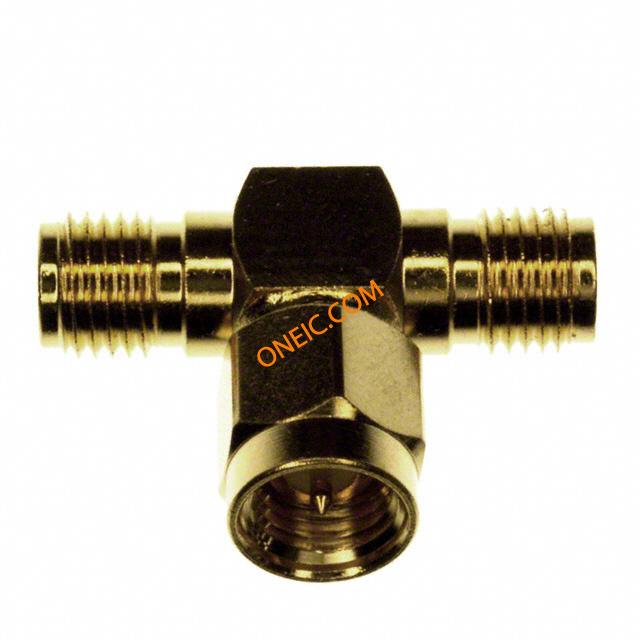

132217
| 制造商 | |
| 描述 | Conn SMA Adapter RCP/PL/RCP 0Hz to 18GHz 50Ohm T Style Gold CONN T-ADAPT SMA JACK-PLUG-JACK connector;rf coaxial;sma in-series adapter;tee;jack to plug to jack RF Adapters - Tee SMA JACK PLUG JACK TEE ADAPTER ADAPTER, SMA TEE, JACK- PLUG / JACK connector, rf coaxial, sma in-series adapter, tee, jack to plug to jack CONN ADAPT PLUG TO JACK SMA |
| 分类 |
商业参数
| 其他名称 | ACX1433 | 零件号别名 | 319-0337 |
| 产品类别 | RF Adapters - Tee | 标准包装数量 | Bag |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 转换速率 | Same Series | 最大频率 | 18GHz |
机械参数
| 高度 | 16.7 mm | 重量 | 0.236336 oz |
| 直径 | Not Required mm | 包装方式 | Bulk |
| 本体表面处理 | Gold | 极化 | Normal |
| 第二连接器 | SMA | 基体材料 | Brass |
| 安装类型 | Tee Style | 外壳镀层 | Gold |
| 行程角度 | Tee | 连接器类型 | :Adaptor |
| 接触镀层 | Gold | 外壳涂层 | Gold |
| 壳体镀层 | Gold | 连接器用途 | Threaded |
| 触头材料 | Beryllium Copper/Brass/Beryllium Copper | 壳体材料 | Brass |
| 总长度 | 23.2 mm | 主要材料 | Adapter |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 第一连接器极性 | Jack (Female) | 第二连接器性别 | Jack (Female) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass, Beryllium Copper |
| 供应商器件封装 | Tee Style | 第一连接器安装类型 | Normal |
| 第一连接器安装特征 | :Plug | 第二连接器安装特性 | Normal |
产品信息
| 类型 | SMA Adapter | 样式 | T-Shape |
| 连接器性别 | RCP/PL/RCP | 射频类型 | SMA |
| 适配器类型 | Plug to Jack | 中心极性 | Female to Male |
| 适配器系列 | SMA to SMA, Dual | 射频系列/标准 | SMA |
| 应用细节 | Commercial | 转换端（适配器端） | SMA Jack, Female Socket (2) |
| 转换自（适配器端） | SMA Plug, Male Pin | ||
环境参数
| 工作温度 | -65C to 165C | ||
