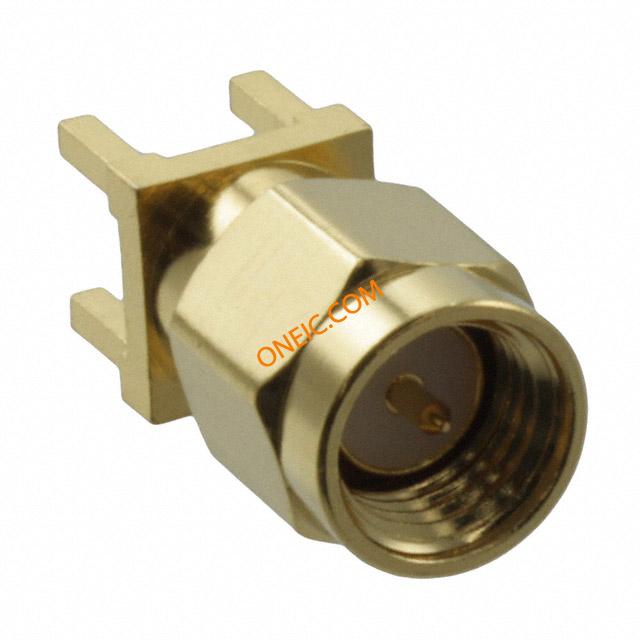

132133
| 制造商 | |
| 描述 | Conn SMA PL 0Hz to 18GHz 50Ohm Solder ST Thru-Hole Gold CONN SMA PLUG STR 50 OHM PCB RF Connectors / Coaxial Connectors SMA STRAIGHT PCB PLUG RF/COAXIAL, SMA PLUG, STR 50OHM, THT connector, rf coaxial, sma straight pcb receptacle plug, 4 legs |
| 分类 |
商业参数
| 产品 | PCB Connectors | 零件号别名 | 319-0331 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bag |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 耦合系数 | Threaded | 最大频率 | 18GHz |
机械参数
| 重量 | 0.01038 | 包装方式 | Bulk |
| 电缆类型 | :- | 本体表面处理 | Gold |
| 方向 | Straight | 端接方式 | Solder |
| 基体材料 | Brass | 外壳颜色 | Gold |
| 安装类型 | Through Hole | 行程角度 | Straight |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Gold |
| 连接器样式 | SMA | 连接器用途 | Threaded |
| 触头材料 | Brass | 壳体材料 | Brass |
| 主要材料 | SMA | 端接样式 | PCB - Through Hole |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | Straight |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | SMA | 连接器性别 | PL |
| 系列 | :- | 极性 | Standard |
| 连接类型 | PCB | 射频系列/标准 | SMA |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
文档与媒体
相关型号

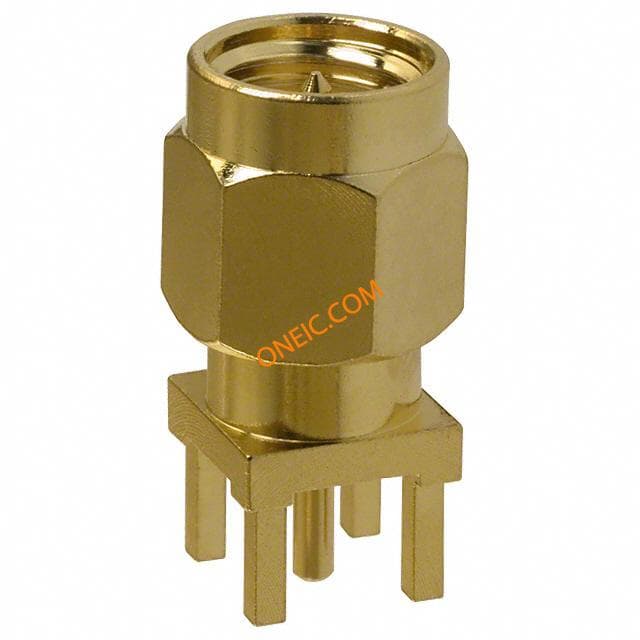

901-9895-RFX
amphenol
Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Thru-Hole Gold CONN SMA PLUG STR 50 OHM PCB connector;rf coaxial;sma pcb plug recept;4 legs;blunt post terminal;gold plt RF Connectors / Coaxial Connectors PC STRT PLG TFE GLD connector, rf coaxial, sma pcb plug recept, 4 legs, blunt post terminal, gold plt

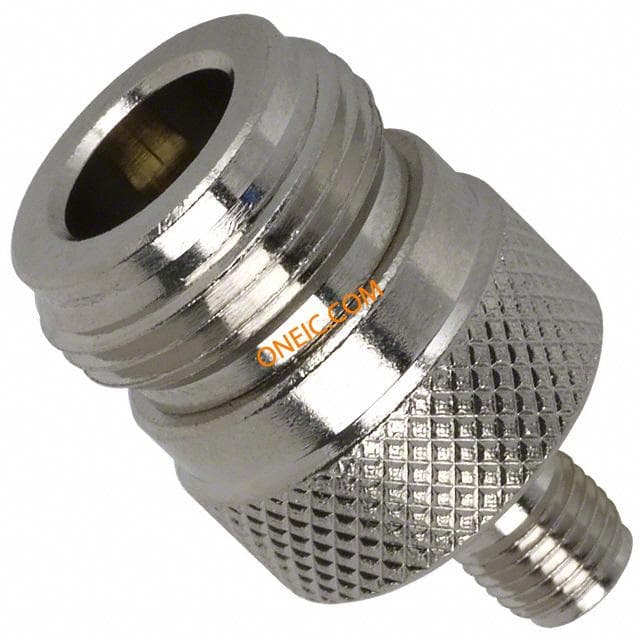

242115
amphenol connex
Conn SMA-Type N Adapter F/F 0Hz to 11GHz 50Ohm ST Gold CONN ADT SMA JACK-N JACK connector;rf coaxial;between series adapter;sma jack to n jack RF Adapters - Between Series SMA JACK TO N JACK ADAPTER RF/COAXIAL ADAPTER, SMA JACK-N JACK connector, rf coaxial, between series adapter, sma jack to n jack

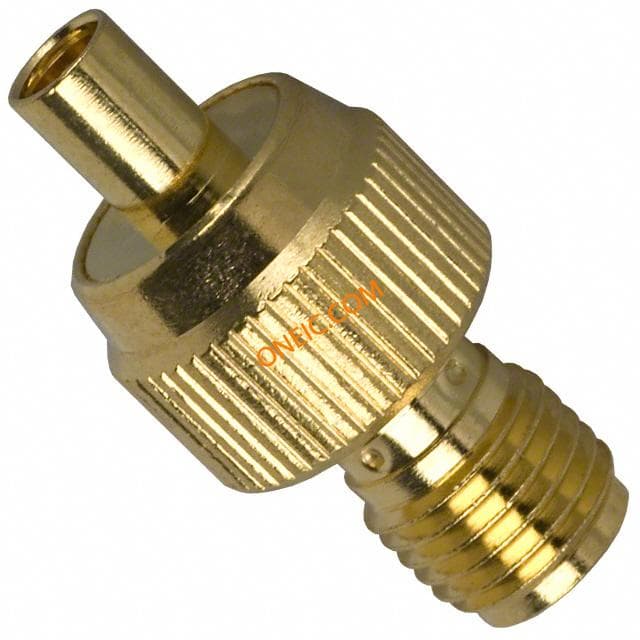

242143
amphenol connex
Conn SMA-MMCX Adapter F/F 0Hz to 6GHz 50Ohm ST Gold CONN ADT SMA JACK/MMCX JACK connector;rf coaxial;between series adapter;sma jack to mmcx jack RF Adapters - Between Series Adapter SMA Jack To MMCX Jack ADAPTOR, SMA-MMCX, RF COAXIAL connector, rf coaxial, between series adapter, sma jack to mmcx jack
132133
amphenol connex
Conn SMA PL 0Hz to 18GHz 50Ohm Solder ST Thru-Hole Gold CONN SMA PLUG STR 50 OHM PCB RF Connectors / Coaxial Connectors SMA STRAIGHT PCB PLUG RF/COAXIAL, SMA PLUG, STR 50OHM, THT connector, rf coaxial, sma straight pcb receptacle plug, 4 legs
132348
amphenol connex
Connector Accessories SMA Female Cap with Chain Brass Gold Finish RF Connectors SMA FEMALE CAP WITH CHAIN CONN FEMALE CAP W/CHAIN SMA RF Connector Accessories SMA FEMALE CAP WITH CHAIN Coaxial/RF; Cap-w/Chain; SMA; Protective; Male; Brass; forSMAFemale; Straight
132134
Amphenol Connex
RF Connectors SMA STRAIGHT PCB RECEPTACLE Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Thru-Hole Gold CONN SMA JACK STR 50 OHM PCB connector;rf coaxial;sma str jack for p.c.board;4 legs;.050 center cont;50 ohm RF Connectors / Coaxial Connectors SMA STRAIGHT PCB RECEPTACLE RF COAXIAL, SMA JACK, THT, 50OHM connector, rf coaxial, sma str jack for p.c.board, 4 legs, .050 center cont, 50 ohm
132169
Amphenol Connex
RF Adapters - In Series SMA ST JACK TO JACK ADAPTER Conn SMA Adapter RCP/RCP 50Ohm ST Gold CONN SMA ADAPTER JACK-JACK connector;rf coaxial;sma in-series adapter;straight jack to jack;50 ohm RF COAXIAL, SMA JACK TO JACK, 50OHM connector, rf coaxial, sma in-series adapter, straight jack to jack, 50 ohm CONN ADAPT JACK-JACK SMA 50 OHM
132170
Amphenol Connex
RF Adapters - In Series SMA JACK TO JACK BULKHEAD ADAPTER Conn SMA Adapter RCP/RCP 50Ohm ST Panel Mount Gold CONN SMA ADPT JACK-JACK BULKHEAD connector;rf coaxial;sma in-series adapter;jack to jack bulkhead feedthru;50 ohm ADAPTER, SMA JACK, SMA JACK, 50OHM connector, rf coaxial, sma in-series adapter, jack to jack bulkhead feedthru, 50 ohm CONN ADAPT JACK-JACK SMA 50 OHM

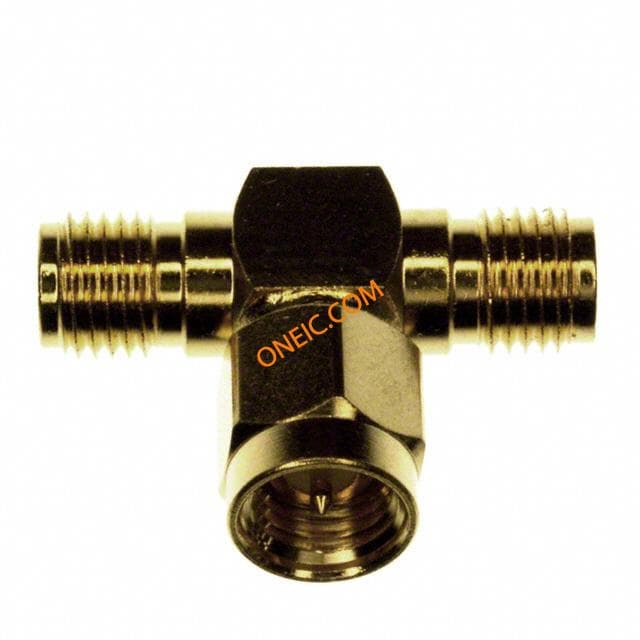

132217
