点击放大查看

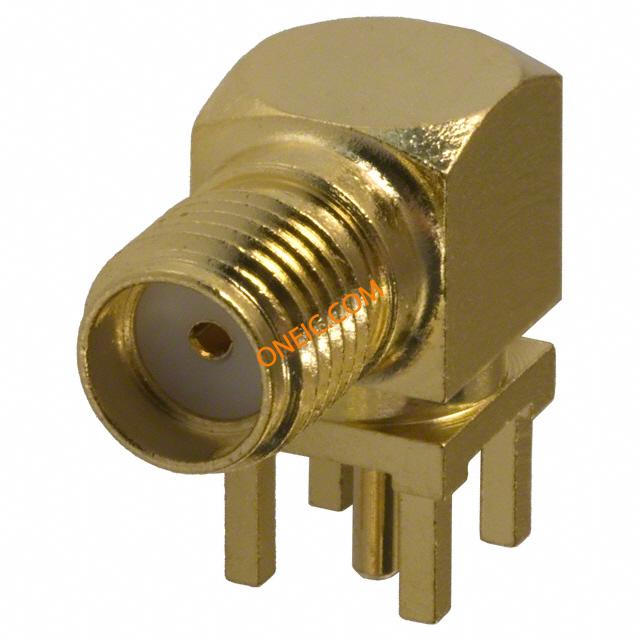

132136
| 制造商 | |
| 描述 | Conn SMA RCP 0Hz to 18GHz 50Ohm Solder RA Thru-Hole Gold BNC MHV B/H JACK CONN SMA JACK R/A 50 OHM PCB connector;rf coaxial;sma rt angle jack for p.c. board;4 legs;.050 cont;50 ohm RF Connectors / Coaxial Connectors SMA PCB RECEPTACLE RIGHT ANGLE RF COAXIAL, SMA, JACK, THT, R/A, 50OHM |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | PCB Connectors |
| 单位包装 | 1 | 其他名称 | ACX1232 |
| 零件号别名 | 319-0177 99H5025 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 无铅定义 | RoHS-conform |
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 耦合系数 | Threaded | 最大频率 | 12.4GHz |
机械参数
| 深度 | 15.1 | 高度 | 9.86 |
| 重量 | 0.137568 oz | 包装方式 | Bulk |
| 电缆类型 | :- | 本体表面处理 | Gold |
| 方向 | Right Angle | 端接方式 | Solder |
| 重量（g） | 5.20000 | 触头类型 | FEMALE |
| 基体材料 | Brass | 外壳颜色 | Gold |
| 安装类型 | Through Hole | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 壳体镀层 | Gold | 连接器样式 | SMA |
| 触头材料 | Beryllium Copper | 总长度 | 7 |
| 端接样式 | PCB - Through Hole | 触点数 | 50 |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Beryllium Copper |
| 供应商器件封装 | Right Angle | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | SMA | 连接器性别 | RCP |
| 系列 | :- | 极性 | Standard |
| 匹配码 | 132136 | 连接类型 | PCB |
| 标准交期 | 11 weeks | 射频系列/标准 | SMA |
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
文档与媒体
相关型号

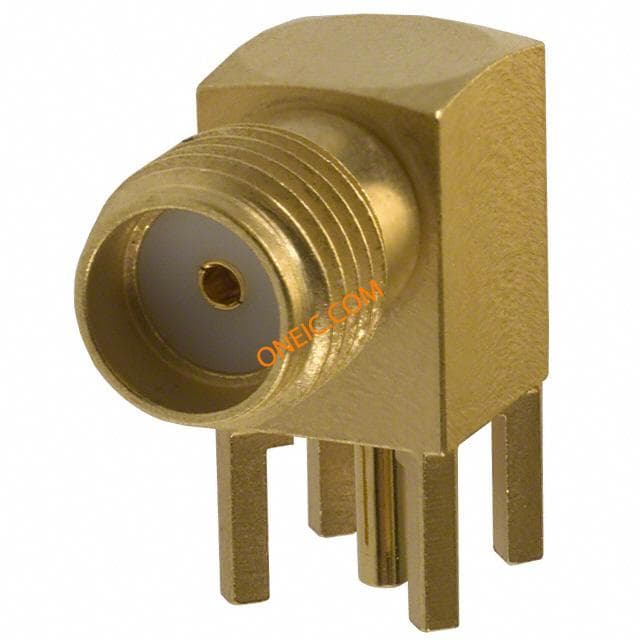

901-143
