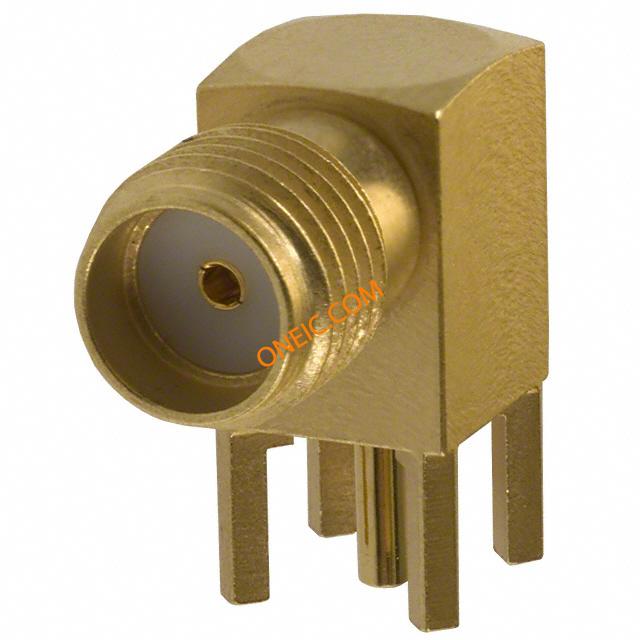

901-143
| 制造商 | |
| 描述 | Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Thru-Hole Gold CONN SMA JACK R/A 50 OHM PCB connector;rf coaxial;sma rt angle pcb jack recept;4 legs;blunt post terminal connector, rf coaxial, sma rt angle pcb jack recept, 4 legs, blunt post terminal |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 最大频率 | 18GHz | ||
机械参数
| 高度 | 9.86 mm | 长度 | 0.594 in. |
| 包装方式 | Bulk | 本体表面处理 | Gold |
| 端接方式 | Solder | 基体材料 | Stainless Steel |
| 外壳颜色 | Gold | 安装类型 | Through Hole |
| 行程角度 | Right Angle | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 外壳涂层 | Gold | 安装样式 | Through Hole |
| 壳体镀层 | Gold | 连接器样式 | SMA |
| 连接器用途 | Threaded | 触头材料 | Beryllium Copper |
| 壳体材料 | Stainless Steel | 总长度 | 15.1 mm |
| 主要材料 | SMA | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Tetrafluoroethylene | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | 供应商器件封装 | Straight |
产品信息
| 类型 | SMA | 连接器性别 | RCP |
| 连接类型 | PCB | 应用细节 | Commercial |
环境参数
| 工作温度 | -65°C ~ 165°C | ||
文档与媒体
相关型号
142-0701-301
emerson network power connectivity solutions
Conn SMA RCP 0Hz to 18GHz 50Ohm Solder RA Thru-Hole Gold CONN SMA JACK R/A 50 OHM PCB RF Connectors / Coaxial Connectors PC R/A JCK .155 GLD SMA JACK, R/A, 50OHM, SOLDER
901-143-6RFX
amphenol
Conn SMA RCP 0Hz to 18GHz 50Ohm Solder RA Thru-Hole Gold CONN SMA JACK R/A 50 OHM PCB connector;rf coaxial;sma rt angle pcb jack recept;4 legs;blunt post term;gold RF Connectors / Coaxial Connectors R/A PCB RECEPTACLE JACK SMA, RIGHT ANGLE, THT, 50OHM connector, rf coaxial, sma rt angle pcb jack recept, 4 legs, blunt post term, gold

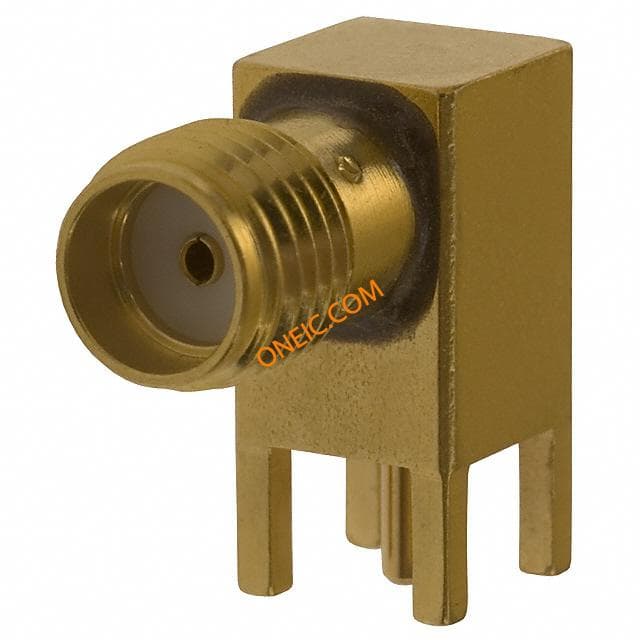

221790-1
