112433
| 制造商 | Amphenol Corporation |
| 描述 | RF Adapters - In Series BNC JACK TO JACK ADAPTER Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Panel Mount Gold CONN ADPT BNC JCK-JCK BULKHEAD connector;rf coaxial;bnc in-series adapter;bulkhead jack to jack;50 ohm BULKHEAD ADAPTER, BNC JACK-BNC JACK ADAPTER, BNC JACK, BNC JACK, BULKHEAD connector, rf coaxial, bnc in-series adapter, bulkhead jack to jack, 50 ohm |
| 分类 |
商业参数
| 其他名称 | ACX1835 | 零件号别名 | 319-0296 99H4391 |
| 产品类别 | RF Adapters - In Series | 标准包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
电气参数
| 频率 | 0 to 4G | 阻抗 | 50 Ohm |
| 额定电压 | 500 V | 转换速率 | Same Series |
| 最大频率 | 4GHz | 频率范围 | DC to 4 GHz |
机械参数
| 重量 | 0.749924 oz | 直径 | 17.5 |
| 包装方式 | Bulk | 本体表面处理 | Nickel |
| 方向 | Straight | 重量（g） | 22.00000 |
| 基体材料 | Brass | 安装类型 | Panel Mount |
| 外壳镀层 | Nickel | 行程角度 | Straight |
| 连接器类型 | :Intra Series Coaxial | 接触镀层 | Gold |
| 外壳涂层 | Nickel | 壳体镀层 | Nickel |
| 连接器用途 | Bayonet | 触头材料 | Phosphor Bronze |
| 壳体材料 | Brass | 总长度 | 39.6 |
| 主要材料 | Adapter | 介电材料 | Polyoxymethylene (POM) Acetal |
| 绝缘材料 - 类型 | Delrin | 第一连接器极性 | Jack (Female) |
| 第二连接器性别 | Jack (Female) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | Bulkhead |
| 第一连接器安装类型 | Normal | 第一连接器安装特征 | :Jack |
| 第二连接器安装特性 | Normal | ||
产品信息
| 类型 | BNC Adapter | 样式 | Straight |
| 连接器性别 | RCP/RCP | 适配器类型 | Jack to Jack |
| 中心极性 | Female to Female | 适配器系列 | BNC to BNC |
| 射频系列/标准 | BNC | 应用细节 | True MIL |
| 转换端（适配器端） | BNC Jack, Female Socket | 转换自（适配器端） | BNC Jack, Female Socket |
文档与媒体
相关型号

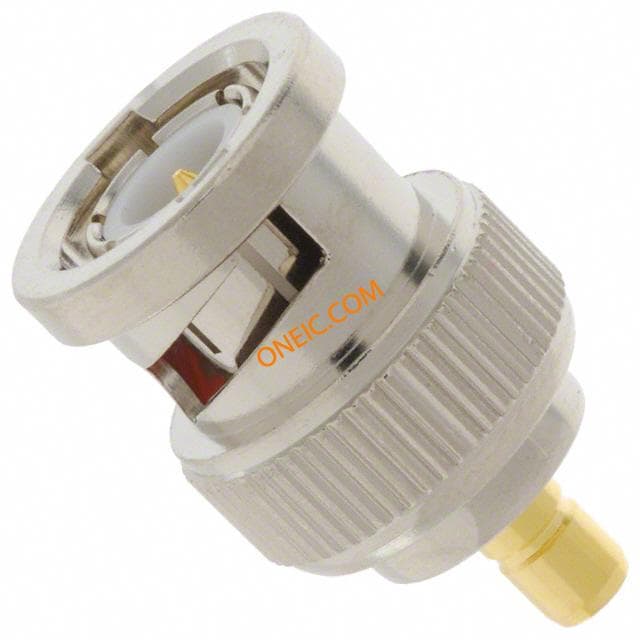

242184
amphenol connex
Conn BNC-SMP Adapter PL/RCP ST Gold CONN ADT BNC PLUG-SMB JACK connector;rf coaxial;between series adapter;bnc plug to smb jack RF Adapters - Between Series BNC PLUG TO SMB JACK ADAPTER ADAPTOR, BNC-SMB, RF COAXIAL connector, rf coaxial, between series adapter, bnc plug to smb jack
31-220H
Amphenol RF
RFアダプタ - 直列 BNC BLKHD JACK-JACK ADAPTER UG-492A/U CONN BNC ADAPT BLKH JACK-JACK Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Panel Mount Gold BULKHEAD ADAPTER, BNC JACK-BNC JACK 31-220H BNC In-Series Adapter, Female to Female, Straight, Bulkhead (Industrial Grade-Pressurized), UG492A/U, Amphenol
31-315
Amphenol RF
RF Connectors STRAIGHT PLUG 50 ohm CRIMP RG174/316 CONN BNC PLUG STR 50 OHM CRIMP connector;rf coaxial;bnc straight plug;crimp-crimp;for rg174;188;316 cable;50ohm RF Connectors / Coaxial Connectors STRAIGHT PLUG 50 ohm CRIMP RG174/316 Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold CONNECTOR, RF COAXIAL, CRIMP BNC
112433
Amphenol Connex
RF Adapters - In Series BNC JACK TO JACK ADAPTER Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Panel Mount Gold CONN ADPT BNC JCK-JCK BULKHEAD connector;rf coaxial;bnc in-series adapter;bulkhead jack to jack;50 ohm BULKHEAD ADAPTER, BNC JACK-BNC JACK ADAPTER, BNC JACK, BNC JACK, BULKHEAD connector, rf coaxial, bnc in-series adapter, bulkhead jack to jack, 50 ohm

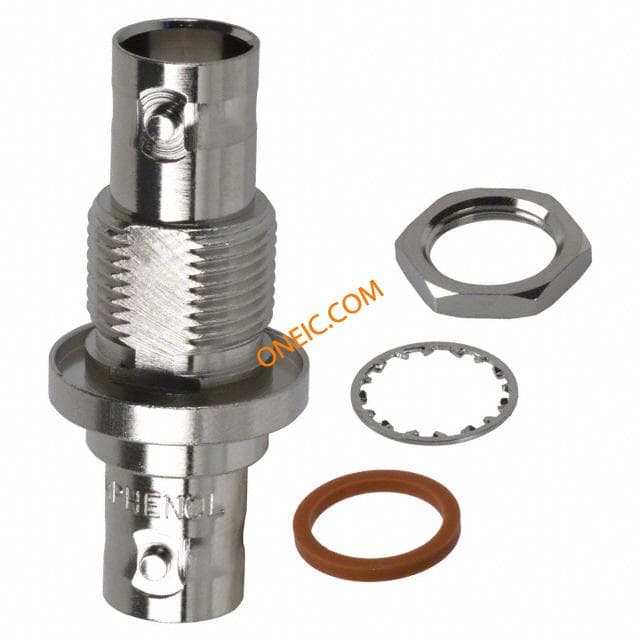

31-220G-RFX
Amphenol RF
RF Adapters - In Series BNC JACK/JACK BULKHD BNC ADAPTER BULKHEAD, SEALED connector;rf coaxial;bnc commercial in-series adapter;blkhd jack to jack;50 ohm Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Panel Mount Gold BULKHEAD ADAPTER, BNC JACK-BNC JACK

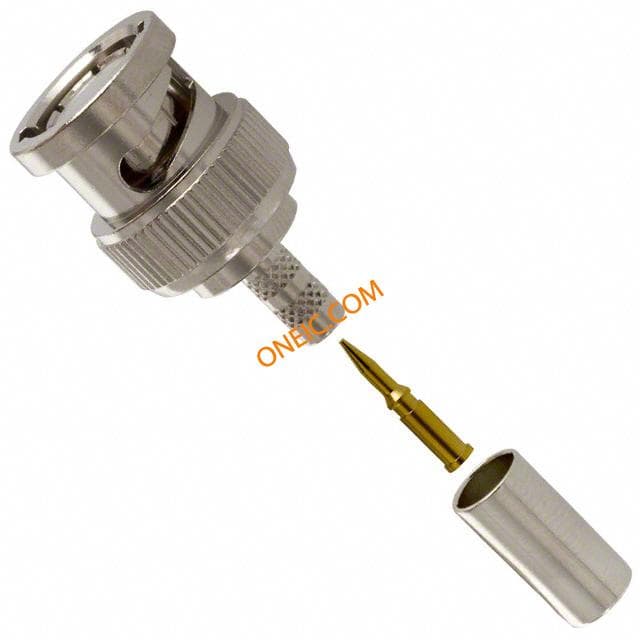

31-320-RFX
Amphenol RF
RF Connectors SRT CRMP PLG 58 141 LMR195 BELDEN 7806A CONN BNC PLUG STR 50 OHM CRIMP connector;rf coaxial;bnc commercial str plug;crimp-crimp;rg58;141 cable;50 ohm Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold RF/COAXIAL CONNECTOR BNC

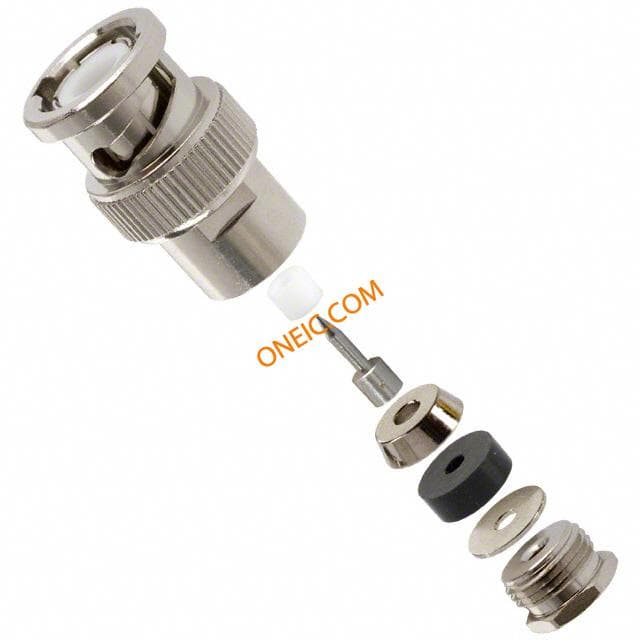

15875
Amphenol RF
RF Connectors ST CLMP PLG 178 196 CONN BNC PLUG STR 50 OHM SOLDER connector;rf coaxial;bnc straight plug;clamp/solder;for rg178;196 cable;50 ohm RF Connectors / Coaxial Connectors ST CLMP PLG 178 196 Conn BNC PL 0Hz to 4GHz 50Ohm Solder ST Cable Mount Silver ADAPTOR, RF COAXIAL, BNC TERM TYPE LEGEND H-C-C = Hex Crimp Center Contact and Braid O-C-C = "O" Crimp Center Contact and Braid H-C = Captive Center Contact and Braid H-C = Captive Center Contact and Braid * 10BASE-2 IEEE 802.3

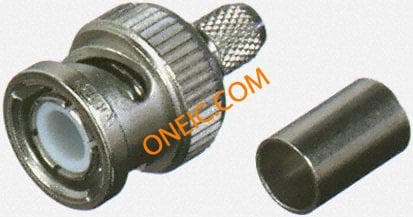

B1121E1-ND3G-5-50
Amphenol
BNC Straight crimp plug 50 ohm PLUG, BNC, STRAIGHT, 50R Plug; BNC; male; straight; 50Ω; crimped; for cable; delrin; Vswr:1.3 Amphenol 直 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG174/U, RG188 A/U, RG316/U电缆, 镀镍本体
B1141C1-NT3G-5-50
Amphenol
BNC Straight clamp plug 50 ohm Conn BNC PL 0Hz to 4GHz 50Ohm ST Cable Mount Gold/Silver PLUG, BNC, STRAIGHT, 50R Amphenol 直 50Ω 电缆安装 BNC 连接器 插头, 钳制 端接, RG174/U, RG188 A/U, RG316/U电缆, 镀镍本体

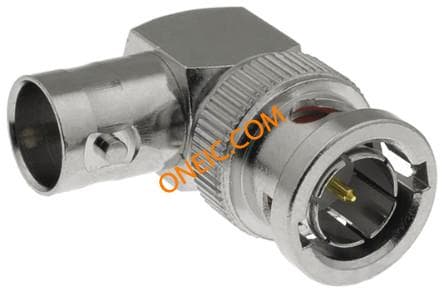

B5072A1-ND3G-50
