点击放大查看

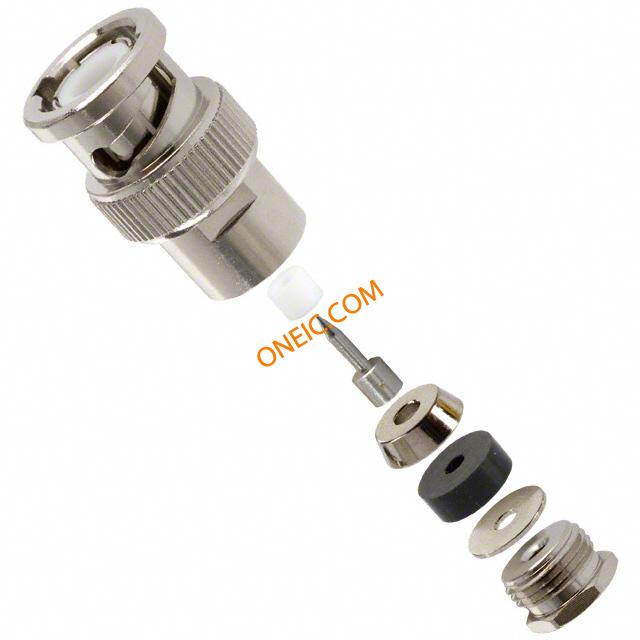

15875
| 制造商 | Amphenol Corporation |
| 描述 | RF Connectors ST CLMP PLG 178 196 CONN BNC PLUG STR 50 OHM SOLDER connector;rf coaxial;bnc straight plug;clamp/solder;for rg178;196 cable;50 ohm RF Connectors / Coaxial Connectors ST CLMP PLG 178 196 Conn BNC PL 0Hz to 4GHz 50Ohm Solder ST Cable Mount Silver ADAPTOR, RF COAXIAL, BNC TERM TYPE LEGEND H-C-C = Hex Crimp Center Contact and Braid O-C-C = "O" Crimp Center Contact and Braid H-C = Captive Center Contact and Braid H-C = Captive Center Contact and Braid * 10BASE-2 IEEE 802.3 |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 000-15875 16R0491 51F3824 713-9658 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 1 |
合规参数
| RoHS | Compliant | 海关税号 | 85366910 |
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 耦合系数 | Bayonet | 最大频率 | 4GHz |
| 绝缘电阻 | 5000 MOhms | ||
机械参数
| 重量 | 0.001 | 包装方式 | Bulk |
| 电缆类型 | RG-178, RG-196 | 本体表面处理 | Nickel |
| 电缆组 | RG-178, 196 | 方向 | Straight |
| 端接方式 | :Clamp / Solder | 重量（g） | 16.00000 |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Silver | 紧固类型 | Bayonet Lock |
| 连接器样式 | BNC | 触头材料 | Brass |
| 端接样式 | Cable - Clamp | 屏蔽层端接方式 | Clamp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Silver | 中心触点材料 | Brass |
| 供应商器件封装 | Straight | 第一连接器安装类型 | :Cable |
产品信息
| 连接器性别 | Plug | 系列 | :- |
| 极性 | Standard | 射频系列/标准 | BNC |
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | -65°C ~ 165°C | ||
