点击放大查看

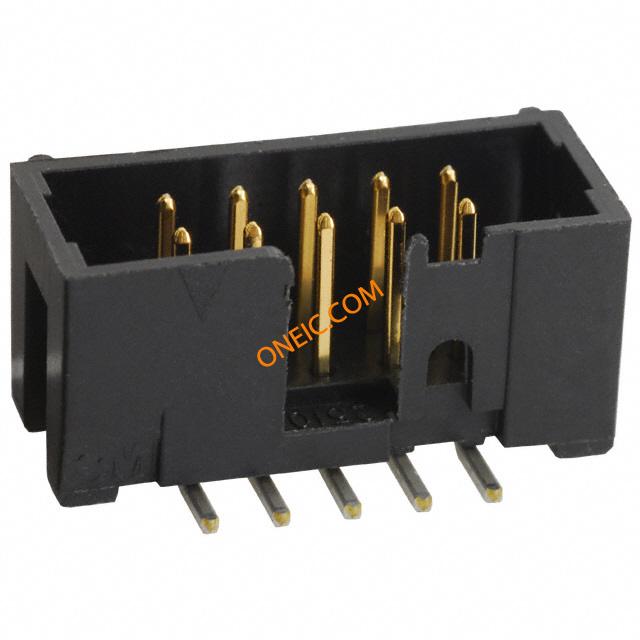

N2510-6V0C-RB-WD
| 制造商 | 3M Company |
| 描述 | Conn Shrouded Header HDR 10 POS 2.54mm Solder ST SMD T/R CONN HEADER 10POS SMT VERT 30AU 3M 2500 Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings MOLDED PICK CAP 10 PIN 30u GOLD HEADER, SMT, 10WAY 2500SeriesLowProfileSMT4wallHeader,Straight,.100X.10010position Socket; IDC; male; PIN:10; vertical; SMT; gold plated; 2A; 2.54mm Pin header SMD, DIN 41651 10P, N2510-6V0C-RB-WD, 3M 3M 2500 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 2A , 表面安装 10P IDC HEADER SMD HIGH TEMP |
| 分类 |
商业参数
| 其他名称 | MSH10KCT | 零件号别名 | 05111174272 80000913550 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 200 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | cUL,UL | 材料阻燃等级 | :UL 94V-0 |
电气参数
| 量程（°/s） | :3M - 2500 Series | 最大额定电流 | 2A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |

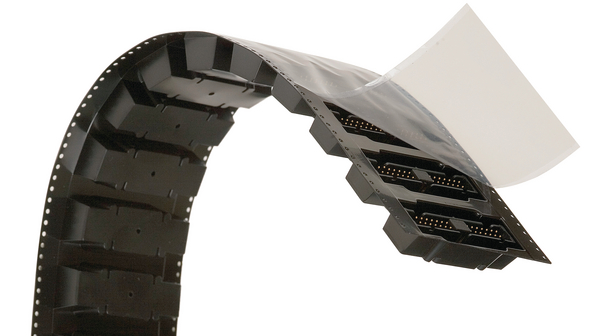

| 重量 | 0.01 | 包装方式 | Tape & Reel (TR) |
| 出线方向 | LowProfile | 方向 | vertical |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚长度（针脚） | 0.112" |
| 柱间距 | 2.54mm | 安装类型 | Surface Mount |
| 行程角度 | Straight | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | GlassFilledPolyester |
| 总长度 | 0.788" | 包装数量 | 200 |
| 主要材料 | HighTemperature | 连接器 - 电缆 | socket |
| 插针孔直径 | 0.1" | 端接样式 | SMD |
| 连接器颜色 | :Black | 触点数 | 10 |
| 接触件端接 | :Surface Mount Vertical | 位数 | 10 |
| 接触长度 - 配合 | 0.243" (6.17mm) | 接触镀层厚度 | 30µin (0.76µm) |
| 触点材料 - 镀层 | gold plated | 第一连接器安装类型 | :PC Board |
| 第一连接器安装特征 | 2x5 | ||
产品信息
| SPG | 200 | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | 2500 |
| 产品特性 | Four-Wall | CAD图纸 | 3D CAD Model |
| 制造商全称 | 2500Series | 产品子类型 | Headers |
| 单元数量 | 1 | 加载位置数 | All |
环境参数
| 工作温度 | :105°C | ||
