点击放大查看

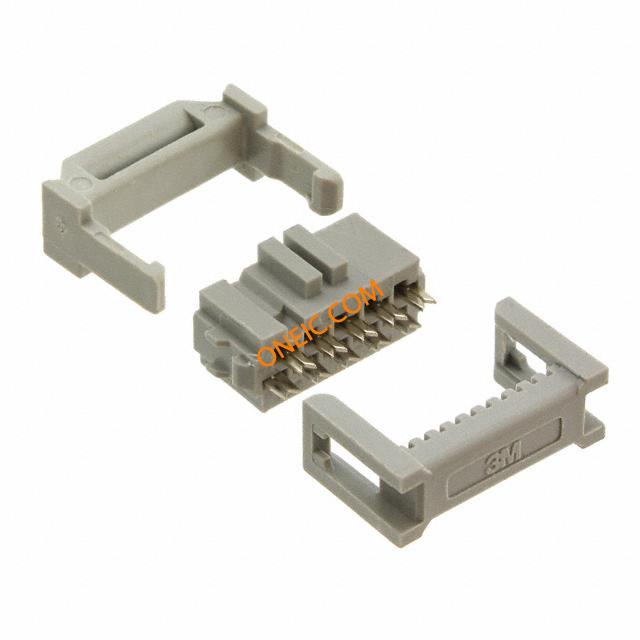

89110-0103

制造商	3M Company
描述	Headers & Wire Housings 10P IDC SOCKET .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN SOCKET 10 POS IDC W/STR REL 3M 891 Series 2.54mm 10 Way 2 Row Right Angle PCB Socket Cable Mount SOCKET, IDC, STRAIN, 10WAY StrainRelief;for10PosIDCRibbonCableSocket;0.100Inch;0.5InchPitch;CenterBump
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	05400754451 80610706360	产品类别	Headers & Wire Housings
标准包装数量	500	工厂包装数量	500

合规参数

RoHS

Compliant

海关税号

85366990

电气参数

量程（°/s）

:3M - 891 Series

最大额定电流

4.25A

机械参数

颜色	Gray	间距	0.100" (2.54mm)
重量	4 lbs	包装方式	Bulk
导线类型	Ribbon Cable	导线线规	26-28 AWG
排间距	0.100" (2.54mm)	端接方式	IDT
触头类型	Female Socket	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	接触镀层	Gold
安装样式	Cable	排数	2
触头材料	Phosphor Bronze	电缆端接方式	IDC
端接样式	IDC	第一触头极性	Socket (Female)
触点数	10	接触件端接	:IDC / IDT
位数	10	接触镀层厚度	30µin (0.76µm)

产品信息

类型	Ribbon Cable	连接器性别	:Socket
系列	891	产品特性	Feed Through; Polarizing Key, Strain Relief
产品子类型	Receptacles / Sockets - Housings

文档与媒体

PDF 文档

746299.pdf
