4664-7000
| 制造商 | 3M Company |
| 描述 | Conn Ejector Header PL 64 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 64POS W/FLANGE Headers & Wire Housings 64 CON CLSD END W/MNT FLNG |
| 分类 |
商业参数
| 零件号别名 | 05400735742 80610171250 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Gray | 间距 | 2.54 mm |
| 重量 | 4.400 lbs | 包装方式 | Bulk |
| 导线类型 | Discrete or Ribbon Cable | 导线线规 | 26-28 AWG, Stranded or Solid |
| 排间距 | 0.100" (2.54mm) | 端接方式 | IDT |
| 触头类型 | Male Pin | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug | 接触镀层 | Gold Over Nickel |
| 安装样式 | Wire | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 电缆端接方式 | IDC | 第一触头极性 | Pin (Male) |
| 触点数 | 64 | 位数 | 64 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Ejector Header | 连接器性别 | PL |
| 系列 | 4600 | 产品特性 | Closed End |
| 产品子类型 | Headers | 应用细节 | Wire-to-Wire |
相关型号
7964-6500EC
3M Electronic Solutions Division
Headers & Wire Housings 64P WIREMOUNT SOCKET .100" Ã .100" Wiremount, 64 Position for .050" Pitch Cable IDC SOCKET CONN 64 POS GOLD 64 way IDC bump polarised socket Conn IDC Connector SKT 64 POS 2.54mm IDT RA Cable Mount SOCKET, IDC, 64WAY Socket,PLClip,64position Multipole socket DIN 41651 64P, 7964-6500EC, 3M 3M 2行 64路 2.54mm节距 直角 电缆安装 母 IDC 连接器
3448-4664
3m interconnect solutions
Connector Accessories 64 POS Strain Relief Stainless Steel Gray Headers & Wire Housings STRAIN RELIEF FOR 64P CNCTR Headers & Wire Housings 64 P PLUG STRAIN RELIEF 64 POS Strain Relief Clip 64P, 3448-4664, 3M
CHG-2064-001010-KCP
3m interconnect solutions
64/2R/WM SKT/.100/28AWG/30 GOLD CONN RECEPT IDC 64POS 28-26 AWG Headers & Wire Housings 64/2R/WM SKT/.100 28AWG/30 GOLD
9164-4500PL
3m interconnect solutions
Conn Socket Strip SKT 64 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Centerbump Polarization with Straight Solder Tails, 20 - 64 contacts CONN SOCKET 64POS .100" STR GOLD Headers & Wire Housings POLARIZED BDMNT SCKT 64 PIN
CHG-2064-S01010-KCP
3m interconnect solutions
Conn IDC Connector SKT 64 POS 2.54mm Crimp ST Cable Mount .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RCPT IDC 64POS 28-26AWG Headers & Wire Housings 64P POLAR WRMNT SCKT W/OUT CENTERBUMP
CHG-2064-J01010-KCP
3m interconnect solutions
Conn IDC Connector SKT 64 POS 2.54mm Crimp ST Cable Mount .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 64POS 28-26 AWG Headers & Wire Housings 64P PLR WIREMNT SKT 2R W/CENTERBUMP
CHG-2064-S01010-KEP
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 64/2R/WM SKT/.110/ POL/22G/30G .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RCPT IDC 64POS 24-22AWG Headers & Wire Housings 64/2R/WM SKT/.110/ POL/22G/30G
CHG-2064-J01010-KEP
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング WIREMT SKT 64 POSITION .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 64POS 24-22 AWG Headers & Wire Housings WIREMT SKT 64 POSITION WIRE-BOARD CONN, SOCKET, 64POS, 2.54MM
CHG-2064-001010-KEP
3M Electronic Solutions Division
Headers & Wire Housings 64 CONTACTS 26/28AWG SOLID/STRANDED CONN RECEPT IDC 64POS 24-22 AWG

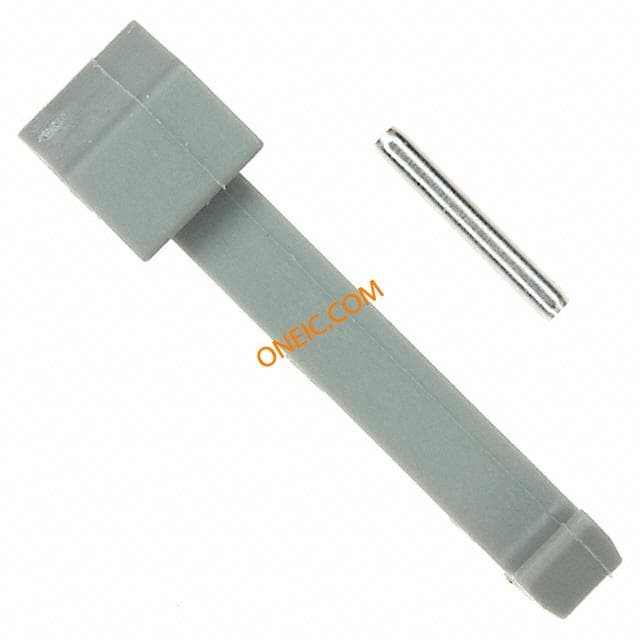

3505-17
