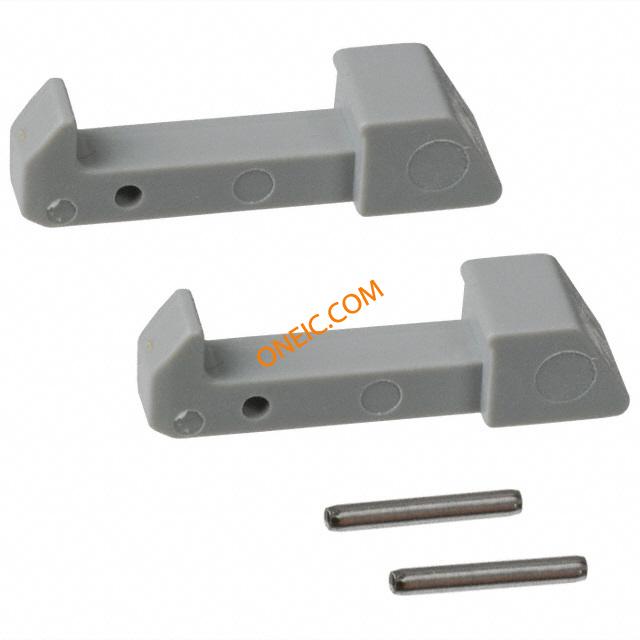

3505-16

点击放大查看

3505-16

制造商
3M Company
描述Headers & Wire Housings SHORT LATCH EJECTOR .100" × .100" Connector For .050" Pitch Cable LOCK EJECTOR HOOKS - SHORT Short ejector latch for cable plug,1A EJECTOR, SHORT Latch;ShortEjector/Latch Ejector/latchP, 3505-16, 3M 3M 闩锁, 使用于4600 系列
分类
连接器解决方案压接与焊接端子/接头压接端子（通用）
对参数有疑问？问 AI 助手

商业参数

零件号别名05400737443 80610192249产品类别Headers & Wire Housings
标准包装数量200工厂包装数量200

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (19-Dec-2012)
海关税号85369010RoHS合规（认证）Yes

机械参数

间距2.54 mm重量1.060 lbs
连接器类型:Hardware接触镀层Gold
排数2第一触头极性Pin (Male)
触点数4

产品信息

系列3000产品子类型Accessories
附件类型Ejector Latch, Short适用产品/相关产品4600 Series

文档与媒体

PDF 文档
6352.pdf
在线文档
mediawebserver?mwsId=66666UuZjcFSLXTt4Xf6NXz6EVuQEcuZgVs6EVs6E666666--
