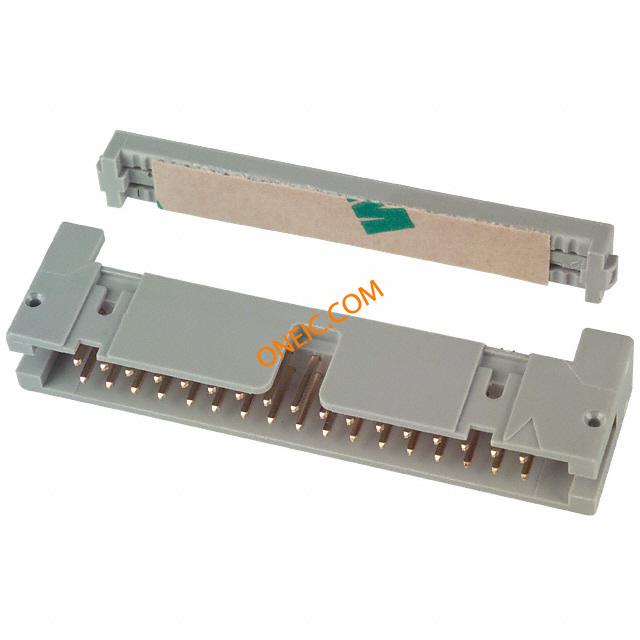

4634-6001

点击放大查看

4634-6001

制造商
3M Company
描述ヘッダ & ワイヤハウジング 34P OPEN END PLUG IDC SHROUDED HEADER 34P HEADER WIREMOUNT PLUG OPEN .100" × .100" Connector For .050" Pitch Cable PLUG CONNECTOR 34 POS W/O FLANGE 3M 4600 Series 2.54mm Pitch 34 Way 2 Row Right Angle PCB Header, IDT Termination, 1A Headers & Wire Housings 34P OPEN END PLUG IDC SHROUDED HEADER Conn Ejector Header PL 34 POS 2.54mm IDT RA Cable Mount HEADER, IDC, NO LUGS, 34WAY Plug,WireMount;4600Series;1.97in.Lx0.25in.Hx0.16in.W;34;1A Pin strip DIN 41651 34P, 4634-6001, 3M 3M 4600 系列 2行 34路 2.54mm节距 直角 电缆安装 公 连接器
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

最小起订量1单位包装300
零件号别名05400735709 80610170922产品类别Headers & Wire Housings
标准包装数量300工厂包装数量100

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义RoHS-conform认证机构UL E68080
RoHS合规（认证）Yes

电气参数

量程（°/s）:3M - 4600 Series额定电压1000V
最大额定电流1A

机械参数

颜色Gray深度8.4 mm
间距0.100" (2.54mm)高度13.34 mm
重量2.200 lbs包装方式Bulk
导线类型Discrete or Ribbon Cable出线方向NO
导线线规28 TO 26方向STRAIGHT
排间距0.100" (2.54mm)端接方式IDT
触头类型FEMALE柱间距2.54mm
外壳颜色Gray安装类型Free Hanging (In-Line)
连接器类型Plug接触镀层Gold
安装样式Wire排数2
触头材料Copper Alloy壳体材料IDC
总长度53.3 mm电缆端接方式IDC
第一触头极性Pin (Male)触点数34
接触件端接:IDC / IDT位数34
接触镀层厚度30µin (0.76µm)触点材料 - 镀层GOLD
第一连接器安装类型:Cable

产品信息

类型Ejector Header连接器性别PL
系列4600已删除Compliant
产品特性Feed Through匹配码46346001
产品子类型Headers标准交期7 weeks
其他规格NO应用细节Wire-to-Wire

环境参数

插拔次数1工作温度-55 TO 105°C

文档与媒体

PDF 文档
6352.pdf
在线文档
mediawebserver?mwsId=66666UuZjcFSLXTt4Xf6NXz6EVuQEcuZgVs6EVs6E666666--
