点击放大查看

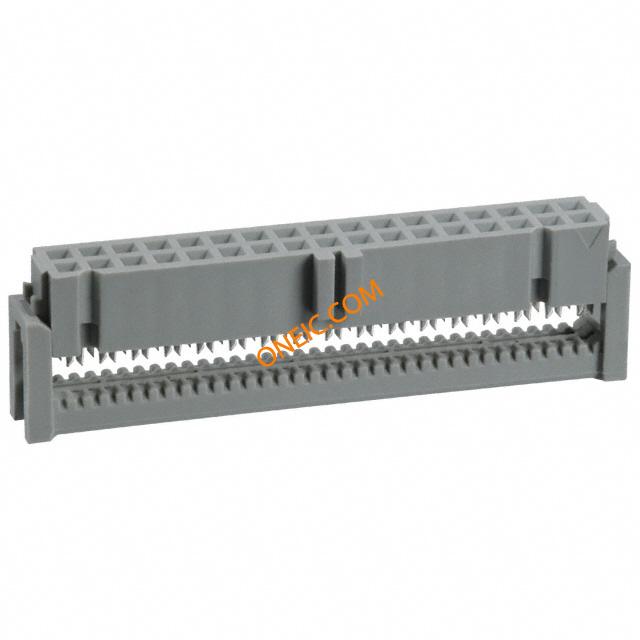

89134-0101

制造商	3M Company
描述	Conn IDC Connector SKT 34 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN 34 POS IDC SOCKET GOLD POL IDC Ribbon Cable Socket 34 way Headers & Wire Housings 34P IDC SOCKET Socket;GlassFilledPolyester;CopperAlloy;Nickel(Underplating);1A;Gray
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	05400751555 80610657316	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	500

合规参数

RoHS

Lead free / RoHS Compliant

RoHS合规（认证）

Yes

电气参数

最大额定电流

1.25A

机械参数

颜色	Gray	深度	6.1 mm
间距	2.54 mm	高度	10.7 mm
重量	7 lbs	包装方式	Bulk
导线类型	Ribbon Cable	导线线规	26-28 AWG
排间距	0.100" (2.54mm)	端接方式	IDT
触头类型	Female Socket	外壳颜色	Gray
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	Cable
排数	2	触头材料	Phosphor Bronze
壳体材料	PBT	总长度	47.8 mm
电缆端接方式	IDC	端接样式	IDC
第一触头极性	Socket (Female)	触点数	34
位数	34	接触镀层厚度	30µin (0.76µm)

产品信息

类型	IDC Connector	连接器性别	SKT
系列	891	已删除	Compliant
产品特性	Feed Through, Polarizing Key	产品子类型	Receptacles / Sockets - Housings

环境参数

工作温度

+105°C

文档与媒体

在线文档

mediawebserver.dyn?6666660Zjcf6lVs6EVs666UC5COrrrrQ-

在线文档

891xx-0y01

在线文档

output_html
