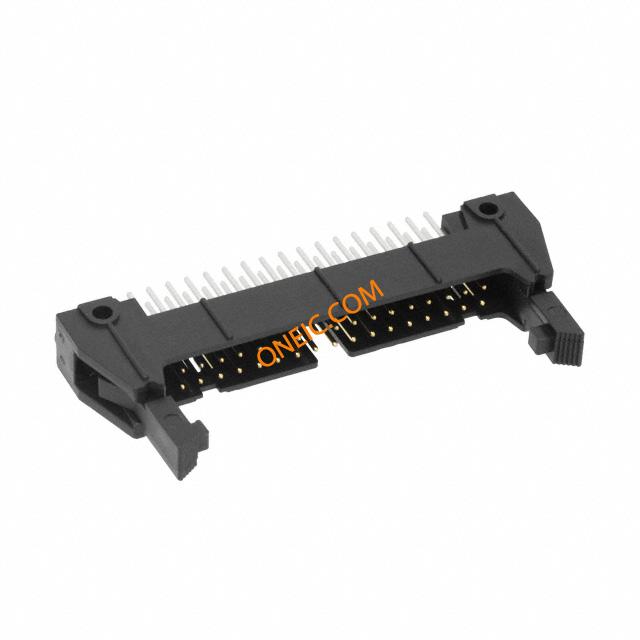

N3431-6302RB

点击放大查看

N3431-6302RB

制造商
3M Company
描述Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole .100" × .100" Latch/Ejector, Straight and Right Angle CONN HEADER 34POS STR LONG LATCH 3M 3000 Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings 34P STRT LONG PIN SOLDER TAIL 30u GOLD HEADER, STRAIGHT, L/LATCH, 34WAY Header;Latch-Ejector,4-Wall;0.1In;CopperAlloy;1.75A;HighTempPlastic;Str;34Cnts Socket; IDC; male; PIN:34; straight; with ejector; THT; gold plated sale 3M 3000 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔 34P FOUR WALL HEADER HIGH TEMP
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名05111162776 80400031847产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量100

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (19-Dec-2012)
海关税号85369010RoHS合规（认证）Yes
材料阻燃等级:UL94V-0

电气参数

量程（°/s）:3M - 3000 Series额定电压:350V
工作电压:350V接触电阻:20mohm
最大额定电流2A绝缘电阻:1000Mohm
连接器类型 - 电压输入with ejector

机械参数

颜色Black深度8.6 mm
间距2.54 mm高度27.2 mm
重量0.017包装方式Bulk
方向straight排间距0.100" (2.54mm)
端接方式Solder触头类型Male Pin
引脚间距:2.54mm柱间距2.54mm
外壳颜色Black安装类型Through Hole
连接器类型Header, Shrouded接触镀层Gold Over Nickel
紧固类型Latch, Long/Eject Hooks安装样式Through Hole
排数2触头材料Copper Alloy
总长度62.61 mm包装数量200
连接器 - 电缆socket端接样式Through Hole
连接器颜色:Black触点数34
接触件端接:Through Hole Vertical位数34
安装孔直径:0.89mm接触长度 - 配合0.240" (6.10mm)
接触镀层厚度30µin (0.76µm)触点材料 - 镀层gold plated
第一连接器安装特征216°

产品信息

SPG200类型Ejector Header
连接器性别HDR系列3000
产品子类型Headers单元数量1
加载位置数All

环境参数

插拔次数:200测试温度:70°C
工作温度-55C to 105C

文档与媒体

PDF 文档
94653.pdf
