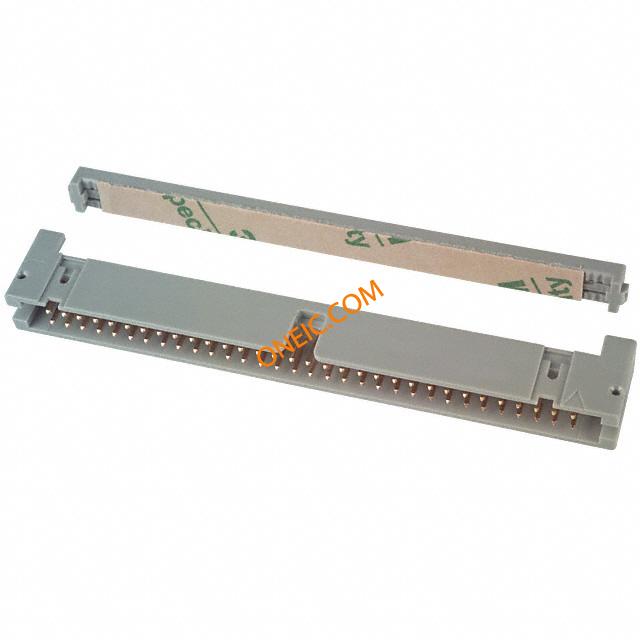

4664-6001

点击放大查看

4664-6001

制造商
3M Company
描述Conn IDC Connector PL 64 POS 2.54mm IDT RA Cable Mount .100" × .100" Connector For .050" Pitch Cable PLUG CONNECTOR 64 POS W/O FLANGE 3M 4600 Series 2.54mm Pitch 64 Way 2 Row Right Angle PCB Header, IDT Termination, 1A Headers & Wire Housings 64 CONTACTS,OPEN END WIREMOUNT PLUG Pin strip DIN 41651 64P, 4664-6001, 3M
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名05400735739 80610171227产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量100

合规参数

RoHSLead free / RoHS CompliantRoHS合规（认证）Yes
材料阻燃等级UL 94 V-0

电气参数

测试电压1极数64
最大额定电流1A

机械参数

颜色Gray间距2.54 mm
重量3.800 lbs包装方式Bulk
导线类型Discrete or Ribbon Cable电缆类型Discrete or Ribbon Cable
导线线规26-28 AWG, Stranded or Solid排间距0.100" (2.54mm)
端接方式IDT触点形式Male Pin
触头类型Male Pin引脚间距0.100" (2.54mm)
安装类型Free Hanging (In-Line)连接器类型Plug
接触镀层Gold Over Nickel安装样式Wire
排数2触头材料Copper Alloy
壳体材料Polybutylene Terephthalate (PBT)电缆端接方式IDC
第一触头极性Pin (Male)触点数64
位数64第一连接器极性Male
接触镀层厚度30µin (0.76µm)

产品信息

类型IDC Connector连接器性别PL
系列4600产品特性Feed Through
主要用途Feed Through产品子类型Headers
放大器类型91.4输出配置Free Hanging (In-Line)
应用细节Wire-to-Wire

环境参数

工作温度-55...+105 °C

文档与媒体

在线文档
mediawebserver?mwsId=66666UuZjcFSLXTt4Xf6NXz6EVuQEcuZgVs6EVs6E666666--
