4664-6000

点击放大查看

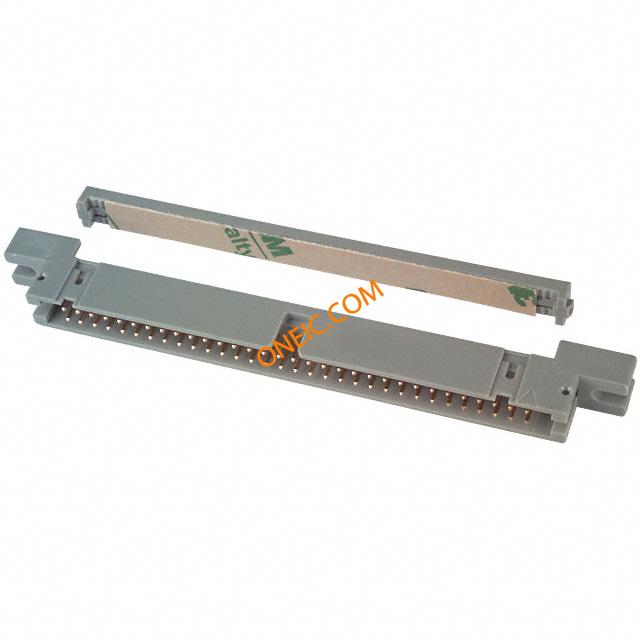

4664-6000

制造商
3M Company
描述Headers & Wire Housings 64P MOUNTING FLANGE .100" × .100" Connector For .050" Pitch Cable PLUG CONNECTOR 64 POS W/FLANGE 3M 4600 Series 2.54mm Pitch 64 Way 2 Row Right Angle PCB Header, IDT Termination, 1A HEADER, IDC, LUGGED, 64WAY Pin strip DIN 41651 64P, 4664-6000, 3M
分类
对参数有疑问?问 AI 助手

商业参数

零件号别名05400735738 80610171219产品类别Headers & Wire Housings
标准包装数量100工厂包装数量100

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (19-Dec-2012)
海关税号85369010RoHS合规(认证)Yes
材料阻燃等级:UL94V-0

电气参数

量程(°/s):3M - 4600 Series额定电压1 kV
开关功能Unlatched工作电压:350V
接触电阻:20mohm最大额定电流1A
绝缘电阻:1000Mohm

机械参数

颜色Gray间距0.100" (2.54mm)
重量4 lbs材料(通用):Glass Filled Polyester (PBT)
包装方式Bulk导线类型Discrete or Ribbon Cable
导线线规26-28 AWG, Stranded or Solid排间距0.100" (2.54mm)
端接方式IDT触头类型Male Pin
引脚间距:2.54mm安装类型Free Hanging (In-Line)
连接器类型Plug接触镀层Gold
安装样式Wire排数2
触头材料Copper Alloy壳体材料Polybutylene Terephthalate (PBT)
电缆端接方式IDC第一触头极性Pin (Male)
连接器颜色:Grey触点数64
接触件端接:IDC / IDT位数64
接触镀层厚度30µin (0.76µm)第一连接器安装类型:Cable

产品信息

类型Ejector Header连接器性别:Plug
系列4600产品特性Feed Through
产品子类型Headers应用细节Wire-to-Wire

环境参数

插拔次数:200测试温度:70°C
工作温度:105°C
