Power Integrations, Inc.- 评估与开发套件
评估与开发套件 - 型号列表
共 62 个型号| 制造商零件编号 | 库存 | 价格 | 标准包装数量 | RoHS | 内容 | 使用的IC/零件 | 最小输入电压 | 输出及类型 | 输出电流 | 主要用途 | 产品类别 | 其他名称 | 产品 | 稳压器拓扑 | 电路板厚度 | 机械寿命 | 额定输出功率 | 包装方式 | 核心类型 | 供电电压 | 适用产品/相关产品 | 应用细节 | 输出电流/通道 | 产品特性 | 套件内容 | SVHC | 海关税号 | 元件数量 | 重量 | 套件类型 | 芯片组制造商 | 开关频率 | 类型 | 工具类型/特性 | 额定电压 | 输出端 | 模块/板类型 | 嵌入式 | 技术 | 卡标准 | 主要特性 | 次要特性 | 尺寸/外形 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Power Management IC Development Tools Output: 3.3V 5V 12V -24V @ 20W KIT DESIGN ACCELERATOR SET TOP Power Integrations | - | 1 | No | Board | TOP245 | 3.3V, 5V, 12V, -24V | 4, Isolated | 1.2A, 600mA, 200mA, 50mA | AC/DC, Primary Side | Power Management IC Development Tools | 596-1003 | - | Flyback | Fully Populated | Obsolete | 25W | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |

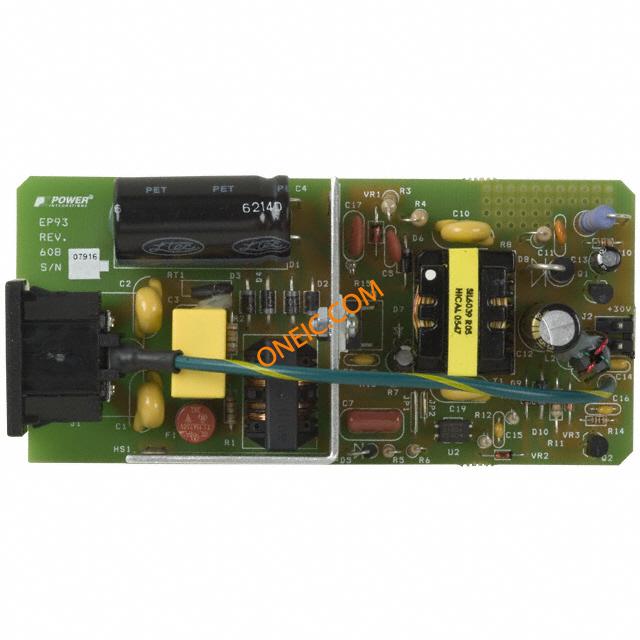

 AC-DC PEAK MODE POWER SUPPLY Power Management IC Development Tools ACDC peak mode power Supply PeakSwitch KIT DESIGN ACC PEAKSWITCH FAMILY Switching controller design kit, DAK-93, Power Integrations power integrations | 10 | 1: ¥679.66 | 1 | No | Board, Samples, Software | PKS604, PKS605, PKS606 | 30V | 1, Isolated | 1.07A | AC/DC, Primary Side | - | 596-1126 | - | Flyback | Bare (Unpopulated) and Fully Populated | - | 32W | Bulk | - | - | - | Power pack | - | - | - | - | - | - | - | - | - | - | - | - | - | 30 V @ 32 W (81 W Peak) | PeakSwitch | - | - | - | - | - | - | - |
 LED DRIVER REFERENCE DESIGN LED Lighting Development Tools LED Drvr Ref Des LinkSwitch-PH KIT REF DESIGN FOR LNK403EG LNK403EG, LED DRIVER, EVAL BOARD power integrations | 10 | 1: ¥637.50 | 1 | RoHS Compliant | Board | LNK403EG | 21V | 1, Non-Isolated | 330 mA | - | - | - | Design Kits | - | - | - | - | Box | LNK403EG | 90 V to 265 V | LEDs | :LED | 330mA | Dimmable with Standard TRIAC Dimmer, Power Factor Correction | :Eval Board LNK403EG | :No SVHC (20-Jun-2013) | 84733020 | :LNK403EG | 0.002 | :Drivers | :Power Integrations | - | - | - | - | - | - | - | - | - | - | - | - | - |
 DC-DC CONVERTER OUTPUT: 3.3 V @ 6.6 W DC-DC CONVERTER Power Management IC Development Tools Output: 3.3V @ 6.6W KIT DESIGN ACCELERATOR DC-DC power integrations | 11 | 1: ¥195.092 | 1 | No | Board, Samples, Software | DPA423, DPA424, DPA425 | 3.3V | 1, Isolated | 2 A | DC/DC, Step Down | Power Management IC Development Tools | 596-1009 | Reference Designs | Flyback | Bare (Unpopulated) and Fully Populated | - | - | Box | - | - | - | - | - | - | - | - | - | - | - | - | - | 400kHz | DC/DC Converters, Regulators & Controllers | DPA423G | 36 V to 72 V | - | - | - | - | - | - | - | - | - |
 VARIABLE SPEED MOTOR DRIVE DEMO BOARD VARIABLE SPEED MOTOR DRIVE Power Management IC Development Tools Variable Spd Mtr Drv 90-265V PeakSwitch KIT REF DESIGN 36-72W MOTOR DRVR RDK-128, Development Kit, CD with Software, Reference Board, Sample ICs power integrations | 72 | 1: ¥810.39 | 1 | No | Bare and Populated Boards, Sample ICs, Software | PKS606 | - | - | - | Power Management, Motor Control | - | 596-1198 | - | - | - | - | - | Bulk | - | - | - | - | - | - | CD with Software, Reference Board, Sample ICs | - | - | - | - | - | - | - | - | - | - | - | - | No | Power Management | Development Kit | Variable Speed 12V 36W DC Motor, 90 ~ 265 VAC | External Potentiometer or Variable DC Voltage Speed Control | - | - |
 5 V, 1 A / 5V, 700 MA / 6V, 300 MA Power Management IC Development Tools LinkSwitch II Reference Design Kit KIT REF DESIGN LINKSWITCH 2 power integrations | - | 1 | RoHS Compliant | 6 Boards | LNK603, LNK604, LNK605, LNK606, LNK613, LNK614, LNK615, LNK616 | 85 ~ 265 VAC | 1, Isolated | - | AC/DC, Primary Side | Power Management IC Development Tools | 596-1235 | Power Management Modules | Flyback | Bare (Unpopulated) and Fully Populated | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Power Drivers | LNK60x, LNK61x | - | - | - | - | - | - | - | - | - | - | |
 REFERENCE DESIGN REPORT FOR A LOW-POWER, LOW-COST 180 W PFC KIT REF DESIGN HIPERPFS LED Lighting Development Tools UNIVERSAL PFC 180W HiperPFS KIT power integrations | 10 | 1: ¥637.50 | 1 | No | Board | PFS708 | 15V, 380V | 2, Isolated | 474mA, 200mA | AC/DC, Primary and Secondary Side with PFC | - | - | Design Kits | Flyback | Fully Populated | - | 180W | - | PFS708EG | 90 VAC to 264 VAC | PFS708EG | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 REFERENCE DESIGN REPORT FOR 4.5 W POWER FACTOR CORRECTED LED LED Lighting Development Tools LED PFC DRIVER KIT 4.5W E17 LAMP KIT REF DESIGN LINKSWITCH-PL power integrations | 10 | 1: ¥637.50 | 1 | No | Board | LNK458 | 35V | 1, Non-Isolated | 130 mA | - | - | - | Design Kits | - | - | New At Mouser | - | - | LNK458KG | 85 VAC to 135 VAC | LNK458KG | - | 130mA | Short-Circuit and Thermal Protection | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Power Management IC Development Tools Output: 3.3V 5V 30V @ 10W KIT DESIGN ACCELERATOR MODEM Power Integrations | 10 | 1: ¥179.889 | 1 | No | Board | TOP243 | 3.3V, 5V, 30V | 3, Isolated | 30 mA, 900 mA, 1.5 A | AC/DC, Primary Side | Power Management IC Development Tools | 596-1002 | Evaluation Boards | Flyback | Fully Populated | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | 10W | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 132kHz | AC/DC Converters | TOP242-250 | 85 VAC to 265 VAC | - | - | - | - | - | - | - | 113 mm x 39 mm x 25 mm | + 50 C |
Power Management IC Development Tools Output: 9 V @ 3 W KIT DESIGN ACCELERATOR ADAPTER Power Integrations | 10 | 1: ¥110.092 | 1 | No | Board | TNY264 | 9V | 1, Isolated | 330mA | AC/DC, Primary Side | Power Management IC Development Tools | 596-1000 | - | Flyback | Fully Populated | - | 3W | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 132kHz | - | - | - | - | - | - | - | - | - | - | - | - |
Power Management IC Development Tools Opt 145W 1 W stby KIT DESIGN ACCELERATOR PC Power Integrations | 10 | 1: ¥611.592 | 1 | No | Board | - | - | - | - | Reference Design, PC Power Supply | Power Management IC Development Tools | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Power Management IC Development Tools Output: 12V @ 1.44W KIT DESIGN ACCELERATOR AC-DC Power Integrations | - | 1 | No | Board | LNK304 | 12V | 1, Non-Isolated | 120mA | AC/DC, Non-Isolated | Power Management IC Development Tools | 596-1005 | - | Buck | Fully Populated | Obsolete | 1.44W | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 66kHz | - | - | - | - | - | - | - | - | - | - | - | - | |
Power Management IC Development Tools Output:12V @ 45W KIT DESIGN ACCELERATOR LCD ADAPT Power Integrations | - | 1 | No | Board | - | - | - | - | Reference Design, Power Supply | Power Management IC Development Tools | - | - | - | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 Power Management IC Development Tools AC-DC Adapter, Output: 12 V @ 12 W,TinySwitch-III,Samples and Complete Documentation DESIGN ACCELERATOR KIT III SWTCH Power Integrations | 10 | 1: ¥132.124 | 1 | No | Board | TNY278 | 12V | 1, Isolated | 1A | AC/DC, Primary Side | Power Management IC Development Tools | 596-1106 | - | Flyback | Fully Populated | Obsolete | 12W | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Power Management IC Development Tools Output: 12V @ 1.2W 12V @ 2.4W 5V @2.5W KIT DESIGN ACCELERATOR APPLIANCE Power Integrations | - | 1 | No | - | - | - | - | - | - | Power Management IC Development Tools | 596-1008 | - | - | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
Power Management IC Development Tools Output: 180W 1W standby KIT DESIGN ACCELERATOR PC CONV Power Integrations | - | 1 | No | Board | - | - | - | - | Reference Design, PC Power Supply | Power Management IC Development Tools | - | - | - | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 REFERENCE DESIGN FOR A HIGH EFFICIENCY, HIGH POWER FA LED Lighting Development Tools RefDesign 90-265V.5A OutputLinkSwitch-PH REFERENCE DESIGN LINKSWITCH-PH LNK406EG, LED DRIVER, EVAL BOARD power integrations | 10 | 1: ¥688.56 | 1 | No | Board | LNK406EG | 28V | 1, Isolated | 0.5 A | - | - | - | Design Kits | - | - | - | - | Bulk | LNK406EG | 90 VAC to 265 VAC | LNK406EG | :LED | 500mA | Dimmable, TRIAC Dimmable | :Eval Board LNK406EG | :No SVHC (20-Jun-2013) | 84733020 | :LNK406EG | 0.002 | :Drivers | :Power Integrations | - | - | - | - | - | - | - | - | - | - | - | - | - |
 REFERENCE DESIGN FOR A 1.1 W NON-DIMMABLE POWER FACTOR CORRE LED Lighting Development Tools RefDesign 1.1W 85-265V LinkSw-PL REFERENCE DESIGN LINKSWITCH-PL LNK454DG, LED DRIVER, 1.1W, EVAL BOARD power integrations | 10 | 1: ¥577.048 | 1 | No | Board | LNK454DG | 2.5 V ~ 3.5 V | 1, Non-Isolated | 366 mA | - | - | - | Design Kits | - | - | - | - | Bulk | LNK454DG | 85 VAC to 265 VAC | LNK454DG | :LED | 366mA | :- | :Eval Board LNK454DG | :No SVHC (20-Jun-2013) | 84733020 | :LNK454DG | 0.002 | :Drivers | :Power Integrations | - | - | - | - | - | - | - | - | - | - | - | - | - |
 REFERENCE DESIGN FOR A 12 W NON-ISOLATED, BUCK TOPOLOGY, POW LED Lighting Development Tools RefDesign 12W90-265V LinkSwitch-PH REFERENCE DESIGN LINKSWITCH-PH LNK405EG, LED DRIVER, 12W, EVAL BOARD power integrations | 10 | 1: ¥688.56 | 1 | No | Board | LNK405EG | 36V | 1, Non-Isolated | 330 mA | - | - | - | Design Kits | - | - | - | - | Bulk | LNK406EG | 90 VAC to 265 VAC | LNK406EG | :LED | 330mA | :- | :Eval Board LNK405EG | :No SVHC (20-Jun-2013) | 84733020 | :LNK405EG | 0.002 | :Drivers | :Power Integrations | - | - | - | - | - | - | - | - | - | - | - | - | - |
 5 W DIMMABLE POWER FACTOR CORRECTED LED DRIVER REFERENCE DES LED Lighting Development Tools LinkSwitch-PL Ref Des Kit, 5W Dim KIT REF DESIGN FOR LNK457D LNK457DG, LED DRIVER, 5W, EVAL BOARD power integrations | 10 | 1: ¥688.56 | 1 | Lead free / RoHS Compliant | Board | LNK457D | 12 V ~ 18 V | 1, Isolated | 350 mA | - | - | - | Design Kits | - | - | - | - | - | LNK457DG | 90 V to 265 V | LED Strings | :Power Factor Correction (PFC) | 350mA | Dimmable | :Eval Board LNK457DG | :No SVHC (20-Jun-2013) | 84733020 | :LNK457DG | 0.002 | :Power Management | :Power Integrations | - | - | - | - | - | - | - | - | - | - | - | - | - |
