DAK-93
| 制造商 | |

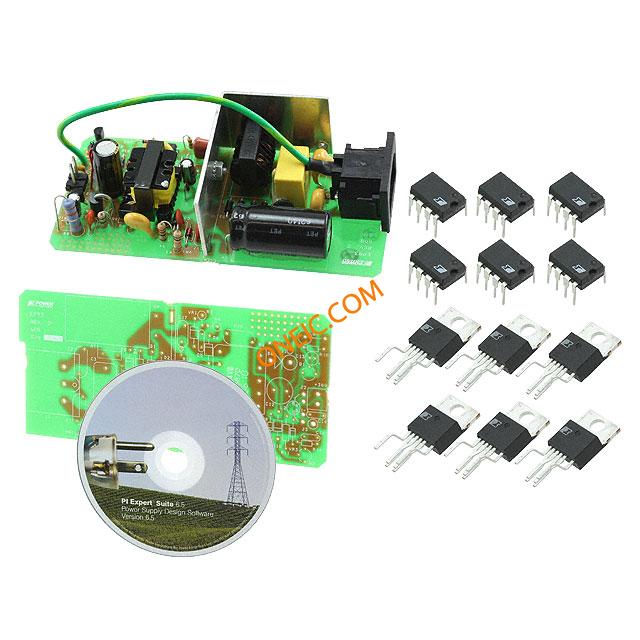

| 描述 | AC-DC PEAK MODE POWER SUPPLY Power Management IC Development Tools ACDC peak mode power Supply PeakSwitch KIT DESIGN ACC PEAKSWITCH FAMILY Switching controller design kit, DAK-93, Power Integrations |
| 分类 |
商业参数
| 其他名称 | 596-1126 | 标准包装数量 | 1 |
合规参数
| RoHS | No | ||
电气参数
| 输出端 | 30 V @ 32 W (81 W Peak) | 额定输出功率 | 32W |
| 输出电流 | 1.07A | 稳压器拓扑 | Flyback |
| 最小输入电压 | 30V | ||
机械参数

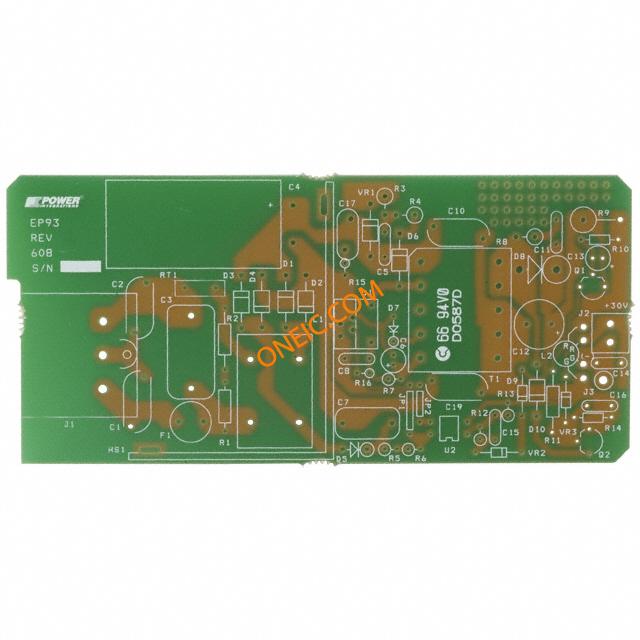

| 包装方式 | Bulk | 电路板厚度 | Bare (Unpopulated) and Fully Populated |
产品信息
| 内容 | Board, Samples, Software | 主要用途 | AC/DC, Primary Side |
| 输出及类型 | 1, Isolated | 模块/板类型 | PeakSwitch |
| 使用的IC/零件 | PKS604, PKS605, PKS606 | 应用细节 | Power pack |
