点击放大查看

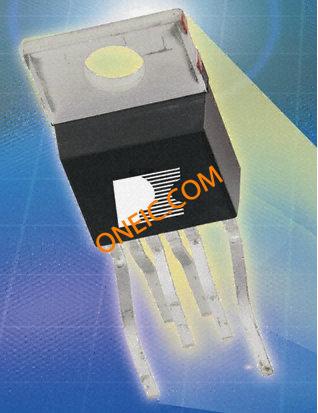

PKS606YN
| 制造商 | |
| 描述 | Off Line Switcher 6-Pin(6+Tab) TO-220-C IC OFFLINE SWIT OTP OCP HV TO220 PKS606YN, Intelligent Power Switch Off Line Switcher, 117W, 6-Pin, TO-220-7C |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | 596-1122-5 | 标准包装数量 | Rail / Tube |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 功率（瓦） | 117W | 额定功率 | 117W |
| 频率范围 | 250kHz ~ 304kHz | 输出隔离 | Isolated |
| 击穿电压 | 700V | ||
机械参数
| 宽度 | 4.7mm | 长度 | 10.67mm |
| 包装方式 | Tube | 安装类型 | Through Hole |
| 封装形式 | 6TO-220-C | 冷却的封装 | TO-220-7C |
| 位数 | 6 | 供应商器件封装 | TO-220-7C |
产品信息
| 开关类型 | Off Line Switcher | ||
环境参数
| 工作温度 | -40 to 150 °C | ||
文档与媒体
相关型号

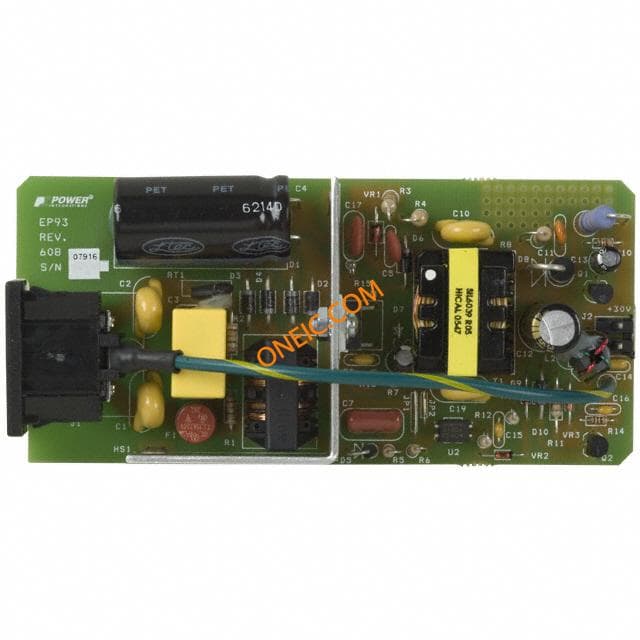

DAK-93
power integrations
AC-DC PEAK MODE POWER SUPPLY Power Management IC Development Tools ACDC peak mode power Supply PeakSwitch KIT DESIGN ACC PEAKSWITCH FAMILY Switching controller design kit, DAK-93, Power Integrations
¥679.6600
详情
RDK-128
power integrations
VARIABLE SPEED MOTOR DRIVE DEMO BOARD VARIABLE SPEED MOTOR DRIVE Power Management IC Development Tools Variable Spd Mtr Drv 90-265V PeakSwitch KIT REF DESIGN 36-72W MOTOR DRVR RDK-128, Development Kit, CD with Software, Reference Board, Sample ICs
¥810.3900
详情

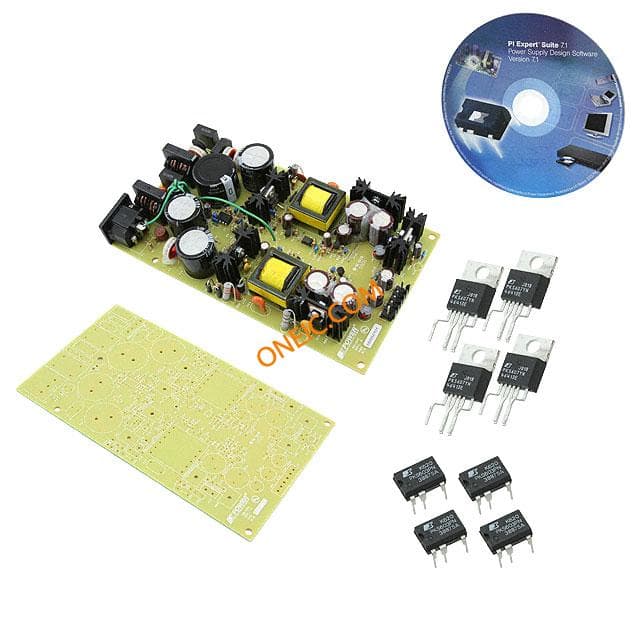

RDK-203
