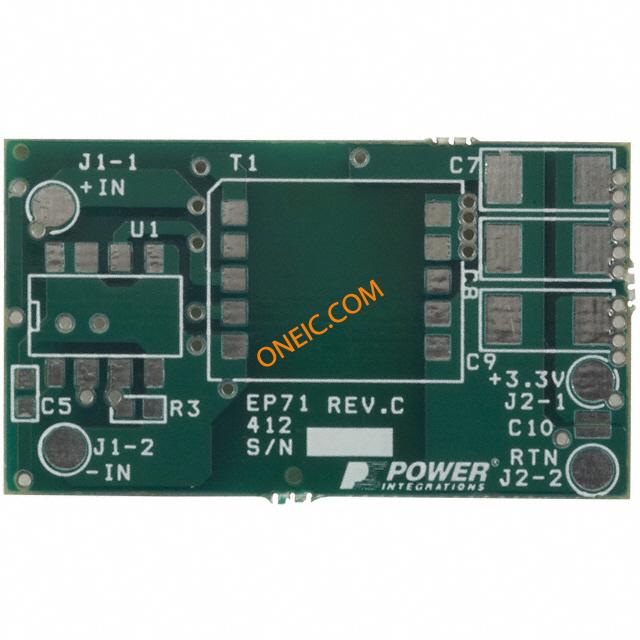

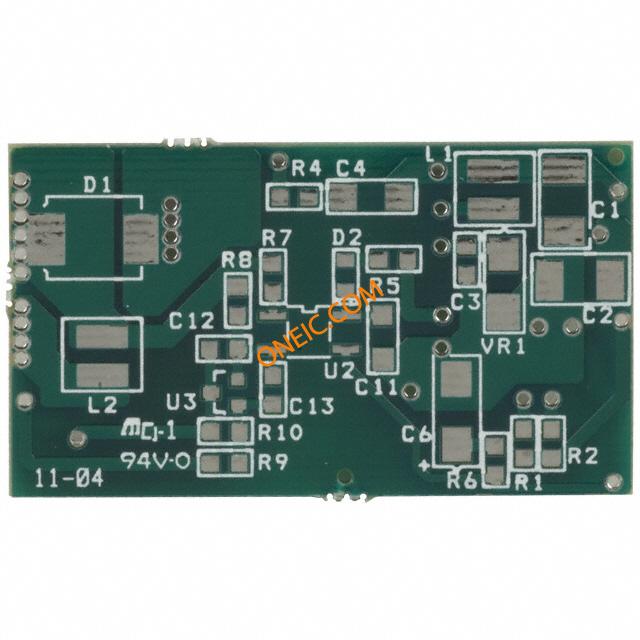

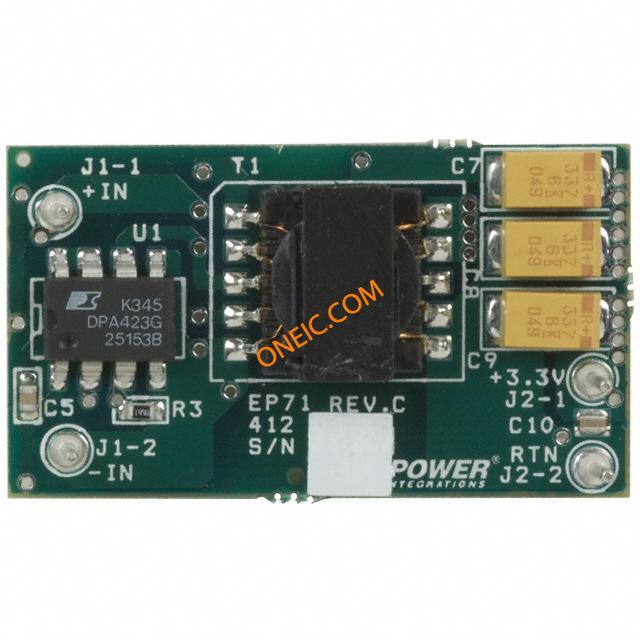

DAK-71A
| 制造商 | |
| 描述 | DC-DC CONVERTER OUTPUT: 3.3 V @ 6.6 W DC-DC CONVERTER Power Management IC Development Tools Output: 3.3V @ 6.6W KIT DESIGN ACCELERATOR DC-DC |
| 分类 |
商业参数
| 产品 | Reference Designs | 其他名称 | 596-1009 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | 1 |
合规参数
| RoHS | No | ||
电气参数
| 额定电压 | 36 V to 72 V | 输出电流 | 2 A |
| 稳压器拓扑 | Flyback | 开关频率 | 400kHz |
| 最小输入电压 | 3.3V | ||
机械参数
| 包装方式 | Box | 电路板厚度 | Bare (Unpopulated) and Fully Populated |
产品信息

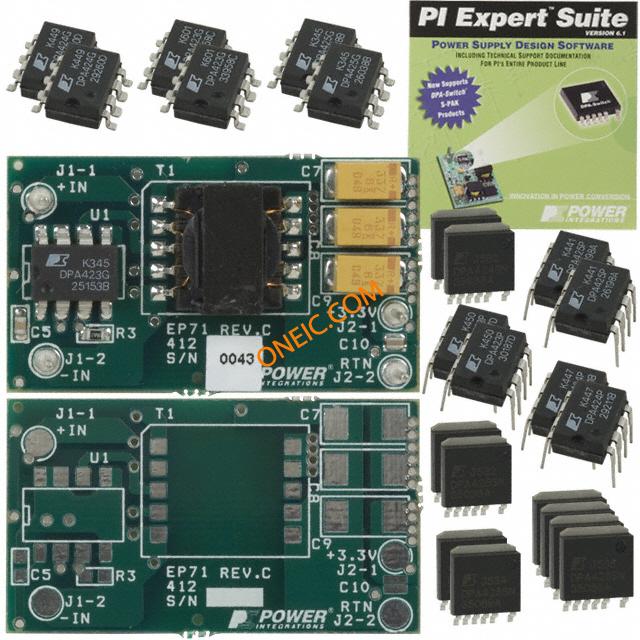

| 类型 | DC/DC Converters, Regulators & Controllers | 内容 | Board, Samples, Software |
| 主要用途 | DC/DC, Step Down | 输出及类型 | 1, Isolated |
| 工具类型/特性 | DPA423G | 使用的IC/零件 | DPA423, DPA424, DPA425 |
