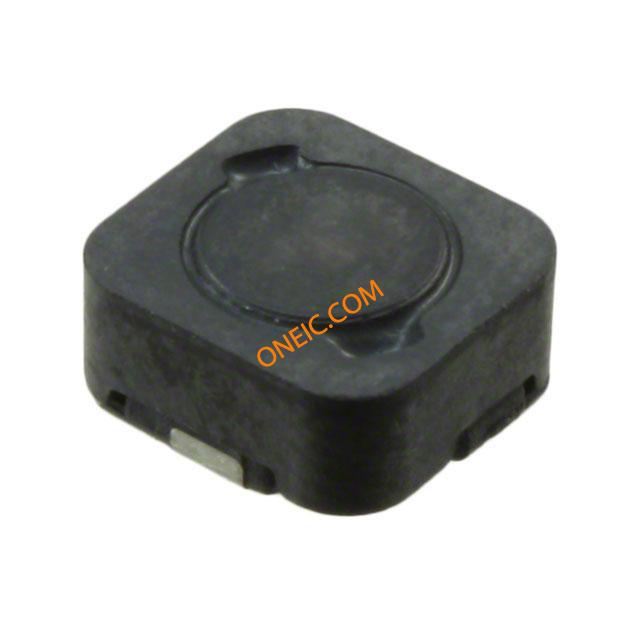

7447785004
| 制造商 | Würth Elektronik GmbH & Co. KG |
| 描述 | INDUCTOR POWER 4.7UH 2.2A SMD Fixed Inductors WE-PD Inductor 4.7uH 2.2A 0.078ohm CHOKE, SMD, 4.7UH Wurth WE-PD 系列 屏蔽 绕线贴片电感器, 4.7 μH ±25%, 2.65A Idc |
| 分类 |
商业参数
| 产品 | SMD Power Inductors | 其他名称 | 732-4126-2 |
| 产品类别 | Fixed Inductors | 标准包装数量 | 1,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85045095 | ||
电气参数
| 核心类型 | :Shielded | 阻抗 | :0.06ohm |
| 容差 | ±25% | 电感量 | 4.7µH |
| 量程（°/s） | :WURTH ELEKTRONIK - WE-PD Series | 测试频率 | 100kHz |
| 电感量范围 | :± 25% | 直流电阻（DCR） | 78 mOhm Max |
| 最大额定电流 | 2.65A | 直流电阻（DCR）（最大） | :0.078ohm |
| 自谐振频率 | 53MHz | 饱和电流（Isat） | :2.5A |
| 串联饱和电流 | 2.5A | 初始电阻（最小） | 78 mOhms |
| 通态电流（It (RMS)）（最大） | :2.65A | ||
机械参数
| 宽度 | 6.2 mm | 重量 | 0.0008 |
| 包装方式 | Tape & Reel (TR) | 屏蔽 | Shielded |
| 安装类型 | Surface Mount | 引脚数 | :2 |
| 封装形式 | Non Standard | 磁芯材质 | Ferrite |
| 主要材料 | :Plastic | 尺寸/外形 | 0.244" L x 0.232" W (6.20mm x 5.90mm) |
| 端接样式 | SMD/SMT | 总体尺寸 | :6.2mm x 5.9mm x 3.3mm |
| 安装高度（最大） | 0.130" (3.30mm) | ||
产品信息
| 类型 | Wirewound | 系列 | WE-PD |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
