点击放大查看
662006113322
| 制造商 | |
| 描述 | RECEPTACLE 3MM FEMALE DUAL 6POS Headers & Wire Housings WR-MPC3 RECPTL 3.0MM FEMALE DUAL 6POS RECEPTACLE, 3MM, DUAL, 6WAY Wurth Elektronik WR-MPC3 系列 2 行 3mm 节距 6 路 直 母 电缆安装 PCB 连接器外壳 |
| 分类 |
商业参数
| 其他名称 | 732-1960 | 标准包装数量 | 1,000 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366990 | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 5 A |
| 绝缘电阻 | 1000 MOhms | ||
机械参数
| 颜色 | Black | 间距 | 0.118" (3.00mm) |
| 重量 | 0.0017 | 包装方式 | Bulk |
| 排间距 | 0.118" (3.00mm) | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 排数 | 2 |
| 壳体材料 | Nylon | 端接样式 | SMD |
| 第一触头极性 | Socket (Female) | 触点数 | 6 |
| 接触件端接 | Crimp | 位数 | 6 |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Socket |
| 系列 | WR-MPC3 | 产品子类型 | Plugs - Housings |
| 应用细节 | Wire-to-Board | ||
环境参数
| 工作温度 | - 25 C to + 105 C | ||
文档与媒体
相关型号
794617-6
te connectivity / amp
Conn Housing RCP 6 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 6POS DL MATE-N-L 6 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 6P Conn Housing RCP 6 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 6Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, 2 ROW, 6 WAY, NYLON Connector,SoftShell;Nylon;Receptacle;Black;6;Dual;0.118in.;UL94V-0 Plug; wire-board; female; PIN:6; w/o terminals; 3mm; for cable Crimp housing Pitch3 mm Poles 2 x 3 MATE-N-LOK Micro, 794617-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 6 路 直 母 连接器外壳 6POS,MICRO MNL,RCPT HSG
66200113722DEC
Wurth Electronics Inc
TERMINAL 3MM FEMALE 20-24AWG CONTACT, SKT, 24-20 AWG, CRIMP Wurth Elektronik WR-MPC3 系列 母 锡 铜合金触点 DIN 连接器触点

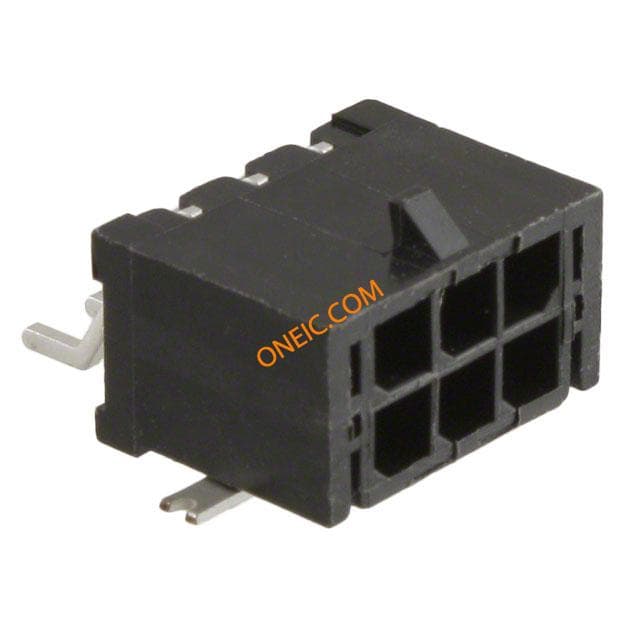

662006231722
Wurth Electronics Inc
HEADER 3MM MALE DUAL ANG 6P SMD Headers & Wire Housings WR-MPC3 HDR 3.0MM MALE DUAL ANG 6P SMD HEADER, 3MM, DUAL, R/A, SMT, 6WAY Wurth Elektronik WR-MPC3 系列 3mm节距 6路 (2排) 直角 PCB 针座, 焊接端接, 5A , 通孔

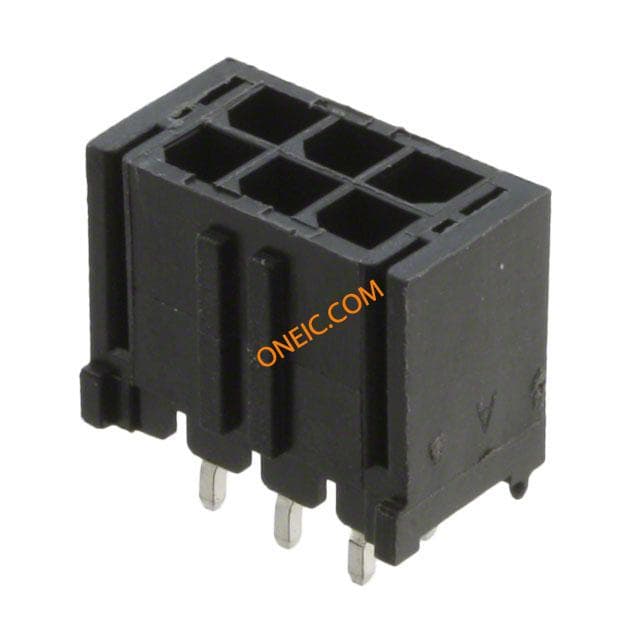

66200621122
Wurth Electronics Inc
HEADER 3.00MM DUAL VERT 6POS Headers & Wire Housings WR-MPC3 3.00mm HDR 6P Dual Vertical HEADER, VERTICAL, DUAL ROW, 6 WAY Wurth Elektronik WR-MPC3 系列 3mm节距 6路 (2排) 直 PCB 针座, 焊接端接, 5A , 通孔
662100124015
Wurth Electronics Inc
WR-MPC3 3,00 MM PRE-CRIMPED CONT CRIMP LEAD, SKT, 3MM, 20-24AWG, 150MM Wurth Elektronik WR-MPC4 系列 母 预压接电线, 压接
662162120030
Wurth Electronics Inc
WR-MPC3 3,00 MM PRE-CRIMPED CONT CRIMP LEAD, SKT, 3MM, 20-24AWG, 300MM Wurth Elektronik WR-MPC4 系列 母 预压接电线, 压接
662006235922
Wurth Electronics Inc
WR-MPC3 MICRO POWER CONNECTOR HEADER, 3.0MM, DUAL ROW, CLIP, 6WAY WR-MPC3 POWER CONNECTOR 6POS Wurth Elektronik WR-MPC3 系列 3mm节距 6路 (2排) 直 PCB 针座, 焊接端接, 5A , 通孔
662006236022
Wurth Electronics Inc
WR-MPC3 MICRO POWER CONNECTOR HEADER, 3MM,DUAL ROW R/A, PEGS,6WAY WR-MPC3 POWER CONNECTOR 6POS Wurth Elektronik WR-MPC3 系列 3mm节距 6路 (2排) 直角 PCB 针座, 焊接端接, 5A , 通孔

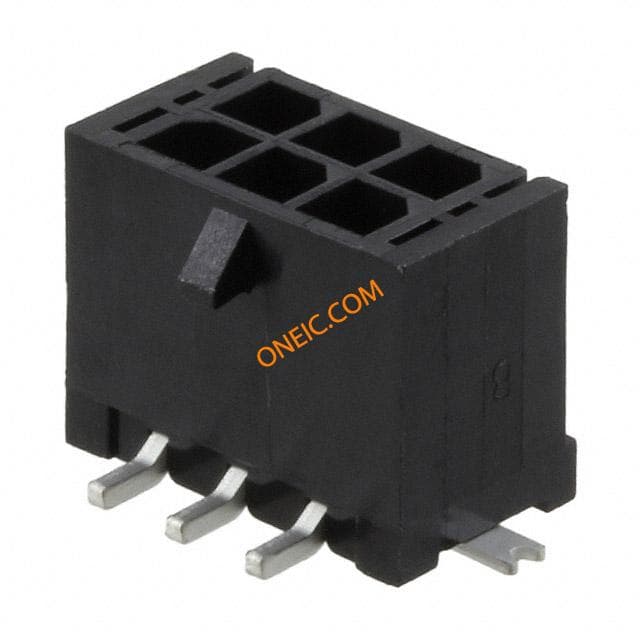

662006231822
Wurth Electronics Inc
WR-MPC3 MICRO POWER CONNECTOR HEADER, 3MM, DUAL, VERT, SMT, 6WAY WR-MPC3 POWER CONNECTOR 6POS Wurth Elektronik WR-MPC3 系列 3mm节距 6路 (2排) 直 PCB 针座, 焊接端接, 5A , 通孔

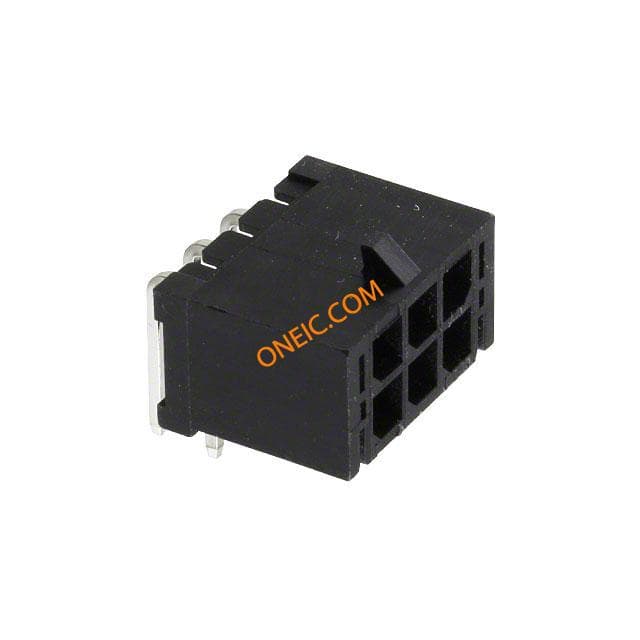

66200621022
Wurth Electronics Inc
WR-MPC3 MICRO POWER CONNECTOR HEADER, 3MM, DUAL, R/A, PEG, 6WAY WR-MPC3 POWER CONNECTOR 6POS Wurth Elektronik WR-MPC3 系列 3mm节距 6路 (2排) 直角 PCB 针座, 焊接端接, 5A , 通孔
