794617-6

点击放大查看

794617-6

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 6 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 6POS DL MATE-N-L 6 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 6P Conn Housing RCP 6 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 6Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, 2 ROW, 6 WAY, NYLON Connector,SoftShell;Nylon;Receptacle;Black;6;Dual;0.118in.;UL94V-0 Plug; wire-board; female; PIN:6; w/o terminals; 3mm; for cable Crimp housing Pitch3 mm Poles 2 x 3 MATE-N-LOK Micro, 794617-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 6 路 直 母 连接器外壳 6POS,MICRO MNL,RCPT HSG
分类
连接器解决方案矩形连接器FPC/FFC矩形连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
海关税号85369010无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250 V最大额定电流5 A
最小输入电压250VAC最小供电电压250VAC
连接器类型 - 电压输入w/o terminals

机械参数

颜色Black深度14.04mm
间距3 mm宽度11.7mm
高度11.7 mm长度10mm
重量0.00227包装方式Bulk
导线线规20 AWG排间距0.118" (3.00mm)
触头类型Female Socket柱间距3mm
外壳颜色Black安装类型Straight
连接器类型Receptacle紧固类型Latch Lock
安装样式Wire排数2
封装形式Receptacle触头材料Phosphor Bronze
壳体材料Nylon总长度3.00 [0.118]
包装数量1连接器 - 电缆plug
端接样式Crimp第一触头极性Socket (Female)
连接器颜色:Black触点数6
接触件端接Crimp位数6
第一连接器安装特征2x3

产品信息

SPG1备注Contacts Not Provided
类型Housing连接器性别RCP
系列MATE-N-LOKCAD图纸3D CAD Model
产品子类型Housing适配器系列Micro MATE-N-LOK
单元数量1适用产品/相关产品Centerline Soft Shell Pin & Socket Connector

环境参数

工作温度-40C to 105C

文档与媒体

PDF 文档
1650928.pdf
在线文档
794617-6?RQPN=794617-6

相关型号

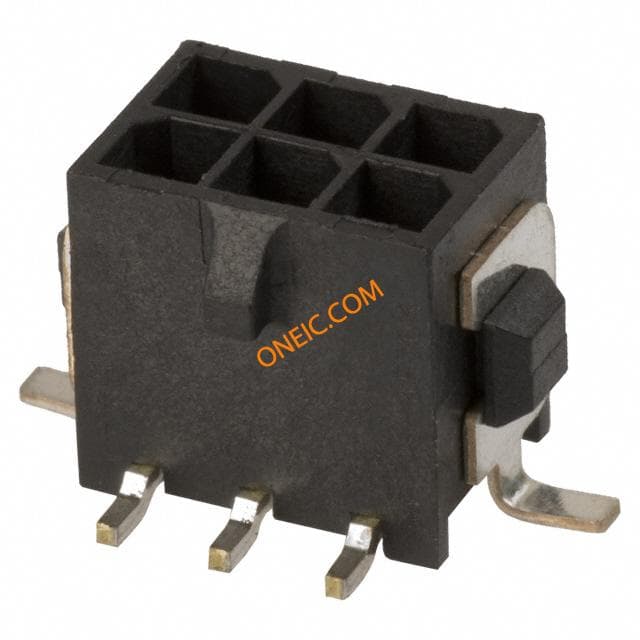

3-794638-6

3-794638-6

te connectivity / amp

Conn Power HDR 6 POS 3mm Solder ST SMD 6 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 6POS DUAL GOLD SMD Power to the Board HDR ASSY 6 POS 30 AU VERT SMT 3mm Centerline, 250V, 5 A max. Product Highlights:ConnectorHeaderConnector Style = PlugContact Type = PinSurface Mount Contact Termination TypeSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector 06P MICRO MNL ASSY,VRT,SMT,LF

¥7.3440
详情
794636-6

794636-6

te connectivity / amp

Conn Power HDR 6 POS 3mm Solder ST SMD 6 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 6POS DUAL TIN SMD Power to the Board HDR ASSY 6 POS TIN VERT SMT Conn Power HDR 6 POS 3mm Solder ST SMD 6 Terminal 1 Port Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥5.9160
详情
794616-6

794616-6

te connectivity / amp

Conn Housing PL 6 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 6POS DL MATE-N-LOK Housing,plug,micro Mate-n-lok,2 row,6Way Pin & Socket Connectors PLUG DUAL F.H. 6P free hanging Conn Housing PL 6 POS 3mm ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 6Number of Rows = DualMount Type = Free HangingSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONNECTOR HOUSING, PLUG, 6 WAY, NYLON PLUG & SOCKET HOUSING, PLUG, NYLON SoftShellHousing;Nylon;Black;0.118in.;FreeHanging;Plug;6;UL94V-0 Crimp housing Pitch3 mm Poles 6 MATE-N-LOK Micro, 794616-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 6 路 直 公 压接连接器外壳 FREE HANG DBL ROW HSG 6 POS

¥1.3450
详情

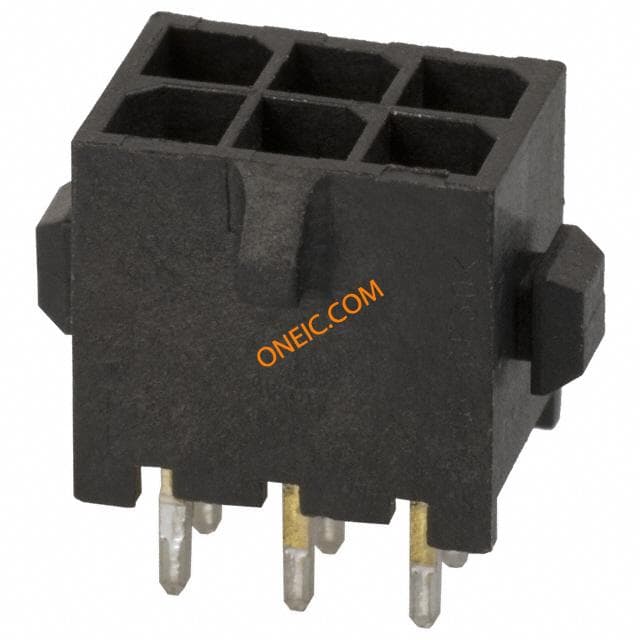

794632-6

794632-6

te connectivity / amp

Conn Power HDR 6 POS 3mm Solder ST Thru-Hole 6 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 6POS DUAL GOLD Power to the Board HDR ASSY 6 POS VERT DUAL 30 AU 6POS MICRO MNL ASSY,VRT,HDR 6POS MICRO MNL ASSY,VRT,HDR Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥4.8280
详情

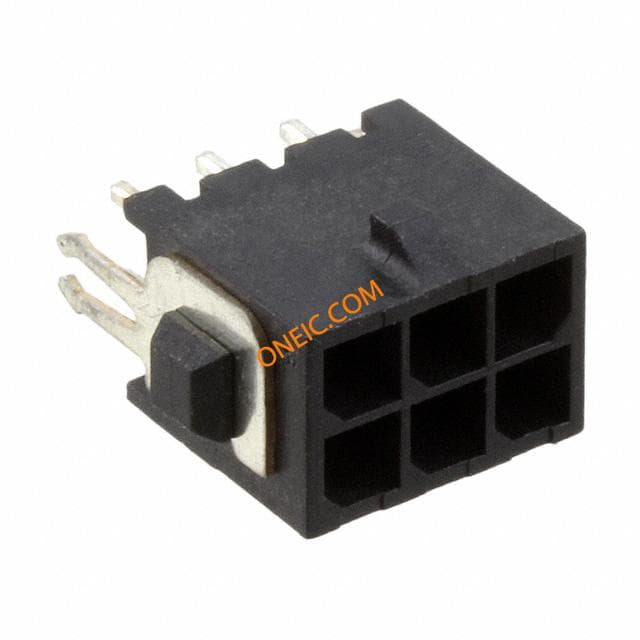

794682-6

794682-6

te connectivity / amp

Conn Power HDR 6 POS 3mm Solder ST Thru-Hole 6 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 6POS DL VERT 30GOLD Pin & Socket Connectors 6POS MICRO MNL ASSY VRT THRU Conn Power HDR 6 POS 3mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 6Number of Rows = DualVertical Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥5.1680
详情

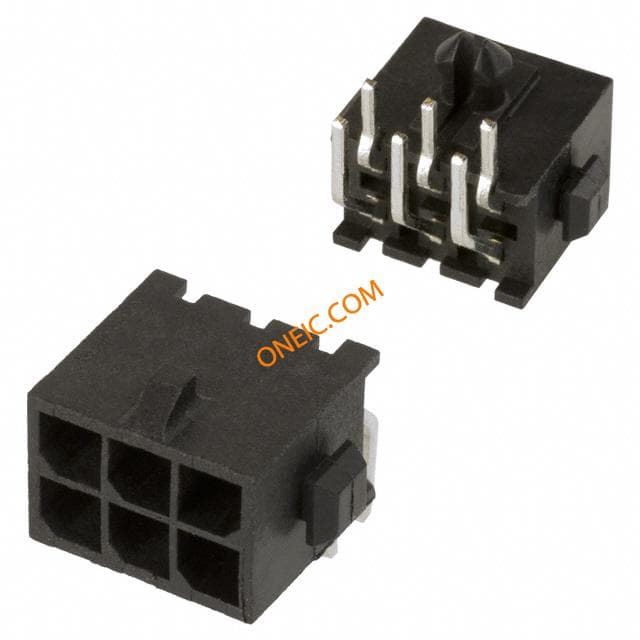

3-794618-6

3-794618-6

te connectivity / amp

Conn Power HDR 6 POS 3mm Solder RA Thru-Hole 6 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 6POS DUAL R/A TIN TE Connectivity MATE-N-LOK Series 3mm Pitch 6 Way Right Angle Heavy Duty Power Connector, Solder Termination, 5A Pin & Socket Connectors HDR R/A 6 POS TIN DUAL Conn Power HDR 6 POS 3mm Solder RA Thru-Hole 6 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 6Number of Rows = DualRight Angle Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HEADER, 2ROW, 6WAY 6WD/ROWPINHEADERR/A Pin header Pitch3 mm Poles 6 Contact DesignMale MATE-N-LOK, 3-794618-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm节距 6路 直角 PCB 针座, 焊接端接, 5A , 通孔 06P MICRO MNL ASSY R/A HDR LF

¥3.5020
详情
暂无图片

794637-6

te connectivity / amp

Conn Power HDR 6 POS 3mm Solder ST SMD 6 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 6POS DL 15GOLD SMD Pin & Socket Connectors 6POS MICRO MNL ASSY 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 6Number of Rows = DualVertical Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥6.7320
详情

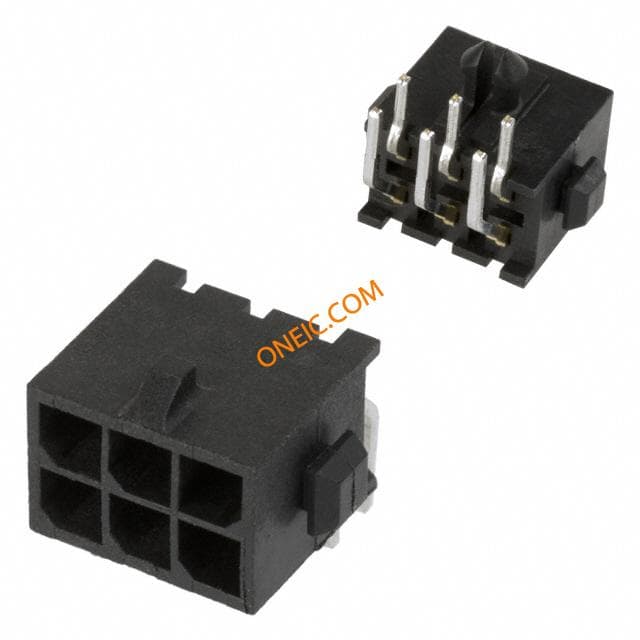

794620-6

794620-6

te connectivity / amp

Conn Power HDR 6 POS 3mm Solder RA Thru-Hole 6 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 6POS DUAL R/A GOLD Power to the Board HDR R/A 6 POS 30 AU DUAL 6POS MICRO MNL ASSY,R/A,HDR 6POS MICRO MNL ASSY,R/A,HDR Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥7.9601
详情
3-794630-6

3-794630-6

te connectivity / amp

Conn Power HDR 6 POS 3mm Solder ST Thru-Hole 6 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 6POS DUAL TIN TE Connectivity MATE-N-LOK Series 3mm Pitch 6 Way Straight Heavy Duty Power Connector, Solder Termination, 5A Pin & Socket Connectors HDR VERT 6 POS TIN DUAL Conn Power HDR 6 POS 3mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 6Number of Rows = DualVertical Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HEADER, VERTICAL, DUAL ROW, 6 WAY, NYLON 6WD/ROWPINHDRVERT Pin header Pitch3 mm Poles 6 Contact DesignMale MATE-N-LOK, 3-794630-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm节距 6路 直 PCB 针座, 焊接端接, 5A , 通孔 06P MICRO MNL ASSY VRT HDR LF

¥3.1307
详情

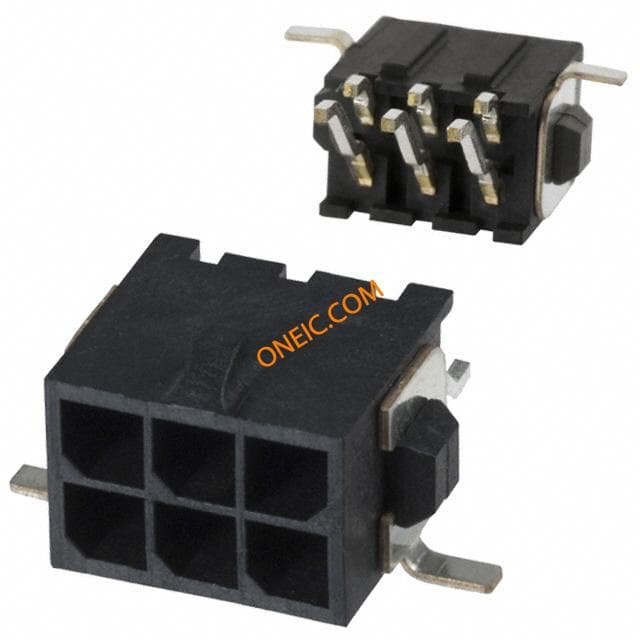

3-794627-6
