点击放大查看

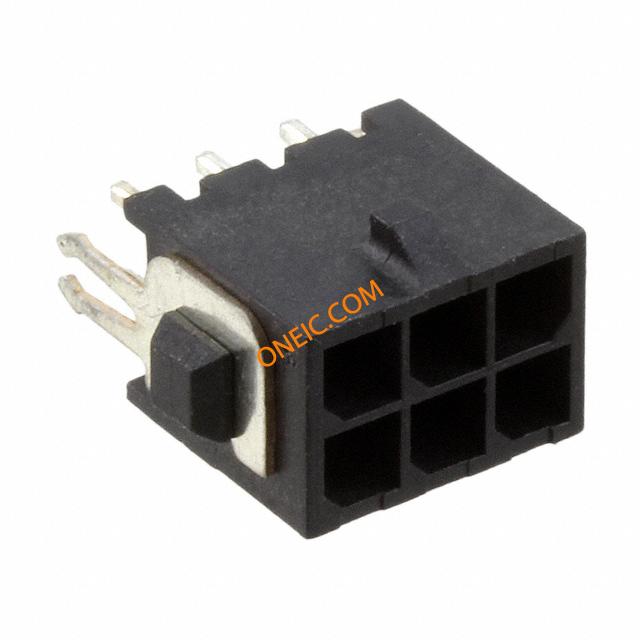

794682-6

制造商	TE Connectivity Ltd.
描述	Conn Power HDR 6 POS 3mm Solder ST Thru-Hole 6 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 6POS DL VERT 30GOLD Pin & Socket Connectors 6POS MICRO MNL ASSY VRT THRU Conn Power HDR 6 POS 3mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 6Number of Rows = DualVertical Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
分类	工具与焊接解决方案压接钳、压接机、压力机压接钳

对参数有疑问？问 AI 助手

商业参数

产品类别	Pin & Socket Connectors	标准包装数量	Trays
工厂包装数量	286

合规参数

RoHS	Contains lead / RoHS non-compliant	无铅定义	Not suitable for lead free processing
RoHS/ELV合规状态	Not ELV/RoHS compliant	材料阻燃等级	UL 94V-0

电气参数

接触电阻	20 mohm	最大额定电流	5/Contact A
最小供电电压	250VAC

机械参数

颜色	Black	深度	8.67 mm
间距	3 mm	高度	9.24 mm
镀层	Tin-lead	包装方式	Bulk
排间距	0.118" (3.00mm)	端接方式	Solder
触头类型	Male Pin	极化	Without
外壳颜色	Black	安装类型	Through Hole
连接器类型	Header, Shrouded	接触镀层	Tin-Lead
紧固类型	Locking Ramp	安装样式	Through-Hole
排数	Dual	触头材料	Brass
壳体材料	High Temperature Nylon	总长度	13 mm
触点数	2	位数	6
中心触点材料	3.00 [0.118]	接触镀层厚度	30µin (0.76µm)

产品信息

备注	Retention feature located on end contacts only.	类型	Power
连接器性别	HDR	产品特性	Board Lock
制造商全称	AMP	产品子类型	Header Assembly
端口数	1 Port	加载位置数	All

环境参数

工作温度

-40C to 105C

结工作温度

105C
