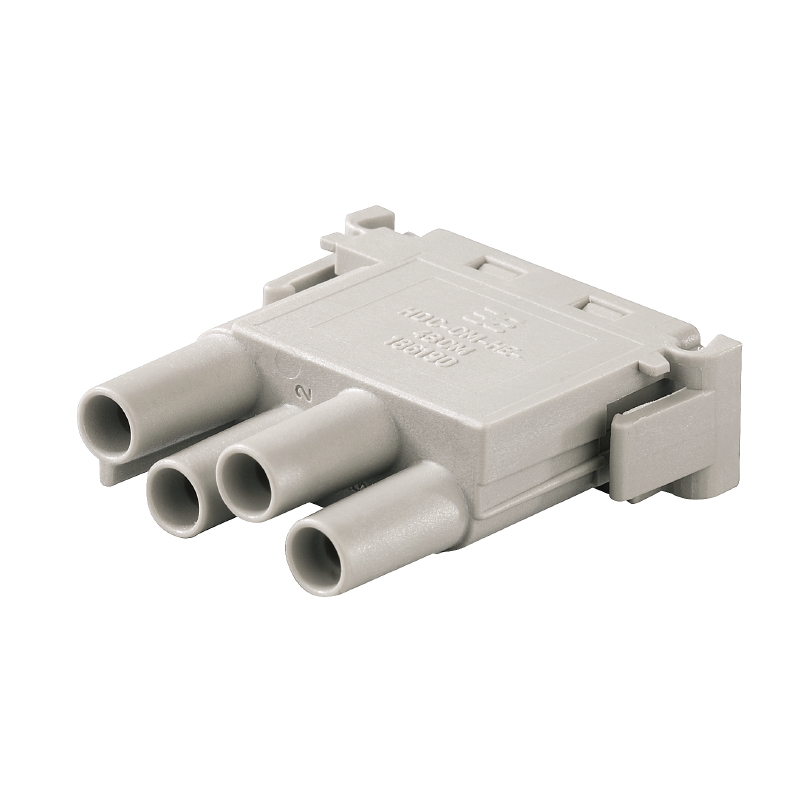

点击放大查看
1861900000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Housing M 4 POS 6.3mm Crimp ST CONN FEMALE INSERT 4POS CM-HE |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准编号 | 30-21-18-01 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 频率 | 27-44-05-15 | 电流比 | 25 A |
| 额定电压 | 630V | 极数 | 4 |
| 体积电阻 | ≤ 2mΩ | 额定直流电压 | 8 kV |
| 最大额定电流 | 25A | 绝缘电阻 | 1012 Ω |
| 最小磁芯截面积 (Amin) mm² | 0.5 mm² | ||
机械参数
| 间距 | 6.3 mm | 宽度 | 11.4 mm |
| 高度 | 38.5 mm | 长度 | 34 mm |
| 重量 | 8 g | 材料（通用） | Polycarbonate, glass fibre reinforced |
| 包装方式 | Bulk | 导线线规 | AWG 12 |
| 触头类型 | ConCept HE | 安装类型 | Straight |
| 电缆直径 | 4 mm² | 连接器类型 | Module without Contacts |
| 排数 | 2 | 宽度（英寸） | 0.449 inch |
| 高度（英寸） | 1.516 inch | 长度（英寸） | 1.339 inch |
| 剥线长度（范围） | 7.5 mm | 端接样式 | Crimp |
| 触点数 | 4 | 绝缘材料 - 类型 | PC glass-fibre reinforced (UL-listed and railway-certified) |
| 位数 | 4 | 总供货长度 | 34 mm |
| 线规或范围 - mm² | AWG 20 | ||
产品信息
| 类型 | Housing | 连接器性别 | M |
| 系列 | ConCept module | ETIM 6*0 | EC001121 |
| GTIN（EAN） | 4032248425044 | 描述 | Accessories, see chapter J - Tools, see chapter K |
| 图例（文字） | Combine this module with the HE crimp contacts. Crimp contacts should be ordered separately. | 连接类型 | Screw connection via module frame |
| 固件版本 | Heavy Duty Connectors, HDC insert, ConCept module | 其他规格 | III |
| 技术数据描述文本 | Rated voltage 1000 V / 8 kV at pollution severity level 2. For conductor cross-sections ≤ 0.75 mm², you must use wire-end ferrules at the connection to the PE conductor.When used properly and as designated, the listed connectors may not be connected or disconnected if voltage/load is present!When used in the metal frame, reduction of the voltage to 500 V / 6.0 kV must be noted! | ||
环境参数
| ET（伏秒积） | EC001121 | 防护等级 | 3 |
