点击放大查看

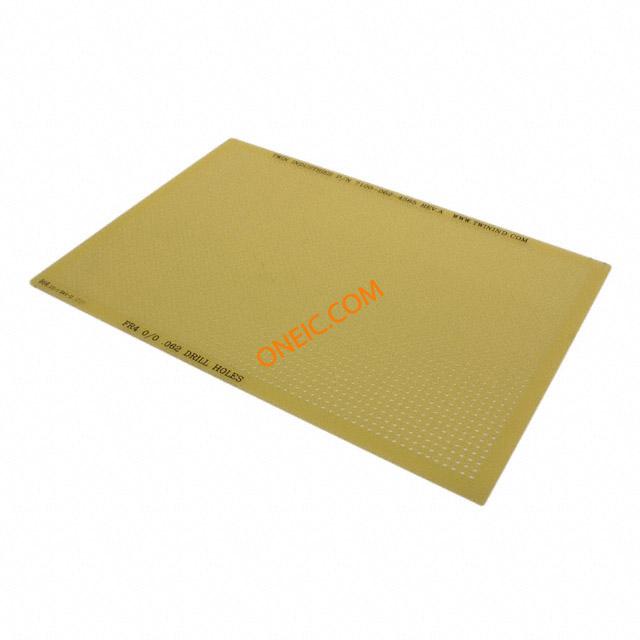

7100-062-4565
| 制造商 | Twin Industries |
| 描述 | PCBs & Breadboards .1 Grid .062 Holes 4.5X 6.5; FR4 PC BOARD 4.5"X6.5" UNCLAD 0.1" PCB, PROTOTYPE BOARD, UNCLAD, FR4 ProtoBoard.1Grid.062Holes4.5X6.5 |
| 分类 |
商业参数
| 产品 | Breadboards / Protoboards | 产品类别 | PCBs & Breadboards |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85340019 |
机械参数
| 尺寸 | 6.5"L×4.5"W | 间距 | 0.1" (2.54mm) Grid |
| 宽度 | 127 mm | 长度 | 101.6 mm |
| 重量 | 0.05 | 占位面积 | :- |
| 高度（最大） | :165.1mm | 孔径 | 0.042" (1.57mm) |
| 电路板厚度 | 0.062" (1.57mm) 1/16" | 本体材料 | :FR4 Epoxy Fibreglass |
| 触头材料 | Epoxy, Glass Reinforced | 尺寸/外形 | 6.50" L x 4.50" W (165.1mm x 114.3mm) |
| 安装孔直径 | 0.062" | ||
产品信息
| 类型 | Perforated | 功能 | Prototyping board |
| 架构类型 | Non-PTH | 原型板类型 | Breadboard, Prepunched Insulating |
