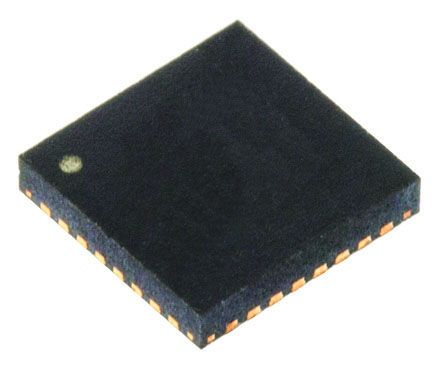

TUSB2046BIRHBT
| 制造商 | Texas Instruments Incorporated |
| 描述 | USB Transceiver 5TR 12Mbps 32-Pin VQFN EP T/R IC 4-PORT HUB FOR USB 32-QFN USB Interface IC 4-Port Full-Spd Univ Serial Bus Hub IC, USB HUB, 4-PORT, 32QFN 4-Port Full-Speed Universal Serial Bus Hub Texas Instruments USB 收发器, 12MBps, 5收发器, 3.3 V, 32针 QFN封装 |
| 分类 |
商业参数
| 产品 | USB 2.0 | 其他名称 | 296-27130-1 |
| 产品类别 | USB Interface IC | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 250 | 标准封装名称 | QFN |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 标准 | USB 1.0 |
| 海关税号 | 85423190 | 零件状态 | ACTIVE |
| 抗辐射加固 | No | ESD保护 | Yes |
电气参数
| 数据速率 | 12 Mbps | 接口 | USB |
| 输入功率 | Single | 输出电流 | 40mA |
| 供电电流 | 40 mA | 供电电压 | 3 V ~ 3.6 V |
| 供电类型 | Single | 最大额定电流 | Catalog |
| 最小供电电压 | 3 V | 电源电压范围（典型） | Not Required V |
| 共模瞬态抗扰度（最小） | Industrial | ||
机械参数
| 宽度 | 5.15(Max) | 重量 | 0.002533 oz |
| 包装方式 | Tape and Reel | 引脚样式 | No Lead |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :32 |
| 封装形式 | 32-VFQFN Exposed Pad | 冷却的封装 | VQFN EP |
| 材料表面处理 | :MSL 2 - 1 year | 总长度 | 5.15(Max) |
| 包装数量 | VQFN EP | 位数 | 32 |
| 外壳尺寸-插件 | 0.95(Max) | 供应商器件封装 | 32-VQFN (5x5) |
产品信息
| USB | :Hub | 系列 | TUSB2046B |
| 已删除 | Compliant | 功能 | Hub Controller |
| 协议 | USB | 软件 | SLLS413J |
| 基本单元 | :2046 | 架构 | N/A |
| 图案编号 | Y | 端口数 | :4 |
| 功能框图 | fbd_slls413j.gif | 射频系列/标准 | TUSB2046B |
| 使用的IC/零件 | View | 印刷电路板数量 | 32 |
| 发射器/接收器数量 | 5 | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40°C ~ 85°C |
| 结工作温度 | 85C | ||
文档与媒体
相关型号
SN75240P
texas instruments
ESD Suppressor TVS 15KV 8-Pin PDIP Rail ESD Suppressors Dual USB Port IC DUAL USB PORT TVS 8-DIP TVS Diode SN75240P, PDIP 8-Pin Dual USB Port Transient Suppressor Texas Instruments TVS 二极管, 8针 PDIP封装 TVS Diode Arrays Dual USB Port
SN75240PWR
texas instruments
ESD Suppressor TVS 15KV 8-Pin TSSOP T/R ESD Suppressors Dual USB Port IC DUAL USB PORT TVS 8-TSSOP USB TRANS SUPPRESSOR, SMD, 75240 Dual USB Port Transient Suppressor Logic IC Quad / Unidirectional / TVS TSSOP-8, SN75240, SN75240PWR, Texas Instruments TVS Diode Arrays Dual USB Port

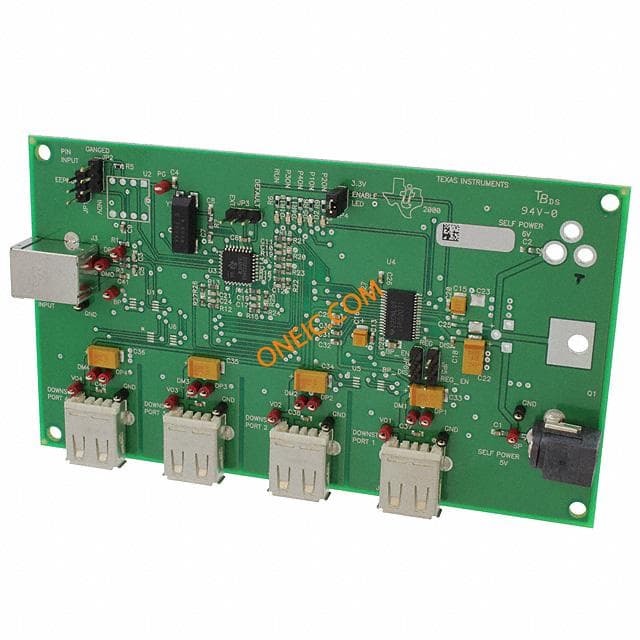

TPS2071EVM-159
