TPS79333DBVR
| 制造商 | Texas Instruments Incorporated |
| 描述 | LDO Regulator Pos 3.3V 0.2A 5-Pin SOT-23 T/R Low Dropout Regulators - LDO 200mA 3.3V Hi PSRR IC REG LDO 3.3V 0.2A SOT23-5 LDO Voltage Regulators 200mA 3.3V Hi PSRR IC, V REG, LINEAR, 0.2A, SOT-23-5 High PSRR, Low Noise, 200mA Single Output LDO, LDO voltage regulator 3.3 V SOT-23-5, TPS79333, TPS79333DBVR, Texas Instruments Texas Instruments , LDO 调节器, 200mA, 3.3 V输出 ±2%, 2.7 → 5.5 V输入, 0.56W, 5针 SOT-23封装 |
| 分类 |
商业参数
| 其他名称 | 296-12961-2 | 产品类别 | Low Dropout Regulators - LDO |
| 标准包装数量 | Cut Tape, Tape & Reel | 工厂包装数量 | 3000 |
| 标准封装名称 | SOT-23 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 电源抑制比 | 44 | 噪声 | 32 |
| 输出端 | 1 | 精度 | ±2 % |
| 输出类型 | Fixed | 额定功率 | 560 W |
| 稳压器类型 | Linear | 额定电压 | 2.7 V |
| 电源调整率 | 0.05(Typ) %/V | 负载调整率 | 5(Typ) mV |
| 输出电流 | 0.2 A | 供电电压 | 0.102@200mA V |
| 输出数量 | 1 | 稳压器拓扑 | Positive Fixed |
| 电容 @ Vr, F | Ceramic | 最大额定电流 | Catalog |
| 稳压器数量 | 1 | 最小输入电压 | 5.5 V |
| 输出电压精度 | �2 % | 最大功耗 | 560 mW |
| 静态电流 (Iq) | 0.17 | 直流输入电压（最小） | 2.7 V |
| 静态电流（最大） | 285mA | 电压负载调整率 | 2 % |
| 输入偏置电流（最大） | 0.17 mA | 最大持续工作电压（MCOV） | :5.5V |
机械参数
| 宽度 | 1.75(Max) | 重量 | 0.000459 oz |
| 包装方式 | Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :5 |
| 封装形式 | 5SOT-23 | 冷却的封装 | SOT-23 |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 3.05(Max) |
| 包装数量 | SOT-23 | 位数 | 5 |
| 外壳尺寸-插件 | 1.3(Max) | 供应商器件封装 | SOT-23-5 |
产品信息
| 类型 | Linear | 系列 | TPS79333 |
| 产品特性 | Current Limit|Excellent Line and ... | 极性 | Positive |
| 软件 | SGLS163B | 拓扑 | LDO |
| 图案编号 | Y | 输出及类型 | Adjustable Output Fixed Output |
| 使用的IC/零件 | View | 输出配置 | 1.8 2.5 2.8 2.85 3 3.3 4.75 |
| 印刷电路板数量 | 5 | ||
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 150 °C |
文档与媒体
相关型号
TPS79333DBVRG4
texas instruments
LDO Regulator Pos 3.3V 0.2A 5-Pin SOT-23 T/R Low Dropout Regulators - LDO High PSRR Fast RF High-Enable 200mA IC REG LDO 3.3V 0.2A SOT23-5 TPS79333DBVRG4, Low Dropout Voltage Regulator, 0.2A, 3.3V ±2%, 2.7 to 5.5Vin, 0.56W, 5-Pin SOT-23 LDO Voltage Regulators High PSRR Fast RF High-Enable 200mA IC, V REG, LDO, SMD, SOT23-5 High PSRR, Low Noise, 200mA Single Output LDO,
TPS793285YEQEVM
texas instruments
Evaluation Module For TPS793285 Power Management IC Development Tools TPS793285YEQ Eval Mod EVAL MODULE FOR TPS793285YEQ
TLV320AIC3101IRHBT
texas instruments
Audio Codec 2ADC / 2DAC 24-Bit 32-Pin VQFN EP T/R IC STER AUD CODEC 24 BIT 32-VQFN Interface - CODECs 6 In & Out Speaker & Headph Amp Low-Power Stereo Codec with 6 Inputs, 6 Outputs, Speaker/HP Amp and Enhanced Digital Effects 立体声通道 96ksps 24bit 通用 音视频编码器和解码器 IC, 串行2线、串行I2C接口, 32针 VQFN封装
744728
Wurth Electronics
Inductor Kits & Accessories TI Design Kit DESIGN KIT INDUCTORS FOR TI Wurth Elektronik Power Inductor Inductor Design Kit, 176 Pieces DESIGN-KIT SMD-POWER CHOKES FOR TI Wurth Elektronik 176件 电感器套件, 套件包含功率电感器
TPS79330YEQEVM
texas instruments
Evaluation Module For TPS79330 Power Management IC Development Tools TPS79330 Eval Mod EVAL MODULE FOR TPS79330YEQ

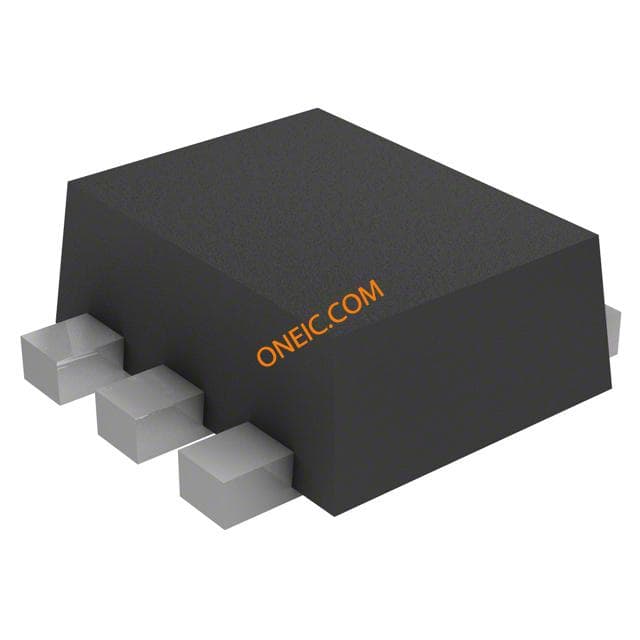

TMP112AIDRLT
