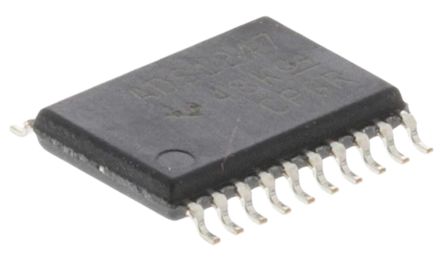

ADS1247IPW

制造商	Texas Instruments Incorporated
描述	ADC Single Delta-Sigma 2ksps 24-bit Serial 20-Pin TSSOP Tube Analog to Digital Converters - ADC Low Noise,Prec 24B ADC Single ADC Delta-Sigma 2ksps 24-bit Serial 20-Pin TSSOP Tube IC ADC 24BIT DEL/SIG LN 20TSSOP ADS1247IPW, 24-Bit Analogue to Digital Converter, Differential, SPI, 20-Pin TSSOP 24BIT ADC, LN, DELTA SIGMA, 20TSSOP IC, ADC, 24BIT, 2KSPS, TSSOP-20 Low Noise, Precision 24-Bit Analog-to-Digital Converter A/D converter IC 24 Bit TSSOP-20, ADS1247IPW, Texas Instruments Texas Instruments , 24 位 ADC, 差分输入, SPI接口, 20针 TSSOP封装
分类	集成电路数据转换器模数转换器

对参数有疑问？问 AI 助手

商业参数

其他名称	296-24293-5	产品类别	Analog to Digital Converters - ADC
标准包装数量	Rail / Tube	工厂包装数量	70
标准封装名称	TSSOP

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85423190
零件状态	ACTIVE

电气参数

接口	Serial (SPI)	输入类型	Voltage
分辨率	24 Bit	输入信号	Single-Ended\|Differential
INL/DNL（LSB）	15ppm	转换器类型	Temperature Measurement
数据接口	Serial, SPI™	输入极性	Bipolar
位数	24	基准类型	Ext Int
额定电压	±2.048V	数据速率（最大）	2 KSPs
输出电流	:230µA	输入数量	3
供电电压	2.7 V to 5.25 V	分辨率（位）	:24bit
电压基准	Internal, External	通道数量	2
采样频率	2 ksps	模拟输入/输出	5.25
最大额定电流	Catalog	ADC/DAC 数量	1
供电电源	Single\|Dual	平均正向功率	2.3
最大功耗	2.56 mW	差分非线性	±1LSB
数字供电电压	:2.7V to 5.25V	内部供电电压	:-2.5V to 0V, 2.7V to 5.25V
采样率（每秒）	2k	差分 - 输入:输出	Yes
信噪比，ADC/DAC（dB）典型值	Yes

机械参数

宽度	4.4mm	高度	1.15mm
长度	6.5mm	重量	0.002716 oz
包装方式	Tube	引脚样式	Gull-wing
端接方式	:SMD	安装类型	Surface Mount
安装样式	SMD/SMT	引脚数	:20
封装形式	20TSSOP	冷却的封装	TSSOP
材料表面处理	:MSL 2 - 1 year	总长度	6.6(Max)
包装数量	TSSOP	尺寸/外形	6.5 x 4.4 x 1.15mm
位数	20	外壳尺寸-插件	1.05(Max)
供应商器件封装	20-TSSOP

产品信息

系列	ADS1247	软件	SBAS426G
基本单元	:1247	架构	Delta-Sigma
图案编号	Y	功能框图	alt_sbas426g.gif
使用的IC/零件	View	印刷电路板数量	20
A/D转换器数量	3\|2	输入数量及类型	3 Single-Ended, Unipolar; 3 Single-Ended, Bipolar; 2 Differential, Unipolar; 2 Differential, Bipolar

环境参数

测试温度

-40 to 105

工作温度

+ 125 C

文档与媒体

PDF 文档

ADS1246-48

PDF 文档

1762825.pdf
