TPS51218EVM-496
| 制造商 | Texas Instruments Incorporated |
| 描述 | TPS51218EVM-496 Power Management IC Development Tools Step Down Converter Eval Mod EVALUATION MODULE WITH 20-ADC STEADY-STATE CURRENT EVAL MODULE FOR TPS51218 TPS5121, STEP DOWN CONV, EVAL MOD |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | RoHS Not Applicable | 海关税号 | 85423190 |
电气参数
| 额定电压 | 8 V to 14 V | 输出电流 | 0 ~ 20A |
| 元件数量 | :TPS51218 | 稳压器拓扑 | Buck |
| 开关频率 | 380kHz | 最小输入电压 | 1.2V |
机械参数
| 重量 | 0.45 | 电路板厚度 | Fully Populated |
产品信息
| 类型 | DC/DC Converters, Regulators & Controllers | 内容 | Board |
| 产品特性 | http://download.siliconexpert.com/pdfs/2013/3/20/12/57/51/369/txn_/manua... | 套件类型 | :Power Management - Voltage Regulator |
| 技术 | DC to DC Controller | 套件内容 | :Board |
| 主要用途 | DC/DC, Step Down | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | TPS51218 | 使用的IC/零件 | TPS51218 |
| 芯片组制造商 | :Texas Instruments | 应用细节 | :Step Down DC / DC Converter |
| 支持MCU系列 | :TPS51218 | ||
文档与媒体
相关型号
CSD16321Q5
texas instruments
Trans MOSFET N-CH 25V 31A 8-Pin SON T/R MOSFET N-CH 25V 100A 8-SON MOSFET N-Channel NexFET Power MOSFET MOSFET, N CH, 25V, 100A, 8SON N-Channel NexFET™ Power MOSFET Texas Instruments , N沟道 MOSFET 晶体管, 100 A, Vds=25 V, 8针 SON封装
TPS51218DSCR
texas instruments
DC DC Cntrlr Single-OUT Sync Step Down 3V to 28V Input 10-Pin WSON EP T/R DC/DC Switching Controllers 3-28V In,20A Synch Step Down Cntrlr IC REG CTRLR BUCK PWM 10WSON Switching Controllers 3-28V In,20A Synch Step Down Cntrlr 3V to 28V Input. 20A Synchronous Step Down Controller with DCAP™ Mode for Notebook Power Supply
TPS51218DSCT
texas instruments
DC DC Cntrlr Single-OUT Sync Step Down 3V to 28V Input 10-Pin WSON EP T/R IC REG CTRLR BUCK PWM 10WSON Switching Controllers 3-28V In,20A Synch Step Down Cntrlr DC DC Cntrlr Single-OUT Sync Step Down 3V to 28V 10-Pin SON EP T/R DC/DC CONTROLLER, 3 TO 28V, 10SON 3V to 28V Input. 20A Synchronous Step Down Controller with DCAP™ Mode for Notebook Power Supply 1输出 直流-直流控制器, 20A, 28 V, 降压, 465 kHz, 10引脚 WSON封装

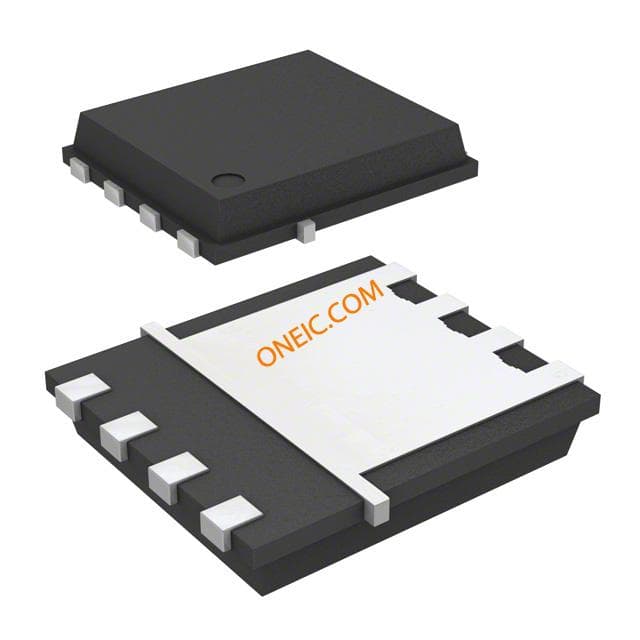

CSD16404Q5A
