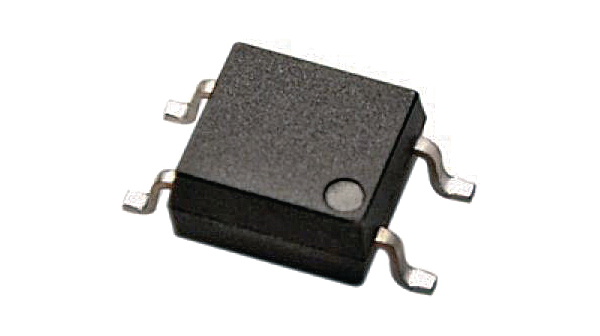

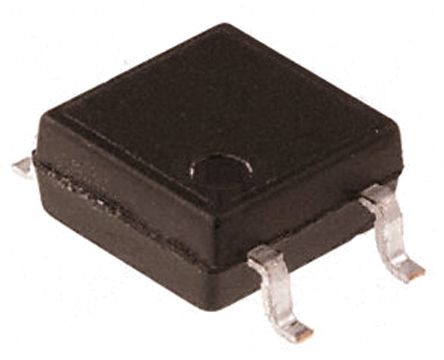

TPD2E001DZDR
| 制造商 | Texas Instruments Incorporated |
| 描述 | ESD Suppressor Diode Arrays ±15KV 4-Pin SOP T/R ESD Suppressors Lo-Cap 2Ch +/-15kV ESD-Protection Array TVS DIODE 5.5VWM 100VC 4SOP ESD Suppressor Diode Arrays ?15KV 4-Pin SOP T/R ESD PROTECTION ARRAY, 2CH, SOP-4 IC, INTERFACE, ESD, 5.5V, SOP-4 Low-Capacitance 2-Channel +/-15 kV ESD-Protection Array for High-Speed Data Interfaces TVS diode SOP-4, TPD2E001, TPD2E001DZDR, Texas Instruments Texas Instruments 单向 ESD 保护阵列, 100V, 4针 SOP封装 TVS Diode Arrays Lo-Cap 2Ch +/-15kV ESD-Protection Array |
| 分类 |
商业参数
| 其他名称 | 296-24770-1 | 产品类别 | ESD Suppressors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 3000 |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
| ESD保护 | ±15@Air Gap/±8@Contact Disc/±15@HBM | ||
电气参数
| 通道数 | 2 Channels | 接口 | :USB |
| 电容 | 1.5(Typ) pF | 供电电压 | 5.5V (Max) |
| 漏电流 | 0.001uA | 通道数量 | 2 |
| 元件数量 | 2 | 钳位电压 | 105.5 V |
| 输入电容值 | 1.5 | 击穿电压 | 11 V |
| 最大额定电流 | Catalog | 电源线保护 | Yes |
| 双向通道数 | 2 | 反向漏电流 @ Vr | 0.001 uA |
| 漏电流（IS(off)）（最大） | 1 | ||
机械参数
| 深度 | 1.4 mm | 宽度 | 1.3 |
| 高度 | 1.07 mm | 重量 | 0.000009 |
| 包装方式 | Reel | 公共引脚 | 8 |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 安装样式 | Surface Mount | 引脚数 | :4 |
| 封装形式 | SOP-4 | 冷却的封装 | SOP |
| 锁定特性 | Diode Arrays | 材料表面处理 | :MSL 1 - Unlimited |
| 总长度 | 3.04 mm | 包装数量 | SOP |
| 端接样式 | Solder Pad | 位数 | 4 |
| 外壳尺寸-插件 | 1 | 供应商器件封装 | 4-SOP |
产品信息
| 类型 | Diode Arrays | 系列 | TPD2E001 |
| 产品特性 | :- | 功能 | :2-Channel ESD Protection Array for High-Speed Data Interface |
| 极性 | Uni-Directional | 软件 | SLLS684H |
| 应用领域 | :Ethernet, Video, Cell Phones, SVGA Video Connections, Glucose Meters, Medical Imaging | 应用 | Ethernet |
| 配置 | Dual | 图案编号 | Y |
| 端口方向 | Uni-Directional | 功能框图 | fbd_slls684h.gif |
| 使用的IC/零件 | View | 印刷电路板数量 | 4 |
环境参数
| 空气流量 - 中 | 15 | 测试温度 | -40 to 85 |
| 工作温度 | -40 °C | 结工作温度 | 85C |
文档与媒体
