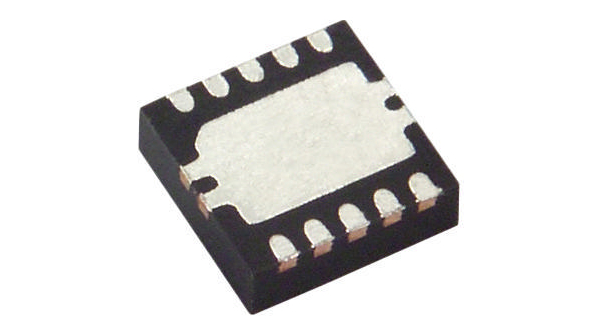

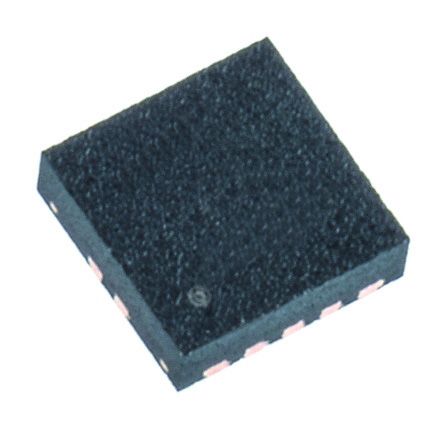

TPS63031DSKT
| 制造商 | Texas Instruments Incorporated |
| 描述 | Conv DC-DC Single Non-Inv/Inv/Step Up/Step Down 1.8V to 5.5V 10-Pin WSON EP T/R IC REG BUCK BST SYNC 0.8A 10SON Voltage Regulators - Switching Regulators Hi Eff Sgl Inductor Buck-Boost Conv IC, BUCK-BOOST CONVERTER, SON-10 IC, DC DC CONV, 1A, 10SON DC-DC converter; step up/down; Uin:1.8÷5.5V; Uout:3.3V; 500mA High Efficient Single Inductor Buck-Boost Converter with 1-A Switches DC/DC Converter IC 3.3 VDC SON-10, TPS63031, TPS63031DSKT, Texas Instruments , 降压/升压稳压器, 0.8A, 3.267 → 3.333 V, 2400 kHz, 10针 SON封装 Switching Voltage Regulators Hi Eff Sgl Inductor Buck-Boost Conv |
| 分类 |
商业参数
| 其他名称 | 296-23904-2 | 产品类别 | Voltage Regulators - Switching Regulators |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 250 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423990 | 零件状态 | ACTIVE |
| 抗辐射加固 | No | ||
电气参数
| PWM类型 | Current Mode | 频率 | :2400kHz |
| 效率 | 96(Typ) % | 输出类型 | Fixed |
| 稳压器类型 | :Boost-Buck | 额定电压 | 3.3 V |
| 开通延迟时间 | Fixed | 电源调整率 | 0.5% |
| 负载调整率 | 0.5 % | 输出电流 | 0.8 A |
| 供电电压 | 1.8 to 5.5 V | 输出数量 | 1 |
| 开关电流 | 0.8 | 开关稳压器 | Yes |
| 隔离电压 | Not Required V | 最大额定电流 | Catalog |
| 开关频率 | 2400 kHz | 同步整流 | Yes |
| 最小输入电压 | 3.3V | 静态电流 (Iq) | 0.025 |
| 直流输入电压（最小） | 1.8 V | 关态电流（最大） | 0.1 |
机械参数
| 重量 | 0 | 包装方式 | Tape & Reel (TR) |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :10 |
| 封装形式 | 10WSON EP | 冷却的封装 | WSON EP |
| 材料表面处理 | :MSL 1 - Unlimited | 包装数量 | 250 |
| 位数 | 10 | 供应商器件封装 | 10-SON (2.5x2.5) |
产品信息
| SPG | 250 | 类型 | Non-Inverting|Inverting|Step Up|Step Down |
| 系列 | TPS63031 | 产品特性 | Enable Frequency Synchronization Light Load Efficiency Load Disconnect |
| 软件 | SLVS696B | 拓扑 | Buck-Boost |
| 应用领域 | Consumer & Portable Electronics | 控制方式 | Current Mode |
| 单元数量 | 1 | 功能框图 | alt_slvs696b.gif |
| 使用的IC/零件 | step up/down | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
文档与媒体
