TMS320F28027PTS
| 制造商 | Texas Instruments Incorporated |
| 描述 | MCU 32-bit C2000 C28x RISC 64KB Flash 3.3V 48-Pin LQFP Tray Digital Signal Processors & Controllers - DSP, DSC Piccolo Microcntrlr IC MCU 32BIT 64KB FLASH 48LQFP 32-bit Microcontrollers - MCU Piccolo Microcntrlr MCU, 32BIT, PICCOLO, 60MHZ, LQFP-48 Piccolo Microcontroller |
| 分类 |
商业参数
| 商标名 | Piccolo | 产品类别 | Digital Signal Processors & Controllers - DSP, DSC |
| 标准包装数量 | Tape & Reel, Trays | 工厂包装数量 | 250 |
| 标准封装名称 | QFP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 认证机构 | No |
电气参数
| GPIO | 20 22 | 转速 | 60 MHz |
| 定时器 | 3 32-Bit GP 1 WD | RAM 大小 | 12 KB |
| 内核大小 | 32-Bit | 核心类型 | C28x |
| 频率 | 60 | 接口 | I2C/SCI/SPI |
| 时钟速率 | 60 MHz | 存储器容量 | 12 KB |
| I/O 数量 | 22 | 位数 | 12 |
| 额定电压 | 2.97 | 看门狗定时器 | 1 |
| 时钟频率 | :60MHz | 数据转换器 | A/D 13x12b |
| 振荡器类型 | Internal | 串行协议 | 1 |
| 供电电压 | 3.3 V | 通道数量 | 7 |
| 模拟输入/输出 | 12-Bit | 程序存储器大小 | 64 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 13 |
| 最小供电电压 | 3.63 | 每元件位数 | 12 bit |
| 供电电压 (Vcc/Vdd) | 1.71 V ~ 1.995 V | 峰值脉冲电流（8/20µs） | 60 |
机械参数
| 宽度 | 7.2(Max) | 重量 | 0.00027 |
| 包装方式 | Tray | 引脚样式 | Gull-wing |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :48 | 封装形式 | 48LQFP |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 7.2(Max) |
| 包装数量 | LQFP | 位数 | 48 |
| 外壳尺寸-插件 | 1.45(Max) | 供应商器件封装 | 48-LQFP (7x7) |
| 核心数/总线宽度 | 32 Bit | 脉冲宽度失真（最大） | 8 |
产品信息
| SPI | 1 | 系列 | TMS320F2x |
| 功能 | C28x | 协议 | 1 |
| 软件 | SPRS523J | 闪存大小 | 64 |
| 片内RAM（通道数×位宽） | 13-chx12-bit | 外设 | Brown-out Detect/Reset, POR, PWM, WDT |
| 架构 | RISC | 连接性 | I²C, SCI, SPI, UART/USART |
| 核心处理器 | C28x | 图案编号 | Y |
| 定时器数量 | 3 | 控制器系列 | :Piccolo - TMS320F280xx |
| 功能框图 | fbd_sprs523j.gif | 射频系列/标准 | C2000 |
| 使用的IC/零件 | View | DigiKey可编程 | Yes |
| 印刷电路板数量 | 48 | ||
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 125 °C |
文档与媒体
相关型号
TMDSHVPSFBKIT
texas instruments
HV Phase Shifted Full Bridge Developer's Kit Power Management IC Development Tools HV Phase Shifted Full Bridge Dev Kit KIT DEV HV PHASE SHFTD FULL BRDG F28027, FULL BRIDGE, DEV KIT
TMDSPLCKIT-V3
texas instruments
C2000 Power Line Modem Developers Kit Development Boards & Kits - TMS320 C2000 Power Line Modem Dev Kit KIT DEV C2000 PWR LINE MODEM C2000, POWER LINE MODEM, DEV KIT
TMDSADP1414-ISO
texas instruments
Adaptive Clocking JTag Emulator Adapters Sockets & Adapters Adap Clocking JTAG Emulator Adapters ADAPTER FOR JTAG EMULATOR ADAPTER, XDS510 & XDS560 JTAG EMULATOR Texas Instruments 隔离 JTAG 仿真接口 适配器板
TMDSPLCMODA-P3X
Texas Instruments
Development Boards & Kits - COLDFIRE C2000 Pwr Line Comm Add-on Kit C2000 Power Line Communications Add-On Kit KIT ADD-ON C2000 LED Lighting Development Tools C2000 Pwr Line Comm Add-on Kit TMS320F28035, PWR LINE, EVAL KIT
TMDSIACLEDCOMKIT
Texas Instruments
Development Boards & Kits - COLDFIRE C2000 LED Kit Development Kit For LED Illumination Designs KIT C2000 PICCOLO LED Lighting Development Tools C2000 LED Kit PICCOLO, C2000, LED LIGHTING, KIT
TMDSHVPFCKIT
texas instruments
High Voltage Pfc Developer S Kit Power Management IC Development Tools Hi Vltg PFC Dev Kit KIT DEV HV PFC PICCOLO, TMS320F28027, PFC, DEV KIT
TMDSCNCD28027
texas instruments

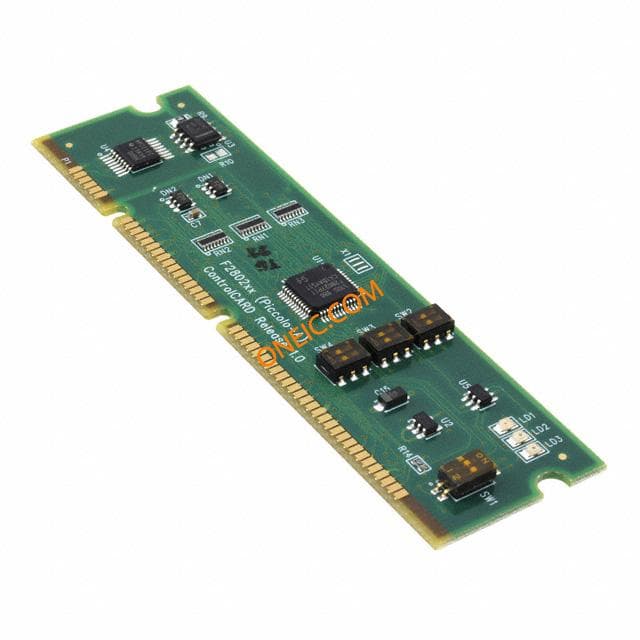

TMDSCNCD28027 Daughter Cards & OEM Boards Piccolo controlCARD PICCOLO CONTROLCARD CONTROL CARD PICCOLO F28027 TMDSCNCD28027, Development Kit, 32 bit, C2000 Piccolo Control Card For Oems To Use For Initial Software Development CONTROLCARD MODULE, TMS320F28027 MCU Texas Instruments 32 位 MCU 微控制器开发套件
TMDS28027USB
texas instruments

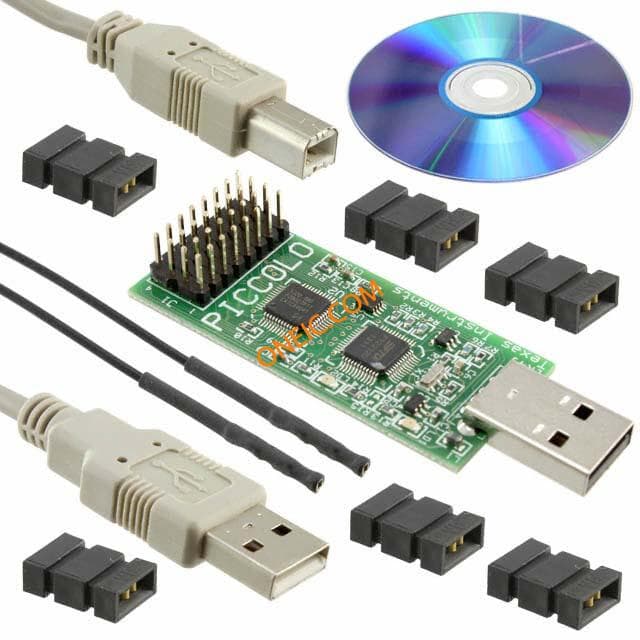

TMDS28027USB Piccolo Control Stick Piccolo Controlstick Of TI Piccolo Microcontroller USB CONTROLSTICK EVAL TOOL Emulators / Simulators TMX320F28027 Piccolo controlSTICK PICCOLO controlSTICK
TMDSHVBLPFCKIT
texas instruments
HV Bridgeless PFC Developer's Kit Power Management IC Development Tools HV Bridgeless PFC Dev Kit KIT C2000 HV FULL BRIDGE PICCOLO, TMS320F28027, PFC, DEV KIT
TMDSHVRESLLCKIT
texas instruments
HV Resonant LLC Developers Kit Power Management IC Development Tools HV Resonant LLC Dev Kit KIT DEV HV RESONANT TMS320F28027, JTAG EMULATOR, DEV KIT
LAUNCHXL-F28027
Texas Instruments

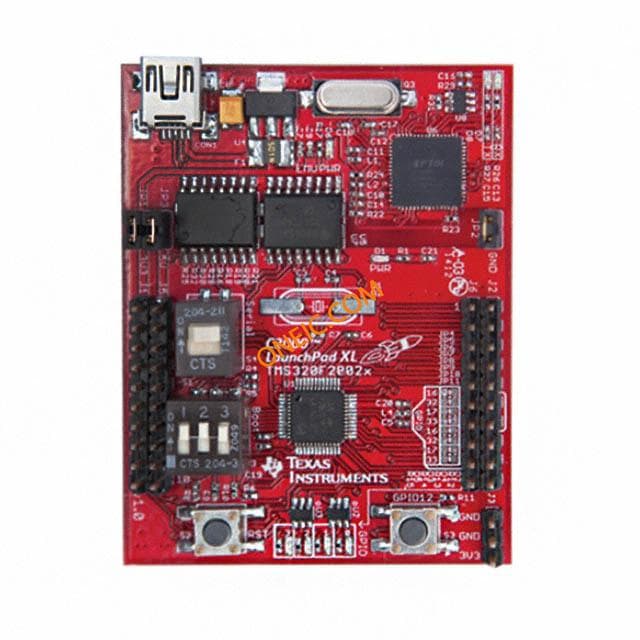

LAUNCH PAD PICCOLO C2000 Development Boards & Kits - TMS320 C2000PiccloLaunchPad C2000 Piccolo LaunchPad Evaluation kit C2000 PICCOLO LAUNCHPAD C2000, PICCOLO, LAUNCHPAD, EVAL BOARD Texas Instruments JTAG 微处理器开发套件
