点击放大查看

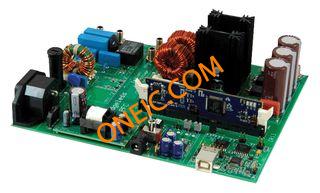

TMDSHVBLPFCKIT
| 制造商 | Texas Instruments Incorporated |
| 描述 | HV Bridgeless PFC Developer's Kit Power Management IC Development Tools HV Bridgeless PFC Dev Kit KIT C2000 HV FULL BRIDGE PICCOLO, TMS320F28027, PFC, DEV KIT |
| 分类 |
商业参数
| 产品 | Power Management Development Tools | 其他名称 | 296-28548 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Boxed |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Supplier Unconfirmed | 海关税号 | 85423190 |
电气参数
| 核心类型 | :C2000 | 接口 | JTAG, USB |
| 位数 | :32 bit | 额定输出功率 | 300W |
| 额定电压 | 390 V | 元件数量 | :TMS320F28035 |
| 最小输入电压 | 390V | ||
机械参数
| 重量 | 0.3 | 电路板厚度 | Fully Populated |
产品信息
| 类型 | Development Tool | 内容 | 2 Boards |
| 产品特性 | More Literature http://www.ti.com/lit/ml/sprt605/sprt605.pdf http://www.ti.com/lit/ml/sprugq0/sprugq0.pdf White Papers http://www.ti.com/lit/wp/spry205/spry205.pdf | 技术 | Microcontroller |
| 套件内容 | :HV Bridgeless PFC Development Kit, Software Installation CD, TMDSCNCD28035 Control Card | 主要用途 | AC/DC, Primary Side and PFC |
| 制造商全称 | :Piccolo - TMS320F280xx | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | TMS320F280x | 使用的IC/零件 | TMS320F28027 |
| 芯片组制造商 | :Texas Instruments | 支持MCU系列 | :F28035 |
文档与媒体
