点击放大查看

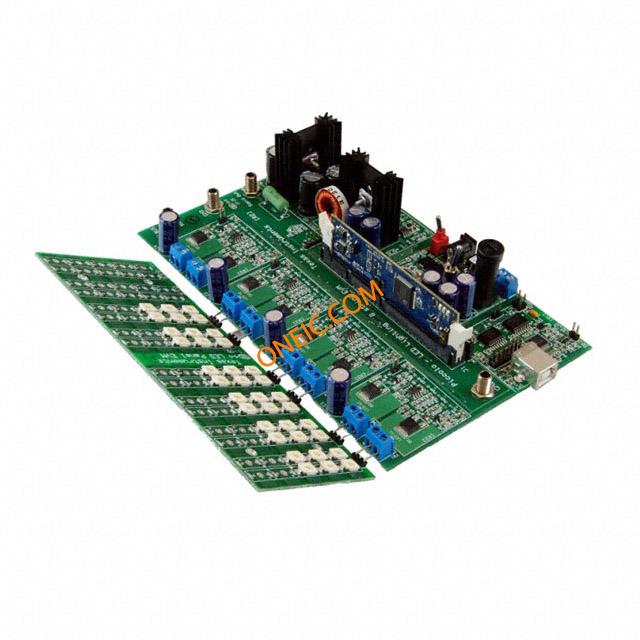

TMDSDCDCLEDKIT
| 制造商 | Texas Instruments Incorporated |
| 描述 | Development Kit For LED Illumination Designs Development Boards & Kits - TMS320 DC/DC LED Dev Kit KIT LED DVR C2000 PICCOLO C2000, SEPIC, LED LIGHTING, DEV KIT |
| 分类 |
商业参数
| 产品 | Developer Kits | 其他名称 | 296-27528 |
| 产品类别 | Development Boards & Kits - TMS320 | 标准包装数量 | Boxed |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | No | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | TMS320C28x | 接口 | USB |
| 供电电压 | 12 V to 48 V | 元件数量 | :TMS320F28 |
机械参数
| 重量 | 4.08 | 核心数/总线宽度 | 32 bit |
产品信息
| 类型 | Development Kit | 内容 | Board, Piccolo control Card, LED Panel. Cables, CD, Power Adapter, USB Drive |
| 嵌入式 | Yes, MCU, 32-Bit | 套件内容 | :- |
| 主要用途 | Reference Design, Embedded LED Lighting | 制造商全称 | :Piccolo - TMS320F280xx |
| 工具类型/特性 | TMS320F28035 | 主要特性 | Dimmable |
| 使用的IC/零件 | TMS320F28035 | 芯片组制造商 | :Texas Instruments |
| 次要特性 | Graphic User Interface | 支持MCU系列 | :Piccolo |
