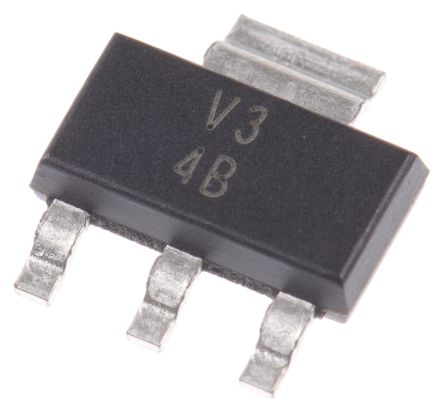

TLV1117-33CDCY
| 制造商 | Texas Instruments Incorporated |
| 描述 | LDO Regulator Pos 3.3V 0.8A 4-Pin(3+Tab) SOT-223 Tube IC REG LDO 3.3V 0.8A SOT223 TLV1117-33CDCY, Low Dropout Voltage Regulator, 0.8A, 3.3V, 4.7 to 15Vin, 4-Pin SOT-223 LDO Voltage Regulators Fixed LDO Volt Reg V REG, LDO, 3.3V, 0.8A, SOT-223-4 Single Output LDO, 800mA, Fixed(3.3), Internal Current limit, Thermal Overload Protection LDO voltage regulator 3.23...3.36 V SOT-223-4, TLV1117, TLV1117-33CDCY, Texas Instruments Texas Instruments , LDO 调节器, 800mA, 3.3 V输出, 4.7 → 15 V输入, 3 + Tab针 SOT-223封装 |
| 分类 |
商业参数
| 产品类别 | LDO Voltage Regulators | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 80 | 标准封装名称 | SOT-223 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85366910 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 电源抑制比 | 28 | 输出端 | 1 |
| 精度 | :2.5% | 输出类型 | Fixed |
| 稳压器类型 | Linear | 额定电压 | 4.7 V |
| 电源调整率 | 0.2 % | 负载调整率 | 0.4 % |
| 输出电流 | 0.8 A | 供电电压 | 1.1@100mA|1.15@500mA|1.2@800mA V |
| 输出数量 | 1 | 稳压器拓扑 | Positive Fixed |
| 电容 @ Vr, F | Non-Ceramic | 最大额定电流 | Catalog |
| 稳压器数量 | 1 | 最小输入电压 | 3.3V |
| 最小供电电压 | :0.2% | 静态电流 (Iq) | 5mA |
| 直流输入电压（最小） | 4.7 V | 静态电流（最大） | 10 mA |
| 输入偏置电流（最大） | 5 mA | 最大持续工作电压（MCOV） | :15V |
机械参数
| 宽度 | 3.5mm | 高度 | 1.6mm |
| 长度 | 6.5mm | 重量 | 0.001 |
| 包装方式 | Tube | 插片宽度 | Tab |
| 引脚样式 | Gull-wing | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :3 | 封装形式 | 4SOT-223 |
| 冷却的封装 | SOT-223 | 材料表面处理 | :MSL 2 - 1 year |
| 总长度 | 6.7(Max) | 包装数量 | SOT-223 |
| 尺寸/外形 | 6.5 x 3.5 x 1.6mm | 位数 | 4 |
| 外壳尺寸-插件 | 1.7(Max) | 供应商器件封装 | SOT-223 |
产品信息
| 类型 | Linear | 系列 | TLV1117-33 |
| 已删除 | Compliant | 产品特性 | Current Limit|Thermal Protection |
| 极性 | Positive | 软件 | SLVS561L |
| 拓扑 | LDO | 基本单元 | :1117 |
| 图案编号 | Y | 输出及类型 | Fixed Output |
| 功能框图 | alt_slvs561l.gif | 使用的IC/零件 | View |
