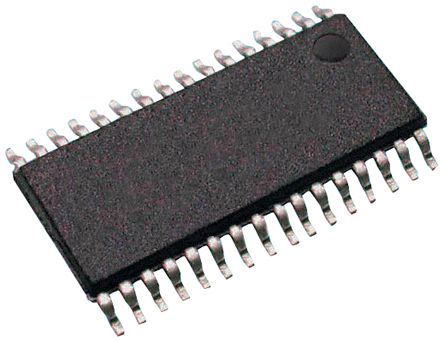

TLC5923DAP
| 制造商 | Texas Instruments Incorporated |
| 描述 | LED DRVR 16Segment 3.3V/5V 32-Pin HTSSOP EP Tube LED Display Drivers 16 Ch LED Driver w/Dot Correction IC LED DRIVER LINEAR 32HTSSOP IC, LED DRIVER, 16CH 16-Channel LED Driver w/DOT Correction 16段 LED 驱动器, 3.3 V、5 V, 32引脚 HTSSOP封装 |
| 分类 |
商业参数
| 其他名称 | 296-17731-5 | 产品类别 | LED Display Drivers |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 46 |
| 标准封装名称 | TSSOP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 调光方式 | :Analogue | 频率 | 30MHz |
| 显示类型 | :LED | 输入信号 | Serial |
| 额定功率 | 3.9 W | 额定电压 | :17V |
| 数据速率（最大） | 30 | 输出电流 | 65000 mA |
| 供电电流 | 65 mA | 供电电压 | 3 to 5.5 V |
| 输出数量 | 16 | LED正向电压 | 17 |
| 最大额定电流 | Catalog | 开关频率 | :30MHz |
| 最小输入电压 | 17V | 最小供电电压 | 3 V |
| 最大功耗 | 3900 mW | 输出电流/通道 | 80 |
| 输出高/低电流 | -1000 uA | 最大恒流负载 | Yes |
| 电源电流（禁用）（最大） | 128 | 通道间匹配（DeltaRon） | 1 |
| 最大持续工作电压（MCOV） | :5.5V | ||
机械参数
| 宽度 | 6.2(Max) | 重量 | 0.006388 oz |
| 包装方式 | Tube | 封装体颜色 | :HTSSOP |
| 引脚样式 | Gull-wing | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :32 | 封装形式 | 32HTSSOP EP |
| 冷却的封装 | HTSSOP EP | 材料表面处理 | :MSL 3 - 168 hours |
| 总长度 | 11.1(Max) | 包装数量 | HTSSOP EP |
| 位数 | 32 | 外壳尺寸-插件 | 1.05(Max) |
| 供应商器件封装 | 32-HTSSOP | ||
产品信息
| 类型 | Color | 系列 | TLC5923 |
| 已删除 | Compliant | 产品特性 | Fault Reporting LED Open Detection Power Good/Error Flag |
| 软件 | SLVS550B | 拓扑 | Linear |
| 基本单元 | :5923 | 字符格式 | :LED |
| 控制接口 | :Serial 3 Wire | 功能框图 | alt_slvs550b.gif |
| 段数 | 16 | 使用的IC/零件 | View |
| 内部连接 | Yes | 每电路通道数 | 16 |
| 应用细节 | :Display Backlighting | 印刷电路板数量 | 32 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | + 85 C |
| 结工作温度 | 85C | ||
文档与媒体
相关型号
TLC5917IPW
texas instruments
LED DRVR 8Segment 3.3V/5V 16-Pin TSSOP Tube LED Lighting Drivers 8B Constant-Current LED Sink IC LED DRIVER LINEAR 16-TSSOP TLC5917IPW, LED Driver 8-Segments, 3.3, 5V, 16-Pin TSSOP IC, LED DRIVER LINEAR 16-TSSOP 8-Bit Constant-Current LED Sink Driver 8段 LED 驱动器, 3.3 V、5 V, 16引脚 TSSOP封装
TLC5916IN
texas instruments
LED DRVR 8Segment 3.3V/5V 16-Pin PDIP Tube LED Lighting Drivers 8B Constant-Current LED Sink Driver IC LED DRIVER LINEAR 16-DIP IC, LED DRIVER, 8CH, PDIP16 8-Bit Constant-Current LED Sink Driver 8段 LED 驱动器, 3 → 5.5 V, 16引脚 PDIP封装
TLC5923DAPG4
texas instruments
LED DRVR 16Segment 3.3V/5V 32-Pin HTSSOP EP Tube LED Display Drivers 16 Ch LED Driver w/Dot Correction IC LED DRIVER LINEAR 32HTSSOP TLC5923DAPG4, LED Driver 16-Segments, 3.3, 5V, 32-Pin HTSSOP EP IC, 16CH LED DRIVER, SMD, TSSOP32 16-Channel LED Driver w/DOT Correction

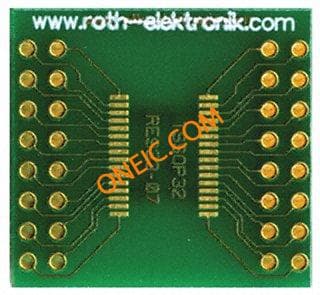

RE933-07
