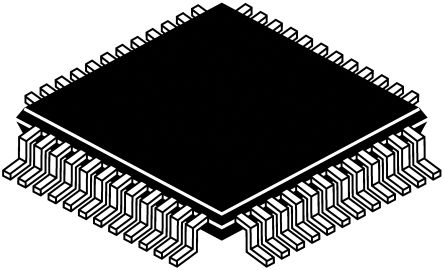

点击放大查看
SRC4392IPFB
| 制造商 | Texas Instruments Incorporated |
| 描述 | Sample Rate Converter 48-Pin TQFP Tray IC SAMPLE RATE CONV 2CH 48-TQFP RF and IF Transmitters and Receivers Dig SAMPLE RATE CONVERTER, 2CH, 48TQFP High-end Combo Sample Rate Converter 24 位 216ksps 采样率转换器, 48针 TQFP封装 Audio Sample Rate Converters Sample Rate Converter |
| 分类 |
商业参数
| 标准包装数量 | Trays | 标准封装名称 | QFP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85437090 |
| 零件状态 | ACTIVE | ||
电气参数
| 通道数 | 2 | 输入信号 | AES/EBU S/PDIF |
| NTC热敏电阻 | -140 | 输入数量 | S/PDIF |
| 供电电压 | :1.65V to 3.6V | 供电类型 | 1.8 3.3 |
| 通道数量 | :2 | 采样频率 | 216 |
| 最大额定电流 | Catalog | 数字供电电压 | 1.65 - 1.95 3 - 3.6 |
| 动态范围，ADC/DAC（dB）典型值 | 144 | ||
机械参数
| 宽度 | 7.2(Max) | 重量 | 0.002 |
| 包装方式 | Tray | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 引脚数 | :48 | 封装形式 | 48TQFP |
| 材料表面处理 | :MSL 2 - 1 year | 总长度 | 7.2(Max) |
| 包装数量 | TQFP | 位数 | 48 |
| 外壳尺寸-插件 | 1.05(Max) | 过程侧连接 | :Digital Audio Interface, Digital Audio Recorders and Mixing Desks, Digital Audio Routers |
| 供应商器件封装 | 48-TQFP (7x7) | ||
产品信息
| 类型 | Sample Rate Converter | 软件 | SBFS029D |
| 基本单元 | :4392 | 数据格式 | Normal I2S |
| 应用 | Interfaces, Recorders, Routers | 控制方式 | SW (SPI) H/W |
| 图案编号 | Y | 控制器类型 | :Sample Rate Converter |
| 控制接口 | :Serial | 射频系列/标准 | SRC4392 |
| 使用的IC/零件 | View | 印刷电路板数量 | 48 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
